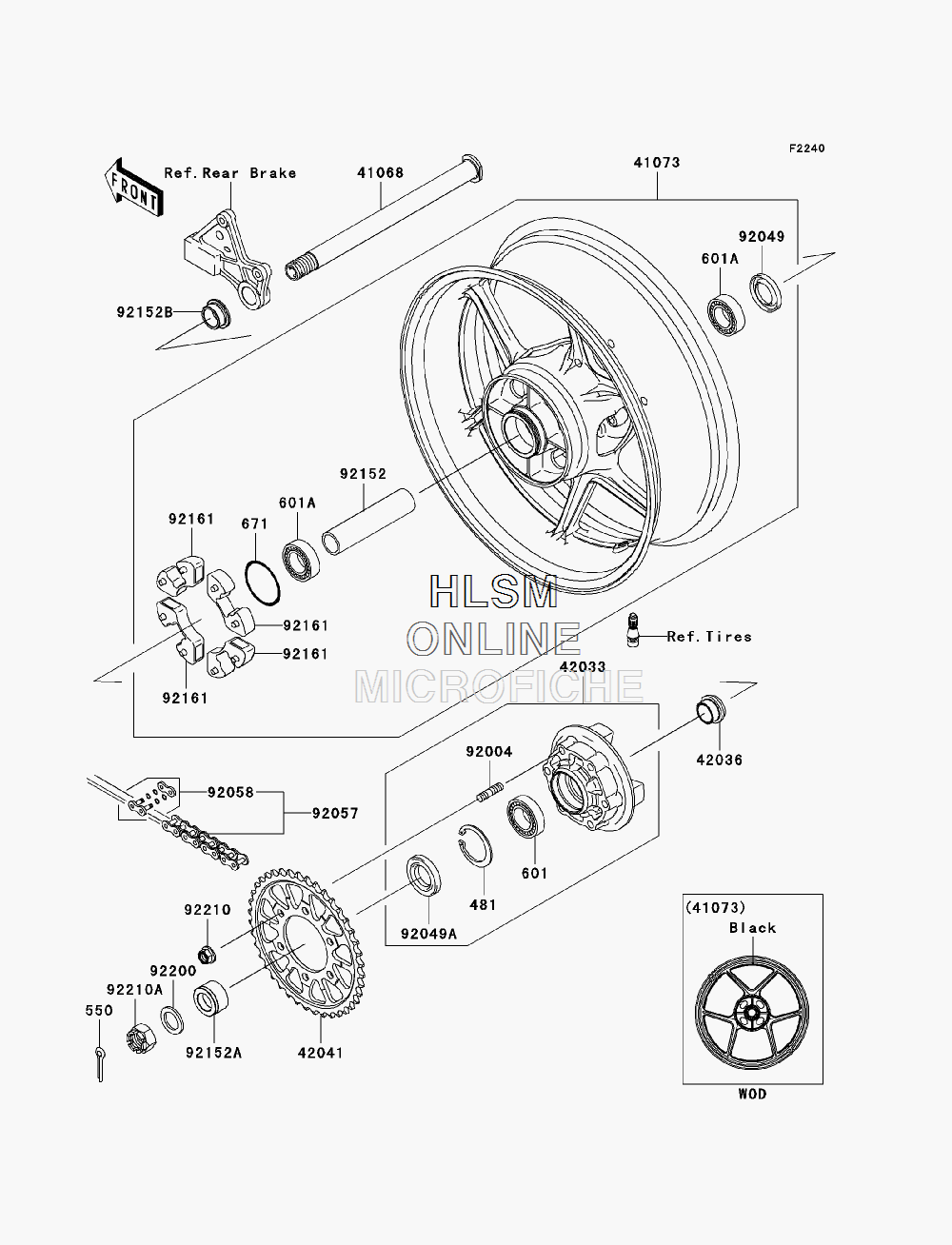

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-6R (ZX600RCF) - 2012 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550AA4040 PIN-COTTER,4.0X40PIN-COTTER,4.0X40
-
601601B6006G BEARING-BALL,#6006GBEARING-BALL,#6006G
-
601A601B6205UU BEARING-BALLBEARING-BALL
-
671671B2560 O RING,60MMO RING,60MM
-
4106841068-0035 AXLE, REARAXLE, REAR
-
4107341073-0106-18F WHEEL-ASSY, REAR,BLACKWHEEL-ASSY, REAR,BLACK
-
4203342033-0026 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB,L=22SLEEVE, REAR HUB,L=22
-
4204142041-0094 SPROCKET-HUB,43TSPROCKET-HUB,43T
-
9200492004-0028 STUD,10X19STUD,10X19
-
9204992049-1375 SEAL-OIL, REAR HUBSEAL-OIL, REAR HUB
-
92049A92049-1376 SEAL-OIL,PJN 40 55 8SEAL-OIL,PJN 40 55 8
-
9205792057-0174 CHAIN,DRIVE,EK520MVXL2X112LCHAIN,DRIVE,EK520MVXL2X112L
-
9205892058-0021 JOINT-CHAIN,DRIVEJOINT-CHAIN,DRIVE
-
9215292152-0214 COLLAR, REAR HUB,L=137COLLAR, REAR HUB,L=137
-
92152A92152-0543 COLLAR, REAR HUB, LEFT HAND,L=23.5COLLAR, REAR HUB, LEFT HAND,L=23.5
-
92152B92152-0544 COLLAR, REAR HUB, RIGHT HAND,L=16COLLAR, REAR HUB, RIGHT HAND,L=16
-
9216192161-0342 DAMPER,SHOCK, REAR HUBDAMPER,SHOCK, REAR HUB
-
9220092200-0278 WASHER,25.5X38X3.2WASHER,25.5X38X3.2
-
9221092210-0276 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-0280 NUT,CASTLE,24MMNUT,CASTLE,24MM
