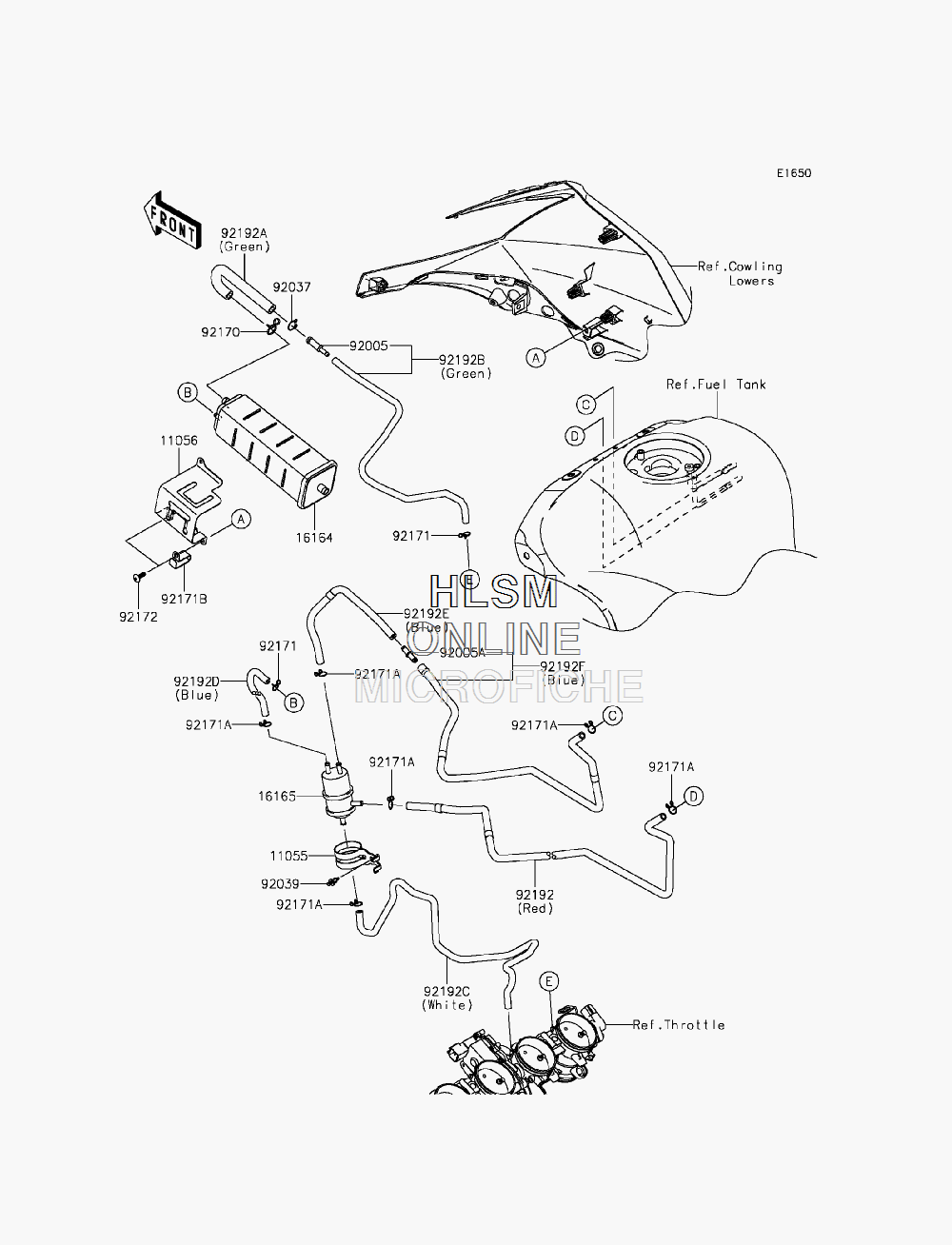

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-10R (ZX1000JFF) - 2015 года выпуска
-
№АртикулНазвание
-
1105511055-1173 BRACKET,SEPARATOR (CALIF. ONLY)BRACKET,SEPARATOR (CALIF. ONLY)
-
1105611056-0194 BRACKET,CANISTER (CALIF. ONLY)BRACKET,CANISTER (CALIF. ONLY)
-
1616416164-0009 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9200592005-0032 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
92005A92005-0721 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1271 CLAMP,12.5MM (CALIF. ONLY)CLAMP,12.5MM (CALIF. ONLY)
-
9203992039-0068 RIVET (CALIF. ONLY)RIVET (CALIF. ONLY)
-
9217092170-1695 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217192171-0576 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-0718 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171B92171-0911 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217292172-0238 SCREW,TAPPING,5X16 (CALIF. ONLY)SCREW,TAPPING,5X16 (CALIF. ONLY)
-
9219292192-0895 TUBE,5X10X940, (RED) (CALIF. ONLY)TUBE,5X10X940, (RED) (CALIF. ONLY)
-
92192A92192-0896 TUBE,FITTING-CANISTER,(GREEN) (CALIF. ONLY)TUBE,FITTING-CANISTER,(GREEN) (CALIF. ONLY)
-
92192B92192-0897 TUBE,FITTING-THROBO,(GREEN) (CALIF. ONLY)TUBE,FITTING-THROBO,(GREEN) (CALIF. ONLY)
-
92192C92192-0898 TUBE,SEPARATOR-THROBO,(WHITE) (CALIF. ONLY)TUBE,SEPARATOR-THROBO,(WHITE) (CALIF. ONLY)
-
92192D92192-0989 TUBE,CANISTER-SEPARATOR,(BLUE) (CALIF. ONLY)TUBE,CANISTER-SEPARATOR,(BLUE) (CALIF. ONLY)
-
92192E92192-0990 TUBE,5X10X720,(BLUE) (CALIF. ONLY)TUBE,5X10X720,(BLUE) (CALIF. ONLY)
-
92192F92192-0991 TUBE,TANK-SEPARATOR,(BLUE) (CALIF. ONLY)TUBE,TANK-SEPARATOR,(BLUE) (CALIF. ONLY)
