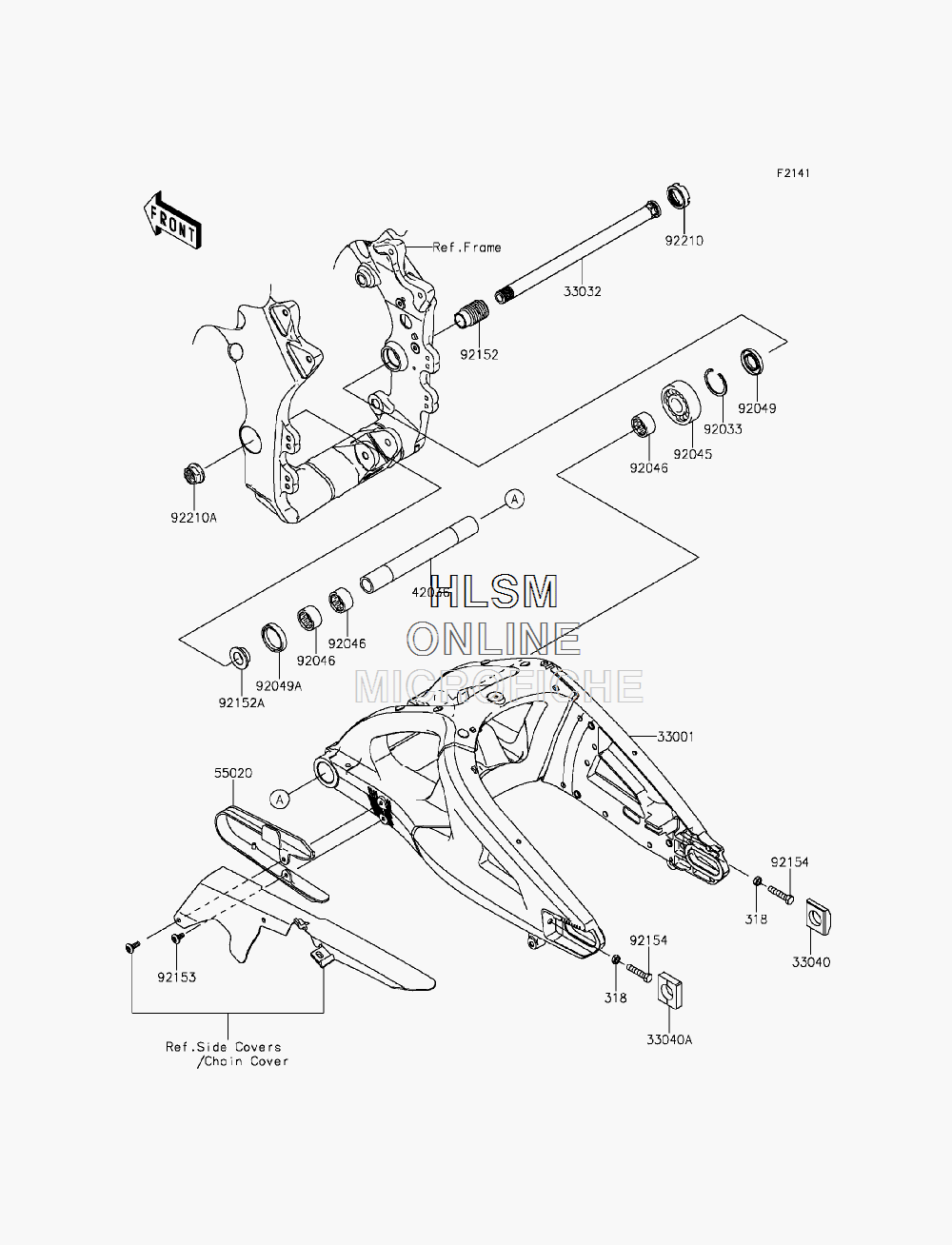

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-10R (ZX1000JFF) - 2015 года выпуска
-
№АртикулНазвание
-
318318BB0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
3300133001-0227-18R ARM-COMP-SWING,(F.S.BLACK)ARM-COMP-SWING,(F.S.BLACK)
-
3303233032-0013 SHAFT-SWINGARMSHAFT-SWINGARM
-
3304033040-0027 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
33040A33040-1114 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
4203642036-1341 SLEEVE,SWINGARM PIVOT,L=226SLEEVE,SWINGARM PIVOT,L=226
-
5502055020-0561 GUARD,CHAINGUARD,CHAIN
-
9203392033-1041 RING-SNAP,42MMRING-SNAP,42MM
-
9204592045-0017 BEARING-BALL,6004UL11BEARING-BALL,6004UL11
-
9204692046-0008 BEARING-NEEDLE,7E-HVS 28X34X17BEARING-NEEDLE,7E-HVS 28X34X17
-
9204992049-1314 SEAL-OIL,MHSA25X42X6SEAL-OIL,MHSA25X42X6
-
92049A92049-1352 SEAL-OIL,MHSA25X34X7SEAL-OIL,MHSA25X34X7
-
9215292152-0154 COLLAR,SWINGARM,L=47COLLAR,SWINGARM,L=47
-
92152A92152-1234 COLLAR,SWINGARM,L=12.5COLLAR,SWINGARM,L=12.5
-
9215392153-0422 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
9215492154-0736 BOLT,FLANGED,8X60BOLT,FLANGED,8X60
-
9221092210-0134 NUT,30MMNUT,30MM
-
92210A92210-0320 NUT,FLANGED,20MMNUT,FLANGED,20MM
