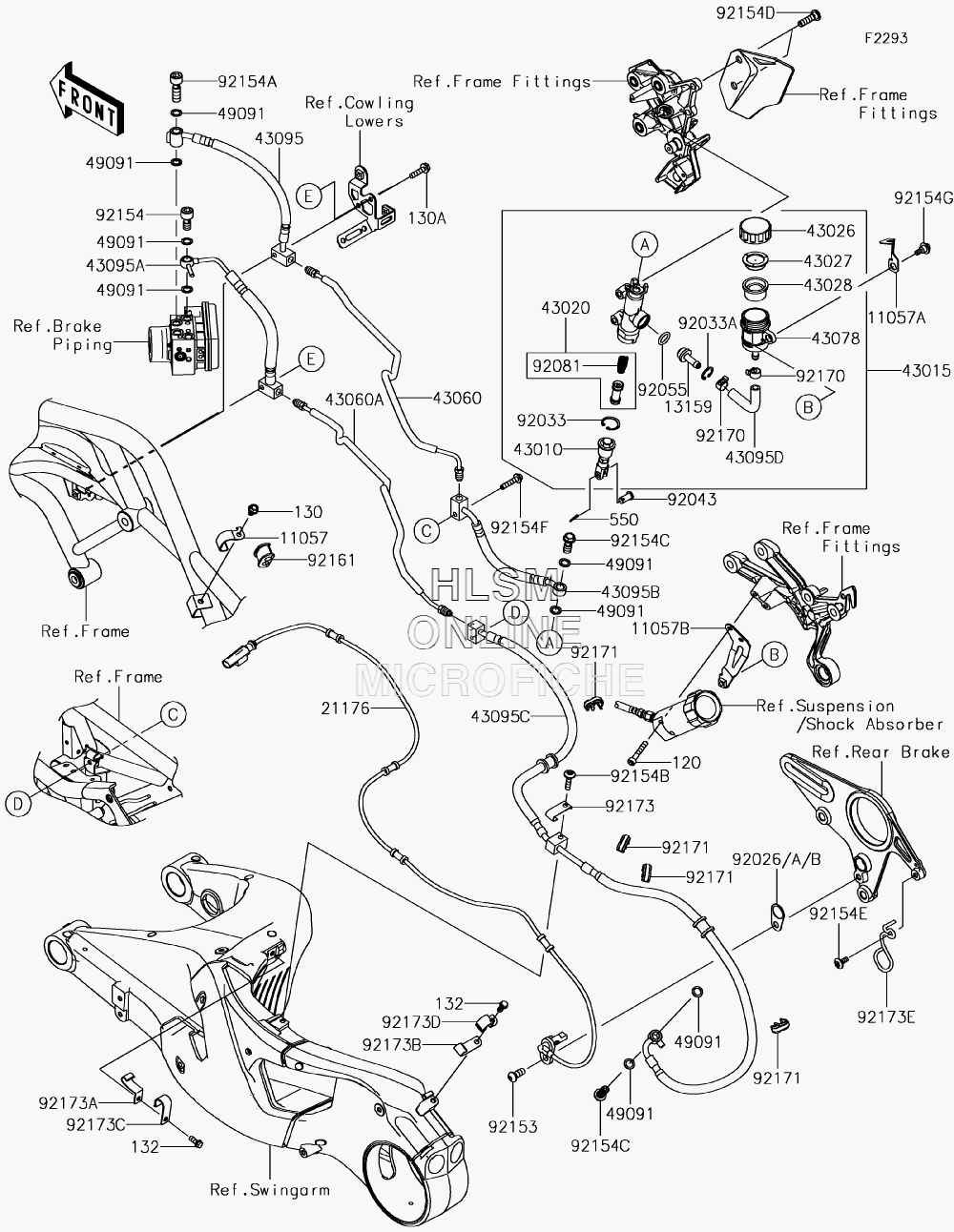

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA H2 SX (ZX1002AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1105711057-0419 BRACKET, BRAKE PIPEBRACKET, BRAKE PIPE
-
11057A11057-1315 BRACKET, CAPBRACKET, CAP
-
11057B11057-1472 BRACKET, REAR RESERVOIR TANKBRACKET, REAR RESERVOIR TANK
-
120120CB0635 BOLT-SOCKET, 6X35BOLT-SOCKET, 6X35
-
130130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
1315913159-1065 CONNECTORCONNECTOR
-
132132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
2117621176-0869 SENSOR, SPEED, REARSENSOR, SPEED, REAR
-
4301043010-0023 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0673 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4306043060-0333 PIPE-BRAKE, JOINT CONNECT, M/CPIPE-BRAKE, JOINT CONNECT, M/C
-
43060A43060-0334 PIPE-BRAKE, JOINT CONNECT, CALPIPE-BRAKE, JOINT CONNECT, CAL
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-1502 HOSE-BRAKE, HU-FRONT JOINT(M/C)HOSE-BRAKE, HU-FRONT JOINT(M/C)
-
43095A43095-1503 HOSE-BRAKE, HU-FRONT JOINT(CAL)HOSE-BRAKE, HU-FRONT JOINT(CAL)
-
43095B43095-1511 HOSE-BRAKE, REAR M/CYL-REAR JOINTHOSE-BRAKE, REAR M/CYL-REAR JOINT
-
43095C43095-1514 HOSE-BRAKE, REAR JOINT-REAR CALIPERHOSE-BRAKE, REAR JOINT-REAR CALIPER
-
43095D43095-1518 HOSE-BRAKE, REAR CALIPERHOSE-BRAKE, REAR CALIPER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9202692026-0789 SPACER, REAR SENSOR, T0.5SPACER, REAR SENSOR, T0.5
-
92026A92026-0790 SPACER, REAR SENSOR, T1.0SPACER, REAR SENSOR, T1.0
-
92026B92026-0791 SPACER, REAR SENSOR, T1.5SPACER, REAR SENSOR, T1.5
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215392153-0912 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215492154-1121 BOLT, BANJO, 10X20.8BOLT, BANJO, 10X20.8
-
92154A92154-1122 BOLT, BANJO, 10X32.3BOLT, BANJO, 10X32.3
-
92154B92154-1532 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154C92154-1712 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
92154D92154-1723 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92154E92154-1735 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154F92154-1736 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92154G92154-2836 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216192161-1894 DAMPER, BRAKE PIPEDAMPER, BRAKE PIPE
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-1819 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9217392173-1378 CLAMP, SWINGARM, MIDCLAMP, SWINGARM, MID
-
92173A92173-1379 CLAMP, SWINGARM, FRONT, LOWERCLAMP, SWINGARM, FRONT, LOWER
-
92173B92173-1380 CLAMP, SWINGARM, REAR, LOWERCLAMP, SWINGARM, REAR, LOWER
-
92173C92173-1382 CLAMP, SWINGARM, FRONT, UPPERCLAMP, SWINGARM, FRONT, UPPER
-
92173D92173-1383 CLAMP, SWINGARM, REAR, UPPERCLAMP, SWINGARM, REAR, UPPER
-
92173E92173-1384 CLAMP, REAR BRAKE HOLDERCLAMP, REAR BRAKE HOLDER
