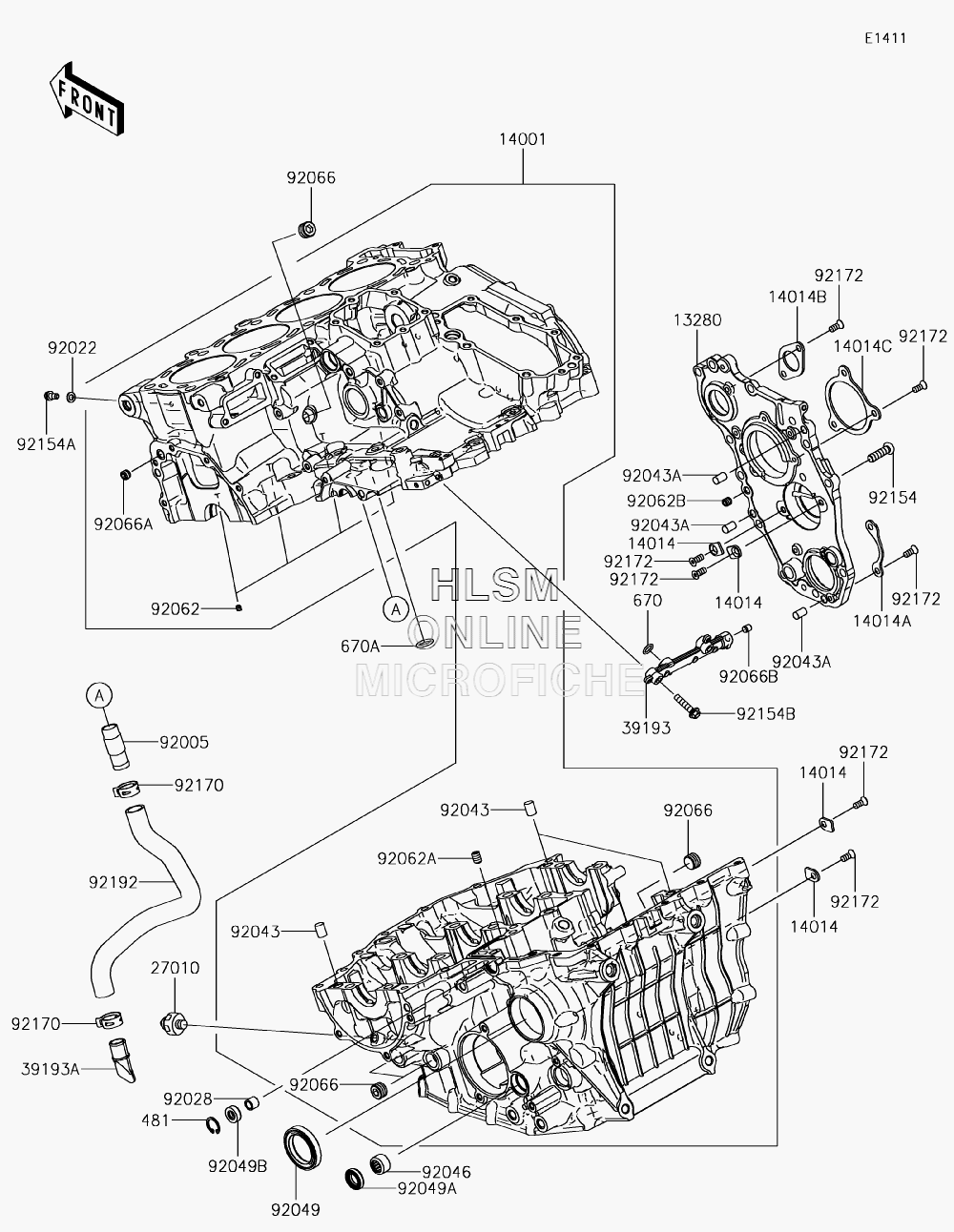

CRANKCASE для Kawasaki NINJA H2 SX (ZX1002AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1328013280-0799 HOLDER, TRANSMISSIONHOLDER, TRANSMISSION
-
1400114001-0680 SET-CRANKCASESET-CRANKCASE
-
1401414014-0569 PLATE-POSITIONPLATE-POSITION
-
14014A14014-0571 PLATE-POSITION, CHANGE DRUMPLATE-POSITION, CHANGE DRUM
-
14014B14014-0572 PLATE-POSITION, COUNTER SHAFTPLATE-POSITION, COUNTER SHAFT
-
14014C14014-0575 PLATE-POSITIONPLATE-POSITION
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3919339193-0581 PIPE-OILPIPE-OIL
-
39193A39193-0582 PIPE-OILPIPE-OIL
-
481481J1800 CIRCLIP-TYPE-C, 18MMCIRCLIP-TYPE-C, 18MM
-
670670B1510 O RING, 9.8X1.9O RING, 9.8X1.9
-
670A670D2015 O RING, 15MMO RING, 15MM
-
9200592005-0773 FITTINGFITTING
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202892028-1750 BUSHING, 8X12X10BUSHING, 8X12X10
-
9204392043-1506 PIN, 10X14PIN, 10X14
-
92043A92043-1567 PIN, 8X14PIN, 8X14
-
9204692046-0043 BEARING-NEEDLE, HK1412FMBEARING-NEEDLE, HK1412FM
-
9204992049-1452 SEAL-OIL, TC 35X50X8SEAL-OIL, TC 35X50X8
-
92049A92049-1520 SEAL-OIL, TC14245SEAL-OIL, TC14245
-
92049B92049-1566 SEAL-OILSEAL-OIL
-
9206292062-0004 NOZZLENOZZLE
-
92062A92062-0031 NOZZLENOZZLE
-
92062B92062-0032 NOZZLENOZZLE
-
9206692066-0831 PLUGPLUG
-
92066A92066-0876 PLUG, PT1/8X7PLUG, PT1/8X7
-
92066B92066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
9215492154-0415 BOLT, TORX, 8X28BOLT, TORX, 8X28
-
92154A92154-1453 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
92154B92154-1845 BOLT, FLANGED, 6X28BOLT, FLANGED, 6X28
-
9217092170-1640 CLAMPCLAMP
-
9217292172-0906 SCREW, TORX, 6X14SCREW, TORX, 6X14
-
9219292192-1437 TUBE, BREATHER DRAINTUBE, BREATHER DRAIN
