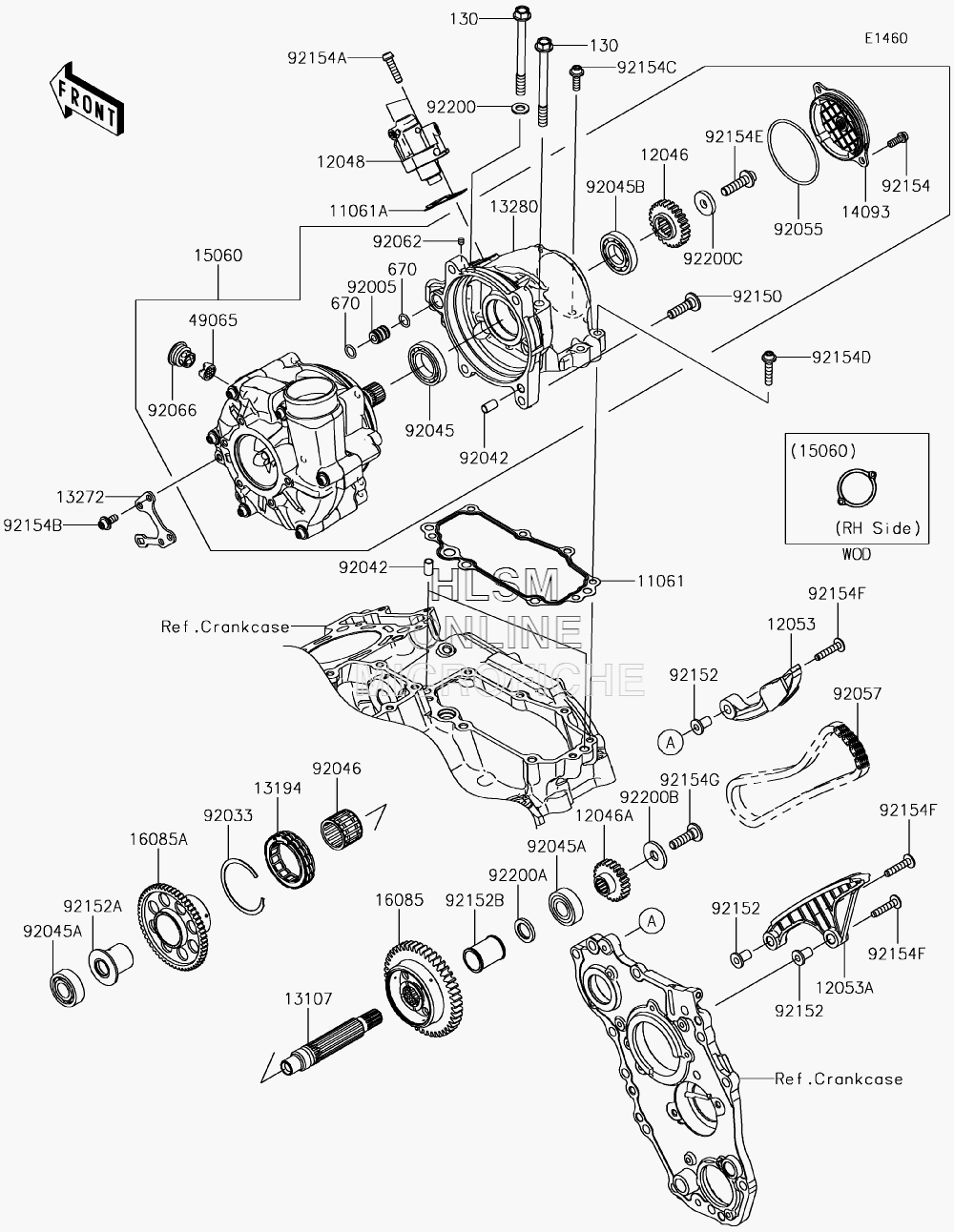

SUPER CHARGER для Kawasaki NINJA H2 SX (ZX1002AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0948 GASKET, HOLDERGASKET, HOLDER
-
11061A11061-1279 GASKET, TENSIONERGASKET, TENSIONER
-
1204612046-0584 SPROCKET, DRIVEN, 25TSPROCKET, DRIVEN, 25T
-
12046A12046-0604 SPROCKET, DRIVE, 22TSPROCKET, DRIVE, 22T
-
1204812048-0108 TENSIONER-ASSYTENSIONER-ASSY
-
1205312053-0249 GUIDE-CHAIN, UPPERGUIDE-CHAIN, UPPER
-
12053A12053-0250 GUIDE-CHAIN, LOWERGUIDE-CHAIN, LOWER
-
130130CC0890 BOLT-FLANGED, 8X90BOLT-FLANGED, 8X90
-
1310713107-0863 SHAFTSHAFT
-
1319413194-0017 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1327213272-1849 PLATEPLATE
-
1328013280-0917 HOLDERHOLDER
-
1409314093-0131 COVERCOVER
-
1506015060-0006 COMPRESSOR-ASSYCOMPRESSOR-ASSY
-
1608516085-0670 GEAR, BALANCER, 46TGEAR, BALANCER, 46T
-
16085A16085-0671 GEAR, STARTER, 56TGEAR, STARTER, 56T
-
4906549065-0041 FILTER-OILFILTER-OIL
-
670670D1510 O RING, 10MMO RING, 10MM
-
9200592005-0769 FITTING, OIL LINEFITTING, OIL LINE
-
9203392033-3731 RING-SNAPRING-SNAP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-036 BEARING-BALL, #6905BEARING-BALL, #6905
-
92045A92045-0785 BEARING-BALL, 6202ZC3BEARING-BALL, 6202ZC3
-
92045B92045-1404 BEARING-BALLBEARING-BALL
-
9204692046-0622 BEARING-NEEDLE, 22X32X24BEARING-NEEDLE, 22X32X24
-
9205592055-0790 RING-O, 2.4X62.6RING-O, 2.4X62.6
-
9205792057-0633 CHAIN, 98XRIGHT HAND2020-78N2CHAIN, 98XRIGHT HAND2020-78N2
-
9206292062-0004 NOZZLENOZZLE
-
9206692066-0821 PLUGPLUG
-
9215092150-1728 BOLT, 8X30BOLT, 8X30
-
9215292152-1939 COLLARCOLLAR
-
92152A92152-1993 COLLARCOLLAR
-
92152B92152-2405 COLLARCOLLAR
-
9215492154-1454 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92154A92154-1458 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154B92154-1460 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154C92154-1667 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92154D92154-1668 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92154E92154-1679 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92154F92154-2824 BOLTBOLT
-
92154G92154-2825 BOLTBOLT
-
9220092200-0047 WASHER, 8.2X16X1.6WASHER, 8.2X16X1.6
-
92200A92200-1799 WASHER, 15.2X24X3WASHER, 15.2X24X3
-
92200B92200-1935 WASHER, 10.2X30X3WASHER, 10.2X30X3
-
92200C92200-3811 WASHER, 8.5X24X4.0WASHER, 8.5X24X4.0
