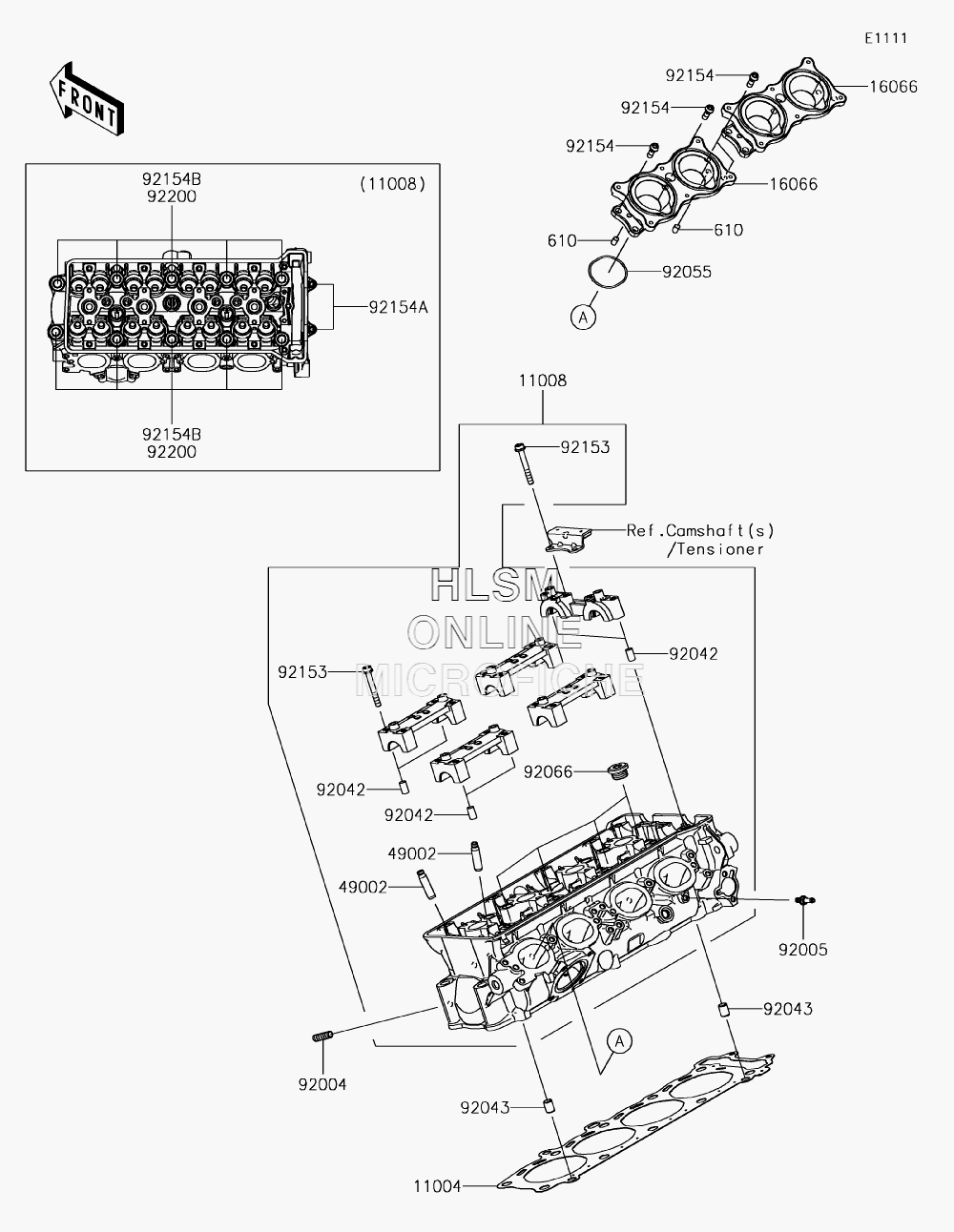

CYLINDER HEAD для Kawasaki NINJA H2 SX (ZX1002AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1100411004-0754 GASKET-HEADGASKET-HEAD
-
1100811008-0917 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1606616066-0009 HOLDER-THROTTLE BODYHOLDER-THROTTLE BODY
-
4900249002-0009 GUIDE-VALVEGUIDE-VALVE
-
610610A0610 ROLLER, 6X10ROLLER, 6X10
-
9200492004-0049 STUD, 8X18STUD, 8X18
-
9200592005-0826 FITTINGFITTING
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1401 RING-O, 43.7X1.9RING-O, 43.7X1.9
-
9206692066-0832 PLUG, 18X10PLUG, 18X10
-
9215392153-0656 BOLT, SOCKET, 6X45BOLT, SOCKET, 6X45
-
9215492154-1455 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92154A92154-1457 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154B92154-1819 BOLT, 11X103BOLT, 11X103
-
9220092200-0940 WASHER, 11.2X18.2X1.8WASHER, 11.2X18.2X1.8
