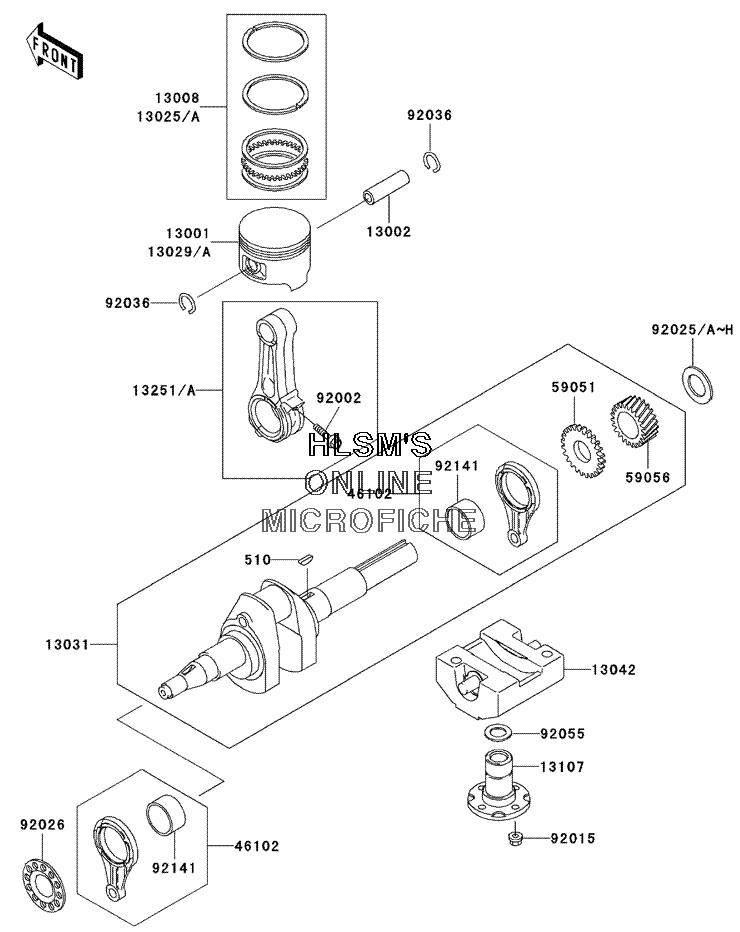

CRANKSHAFT W/ PISTON(S) для Kawasaki MULE 550 (KAF300-C5) - 2001 года выпуска
-
№АртикулНазвание
-
510510A5100 KEY-WOODRUFFKEY-WOODRUFF
-
1300113001-2125 PISTON-ENGINE (STD)PISTON-ENGINE (STD)
-
1300213002-2069 PIN-PISTONPIN-PISTON
-
1300813008-6007 RING-SET-PISTON (STD)RING-SET-PISTON (STD)
-
1302513025-2073 RING-SET-PISTON (0.25)RING-SET-PISTON (0.25)
-
13025A13025-2074 RING-SET-PISTON (0.50)RING-SET-PISTON (0.50)
-
1302913029-2100 PISTON-ENGINE (0.25)PISTON-ENGINE (0.25)
-
13029A13029-2101 PISTON-ENGINE (0.50)PISTON-ENGINE (0.50)
-
1303113031-2060 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1304213042-6009 WEIGHTWEIGHT
-
1310713107-2088 SHAFTSHAFT
-
1325113251-6034 ROD-ASSY-CONNECTING (U/S=0.50)ROD-ASSY-CONNECTING (U/S=0.50)
-
13251A13251-6056 ROD-ASSY-CONNECTINGROD-ASSY-CONNECTING
-
4610246102-6004 RODROD
-
5905159051-2097 GEAR-SPURGEAR-SPUR
-
5905659056-2993 GEAR-HELICALGEAR-HELICAL
-
9200292002-2053 BOLTBOLT
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202592025-2168 SHIM, T=1.13SHIM, T=1.13
-
92025A92025-2169 SHIM, T=1.18SHIM, T=1.18
-
92025B92025-2170 SHIM, T=1.23SHIM, T=1.23
-
92025C92025-2171 SHIM, T=1.28SHIM, T=1.28
-
92025D92025-2172 SHIM, T=1.33SHIM, T=1.33
-
92025E92025-2173 SHIM, T=1.38SHIM, T=1.38
-
92025F92025-2174 SHIM, T=1.43SHIM, T=1.43
-
92025G92025-2175 SHIM, T=1.48SHIM, T=1.48
-
92025H92025-2207 SHIM, T=1.53SHIM, T=1.53
-
9202692026-2052 SPACERSPACER
-
9203692036-008 RING-SNAP, PISTON PINRING-SNAP, PISTON PIN
-
9205592055-2072 RING-ORING-O
-
9214192141-2090 BEARING-PLANEBEARING-PLANE
