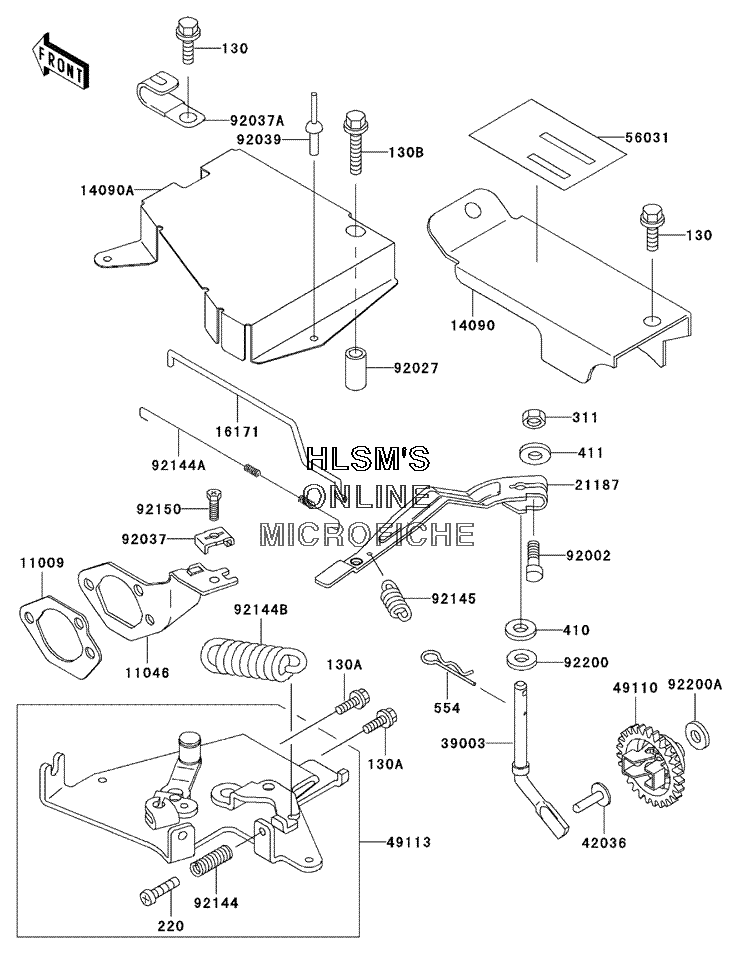

THROTTLE CONTROL для Kawasaki MULE 550 (KAF300-C5) - 2001 года выпуска
-
№АртикулНазвание
-
130130B0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130A130G0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130J0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
220220B0522 SCREW-PAN-CROSSCREW-PAN-CROS
-
311311B0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
411411B0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
554554A0600 PIN-SNAPPIN-SNAP
-
1100911009-2925 GASKETGASKET
-
1104611046-2102 BRACKETBRACKET
-
1409014090-1141 COVERCOVER
-
14090A14090-1361 COVERCOVER
-
1617116171-2061 LINK, THROTTLELINK, THROTTLE
-
2118721187-2066 ARM-ASSYARM-ASSY
-
3900339003-2076 ARM-PIVOTARM-PIVOT
-
4203642036-2060 SLEEVESLEEVE
-
4911049110-2069 GOVERNOR-ASSYGOVERNOR-ASSY
-
4911349113-2127 PANEL-COMP-CONTROLPANEL-COMP-CONTROL
-
5603156031-1790 LABEL-MANUAL, OIL CAPACITYLABEL-MANUAL, OIL CAPACITY
-
9200292002-2269 BOLT, 6X28BOLT, 6X28
-
9202792027-1064 COLLAR, 9X13X17.2COLLAR, 9X13X17.2
-
9203792037-2020 CLAMPCLAMP
-
92037A92037-2098 CLAMPCLAMP
-
9203992039-1163 RIVET, BLIND, 4.0X9.2RIVET, BLIND, 4.0X9.2
-
9214492144-2266 SPRINGSPRING
-
92144A92144-2340 SPRINGSPRING
-
92144B92144-2345 SPRINGSPRING
-
9214592145-2054 SPRINGSPRING
-
9215092150-2182 BOLT, 5X18BOLT, 5X18
-
9220092200-2029 WASHER, 6.5X11.5X2.0WASHER, 6.5X11.5X2.0
-
92200A92200-2036 WASHER, 6.2X20X0.5WASHER, 6.2X20X0.5
