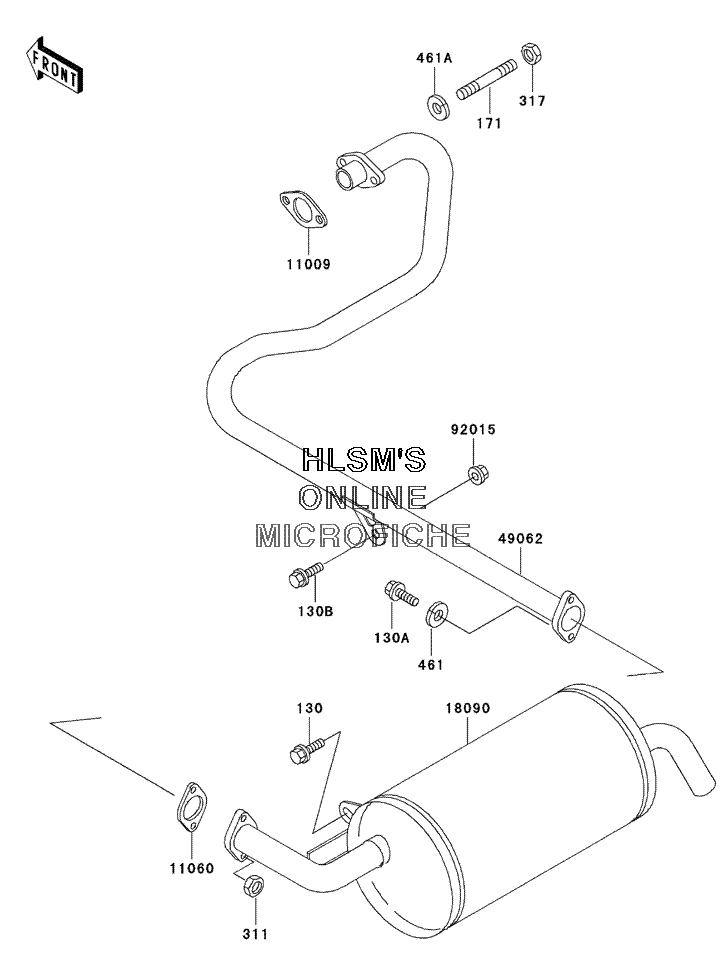

MUFFLER(S) для Kawasaki MULE 550 (KAF300-C5) - 2001 года выпуска
-
№АртикулНазвание
-
130130B0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130G0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
130B130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
171171G0820 BOLT-STUDBOLT-STUD
-
311311G0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
317317R0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
461461F0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
461A461F0800 WASHER-SPRING, 8MMWASHER-SPRING, 8MM
-
1100911009-2487 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1106011060-2079 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1809018090-1556 BODY-COMP-MUFFLERBODY-COMP-MUFFLER
-
4906249062-1126 PIPE-COMP-EXHAUSTPIPE-COMP-EXHAUST
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
