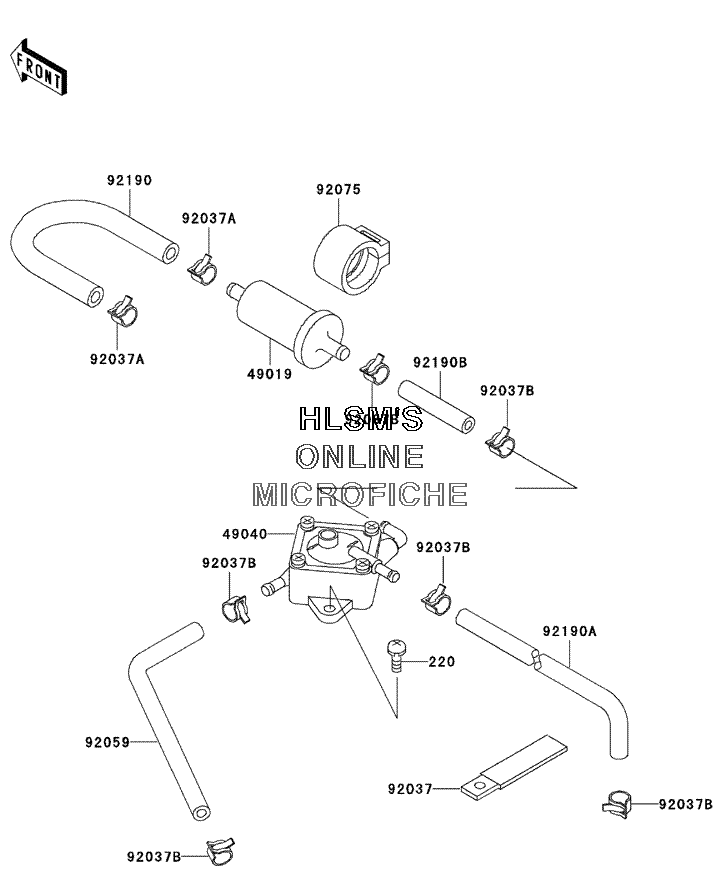

FUEL PUMP для Kawasaki MULE 550 (KAF300-C5) - 2001 года выпуска
-
№АртикулНазвание
-
220220B0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
4901949019-1055 FILTER-FUELFILTER-FUEL
-
4904049040-2067 PUMP-FUELPUMP-FUEL
-
9203792037-113 CLAMPCLAMP
-
92037A92037-1181 CLAMPCLAMP
-
92037B92037-1505 CLAMP, TUBECLAMP, TUBE
-
9205992059-1295 TUBE, 5.8X10.8X215TUBE, 5.8X10.8X215
-
9207592075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
-
9219092190-1104 TUBE, 7.5X3.5X200TUBE, 7.5X3.5X200
-
92190A92190-1179 TUBETUBE
-
92190B92190-1180 TUBE, 5.8X10.8X55TUBE, 5.8X10.8X55
