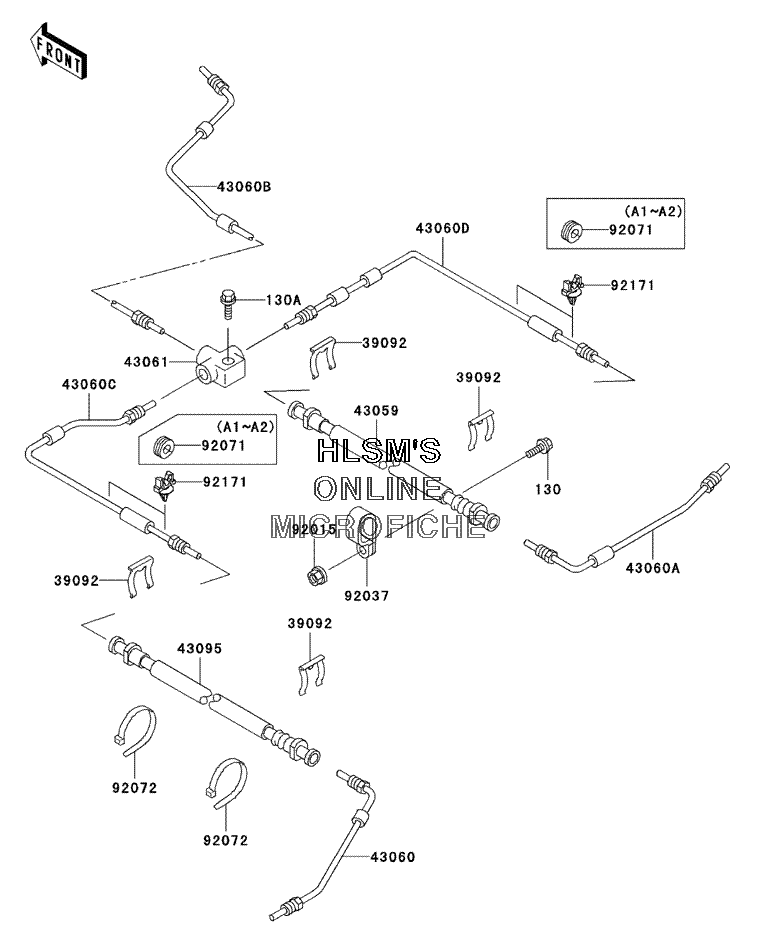

BRAKE PIPING для Kawasaki MULE 2510 Diesel (KAF950-A3) - 2002 года выпуска
-
№АртикулНазвание
-
130130D0620 BOLT-FLANGEDBOLT-FLANGED
-
130A130D0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
4305943059-1490 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4306043060-1083 PIPE-BRAKE, REAR (LEFT)PIPE-BRAKE, REAR (LEFT)
-
43060A43060-1084 PIPE-BRAKE, REAR (RIGHT)PIPE-BRAKE, REAR (RIGHT)
-
43060B43060-1085 PIPE-BRAKE, REAR (FRONT)PIPE-BRAKE, REAR (FRONT)
-
43060C43060-1086 PIPE-BRAKE, MIDDLE (LEFT)PIPE-BRAKE, MIDDLE (LEFT)
-
43060D43060-1113 PIPE-BRAKE, MIDDLE (RIGHT)PIPE-BRAKE, MIDDLE (RIGHT)
-
4306143061-1063 JOINT-BRAKEJOINT-BRAKE
-
4309543095-1146 HOSE-BRAKE, REAR (LEFT)HOSE-BRAKE, REAR (LEFT)
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9203792037-1608 CLAMPCLAMP
-
9207292072-1197 BAND, L=365BAND, L=365
-
9217192171-1312 CLAMPCLAMP
