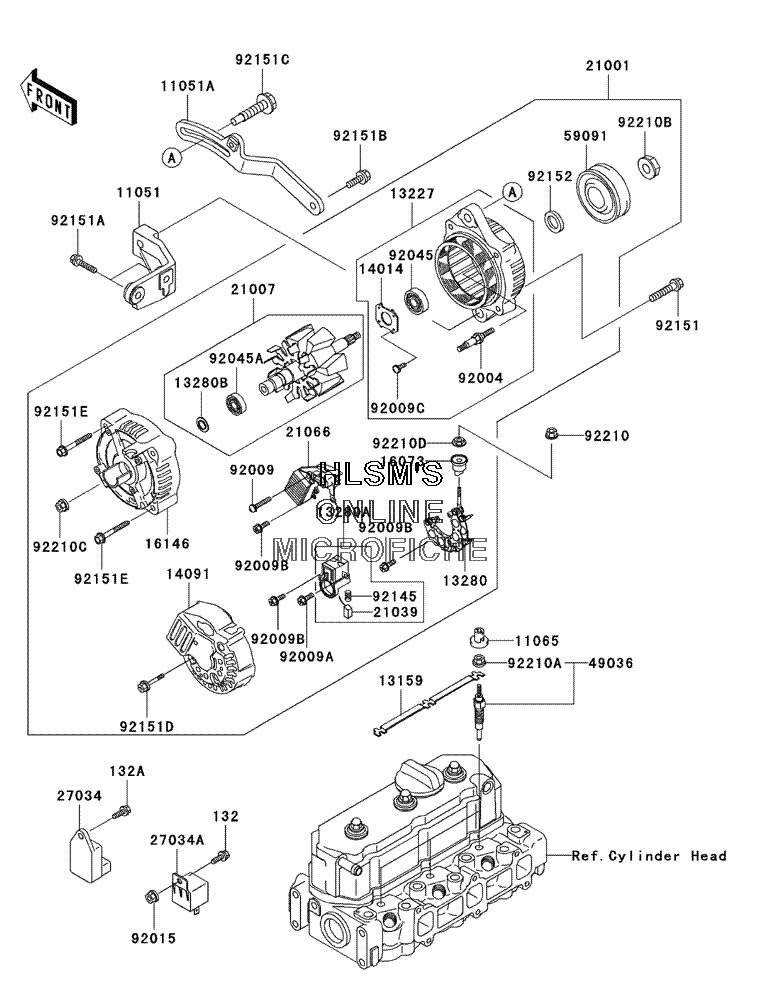

GENERATOR для Kawasaki MULE 2510 Diesel (KAF950-A3) - 2002 года выпуска
-
№АртикулНазвание
-
1105111051-1568 BRACKET, LOWERBRACKET, LOWER
-
11051A11051-1569 BRACKET, UPPERBRACKET, UPPER
-
1106511065-1150 CAP, GLOWCAP, GLOW
-
1315913159-1066 CONNECTORCONNECTOR
-
1322713227-1139 HOUSING, ALTERNATORHOUSING, ALTERNATOR
-
1328013280-1173 HOLDER, RECTIFIERHOLDER, RECTIFIER
-
13280A13280-1174 HOLDER, ALTERNATOR BRUSHHOLDER, ALTERNATOR BRUSH
-
13280B13280-1175 HOLDER, BEARINGHOLDER, BEARING
-
1401414014-1149 PLATE-POSITIONPLATE-POSITION
-
1409114091-1207 COVER, REAR ENDCOVER, REAR END
-
1607316073-1122 INSULATORINSULATOR
-
1614616146-1214 COVER-ASSY, RECTIFIERCOVER-ASSY, RECTIFIER
-
2100121001-1176 GENERATORGENERATOR
-
2100721007-1368 ROTOR, ALTERNATORROTOR, ALTERNATOR
-
2103921039-1068 BRUSHBRUSH
-
2106621066-1122 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
2703427034-1065 RELAY, HEATING TIMERRELAY, HEATING TIMER
-
27034A27034-1066 RELAY, GLOWRELAY, GLOW
-
4903649036-1051 PLUG-GLOWPLUG-GLOW
-
5909159091-1106 PULLEY, ALTERNATORPULLEY, ALTERNATOR
-
9200492004-1273 STUD, ALTERNATOR HOUSINGSTUD, ALTERNATOR HOUSING
-
9200992009-1921 SCREWSCREW
-
92009A92009-1922 SCREWSCREW
-
92009B92009-1923 SCREWSCREW
-
92009C92009-1924 SCREW, POSITION PLATESCREW, POSITION PLATE
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9204592045-1398 BEARING-BALL, 373BEARING-BALL, 373
-
92045A92045-1399 BEARING-BALL, 6002DG6BEARING-BALL, 6002DG6
-
9214592145-1312 SPRING, ALTERNATOR BRUSHSPRING, ALTERNATOR BRUSH
-
9215192151-1691 BOLT, 10X40BOLT, 10X40
-
92151A92151-1692 BOLT, 8X25BOLT, 8X25
-
92151B92151-1693 BOLT, 8X20BOLT, 8X20
-
92151C92151-1694 BOLT, 8X45BOLT, 8X45
-
92151D92151-1715 BOLTBOLT
-
92151E92151-1716 BOLTBOLT
-
9215292152-1230 COLLARCOLLAR
-
9221092210-1210 NUT, 6MMNUT, 6MM
-
92210A92210-1218 NUT, GLOW PLUG, 4MMNUT, GLOW PLUG, 4MM
-
92210B92210-1232 NUT, PULLEYNUT, PULLEY
-
92210C92210-1233 NUTNUT
-
132132J0512 BOLT-FLANGED-SMALL, 5X12BOLT-FLANGED-SMALL, 5X12
-
132A132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
92210D92210-1234 NUTNUT
