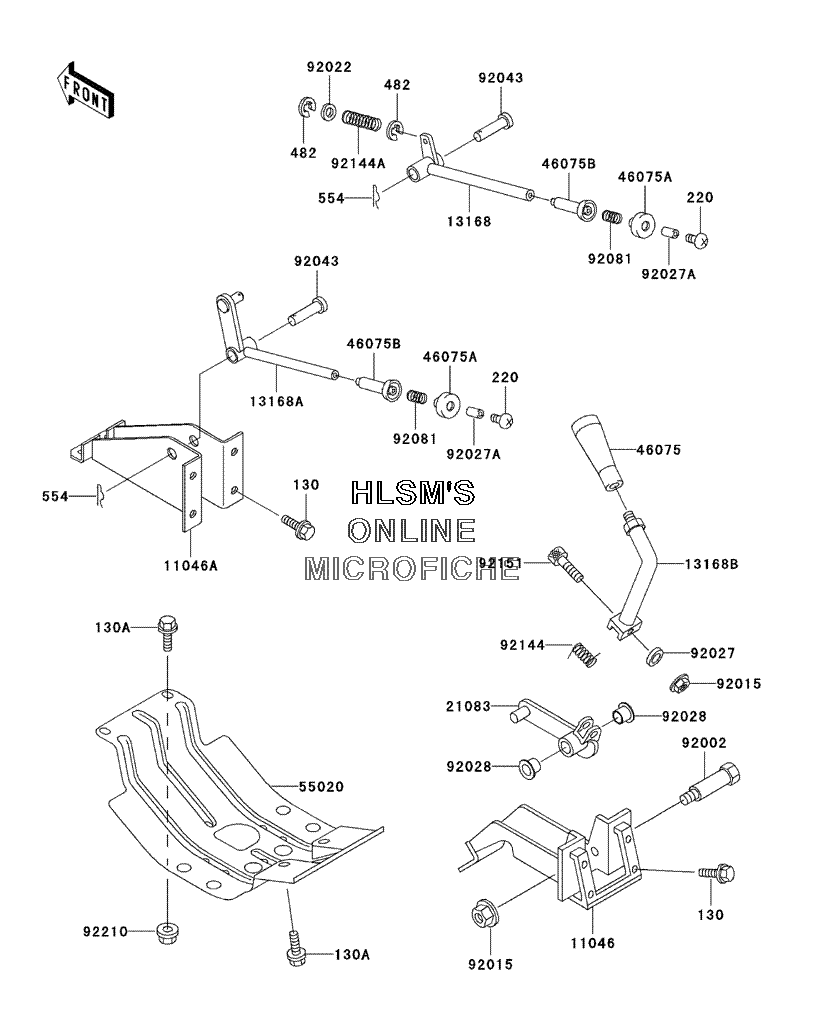

FRAME FITTINGS (LEVER(S)) для Kawasaki MULE 2510 Diesel (KAF950-A3) - 2002 года выпуска
-
№АртикулНазвание
-
130130C0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130G1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
220220C0514 SCREW-PAN-CROSSCREW-PAN-CROS
-
482482L8000 CIRCLIP-TYPE-E, 8MMCIRCLIP-TYPE-E, 8MM
-
554554A1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
1104611046-1677 BRACKET, SHIFT LEVERBRACKET, SHIFT LEVER
-
11046A11046-1751 BRACKET, HI-LOW RANGEBRACKET, HI-LOW RANGE
-
1316813168-1428 LEVER, DIFF MODE CONTROLLEVER, DIFF MODE CONTROL
-
13168A13168-1430 LEVER, HI-LOW RANGELEVER, HI-LOW RANGE
-
13168B13168-1440 LEVER, SHIFTLEVER, SHIFT
-
2108321083-1142 ARM, SHIFT LEVERARM, SHIFT LEVER
-
4607546075-1075 GRIP, SHIFT LEVERGRIP, SHIFT LEVER
-
46075A46075-1085 GRIP, UPPERGRIP, UPPER
-
46075B46075-1086 GRIP, LOWERGRIP, LOWER
-
5502055020-1343 GUARD, FRONT DIFF CASEGUARD, FRONT DIFF CASE
-
9200292002-1984 BOLTBOLT
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
9202792027-1066 COLLAR, 6.3X10X4.8COLLAR, 6.3X10X4.8
-
92027A92027-1987 COLLARCOLLAR
-
9202892028-1507 BUSHINGBUSHING
-
9204392043-1069 PIN, 10X34PIN, 10X34
-
9208192081-1714 SPRINGSPRING
-
9214492144-1175 SPRINGSPRING
-
92144A92144-1510 SPRINGSPRING
-
9215192151-1128 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9221092210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
