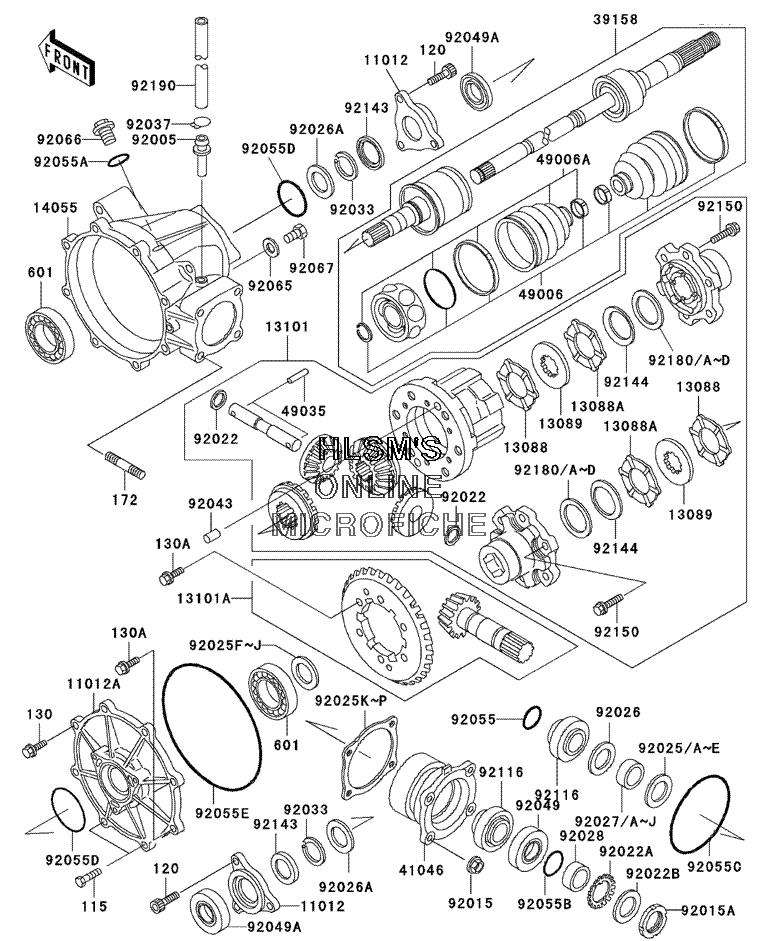

DRIVE SHAFT (FRONT) для Kawasaki MULE 2510 Diesel (KAF950-A3) - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1648 CAPCAP
-
11012A11012-1649 CAP, GEAR CASECAP, GEAR CASE
-
1308813088-1075 PLATE-FRICTION, T=2.8PLATE-FRICTION, T=2.8
-
13088A13088-1078 PLATE-FRICTION, T=2.4PLATE-FRICTION, T=2.4
-
1308913089-1083 PLATE-CLUTCHPLATE-CLUTCH
-
1310113101-1190 GEAR-ASSYGEAR-ASSY
-
13101A13101-5081 GEAR-ASSY, BEVELGEAR-ASSY, BEVEL
-
1405514055-1114 CASE-GEAR, FRONTCASE-GEAR, FRONT
-
3915839158-1102 SHAFT-ASSY-DRIVE, FRONTSHAFT-ASSY-DRIVE, FRONT
-
4104641046-1089 HOUSING-BEARINGHOUSING-BEARING
-
4900649006-1318 BOOT, JOINT BALL, OUTSIDEBOOT, JOINT BALL, OUTSIDE
-
49006A49006-1320 BOOT, JOINT BALL, INSIDEBOOT, JOINT BALL, INSIDE
-
4903549035-1056 PIN-SPRINGPIN-SPRING
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9201592015-1402 NUT, 8MMNUT, 8MM
-
92015A92015-1768 NUT, 25MMNUT, 25MM
-
9202292022-1941 WASHERWASHER
-
92022A92022-1990 WASHER, TOOTHEDWASHER, TOOTHED
-
92022B92022-225 WASHER, 25.3X32X0.5WASHER, 25.3X32X0.5
-
9202592025-1072 SHIM, 25.2X29.8X1.70SHIM, 25.2X29.8X1.70
-
92025A92025-1073 SHIM, 25.2X29.8X1.72SHIM, 25.2X29.8X1.72
-
92025B92025-1074 SHIM, 25.2X29.8X1.74SHIM, 25.2X29.8X1.74
-
92025C92025-1075 SHIM, 25.2X29.8X1.76SHIM, 25.2X29.8X1.76
-
92025D92025-1076 SHIM, 25.2X29.8X1.78SHIM, 25.2X29.8X1.78
-
92025E92025-1077 SHIM, 25.2X29.8X1.80SHIM, 25.2X29.8X1.80
-
92025F92025-1849 SHIM, 35.3X46X1.00SHIM, 35.3X46X1.00
-
92025G92025-1850 SHIM, 35.3X46X0.10SHIM, 35.3X46X0.10
-
92025H92025-1851 SHIM, 35.3X46X0.15SHIM, 35.3X46X0.15
-
92025I92025-1856 SHIM, 35.3X46X0.50SHIM, 35.3X46X0.50
-
92025J92025-1857 SHIM, 35.3X46X0.80SHIM, 35.3X46X0.80
-
92025K92025-1919 SHIM, T=0.10SHIM, T=0.10
-
92025L92025-1920 SHIM, T=0.15SHIM, T=0.15
-
92025M92025-1921 SHIM, T=0.50SHIM, T=0.50
-
92025N92025-1922 SHIM, T=0.80SHIM, T=0.80
-
92025O92025-1923 SHIM, T=1.00SHIM, T=1.00
-
92025P92025-1924 SHIM, T=1.20SHIM, T=1.20
-
9202692026-1337 SPACERSPACER
-
92026A92026-1338 SPACER, 29X40X1.0SPACER, 29X40X1.0
-
9202792027-1401 COLLAR, 25.2X29.8X10.2COLLAR, 25.2X29.8X10.2
-
92027A92027-1402 COLLAR, 25.2X29.8X10.3COLLAR, 25.2X29.8X10.3
-
115115P0830 BOLT-SMALL-UPSETBOLT-SMALL-UPSET
-
120120P0616 BOLT-SOCKET, 6X16BOLT-SOCKET, 6X16
-
130130P0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130P1035 BOLT-FLANGEDBOLT-FLANGED
-
172172G0822 BOLT-STUD, 8X22BOLT-STUD, 8X22
-
601601B6007 BEARING-BALL, #6007C3BEARING-BALL, #6007C3
-
92027B92027-1403 COLLAR, 25.2X29.8X10.4COLLAR, 25.2X29.8X10.4
-
92027C92027-1404 COLLAR, 25.2X29.8X10.5COLLAR, 25.2X29.8X10.5
-
92027D92027-1405 COLLAR, 25.2X29.8X10.6COLLAR, 25.2X29.8X10.6
-
92027E92027-1406 COLLAR, 25.2X29.8X10.7COLLAR, 25.2X29.8X10.7
-
92027F92027-1407 COLLAR, 25.2X29.8X10.8COLLAR, 25.2X29.8X10.8
-
92027G92027-1408 COLLAR, 25.2X29.8X10.9COLLAR, 25.2X29.8X10.9
-
92027H92027-1409 COLLAR, 25.2X29.8X11.0COLLAR, 25.2X29.8X11.0
-
92027I92027-1410 COLLAR, 25.2X29.8X11.1COLLAR, 25.2X29.8X11.1
-
92027J92027-1411 COLLAR, 25.2X29.8X11.2COLLAR, 25.2X29.8X11.2
-
9202892028-1699 BUSHINGBUSHING
-
9203392033-1249 RING-SNAP, T=1.5RING-SNAP, T=1.5
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204392043-1400 PIN, 8X18PIN, 8X18
-
9204992049-1298 SEAL-OIL, TC35X55X8SEAL-OIL, TC35X55X8
-
92049A92049-1309 SEAL-OIL, TC30487SEAL-OIL, TC30487
-
9205592055-055 RING-O, 19.5X1.5RING-O, 19.5X1.5
-
92055A92055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
92055B92055-1160 RING-O, 24.7MMRING-O, 24.7MM
-
92055C92055-1408 RING-O, 65.2X2.4RING-O, 65.2X2.4
-
92055D92055-1409 RING-O, 46X2.5RING-O, 46X2.5
-
92055E92055-1410 RING-O, 154.1X2.5RING-O, 154.1X2.5
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1303 PLUGPLUG
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9211692116-1003 BEARING-ROLLER, 4T30205BEARING-ROLLER, 4T30205
-
9214392143-1703 COLLARCOLLAR
-
9214492144-1671 SPRINGSPRING
-
9215092150-1109 BOLT, 8X20BOLT, 8X20
-
9218092180-1121 SHIM, 32X48X0.8SHIM, 32X48X0.8
-
92180A92180-1122 SHIM, 32X48X1.0SHIM, 32X48X1.0
-
92180B92180-1123 SHIM, 32X48X1.2SHIM, 32X48X1.2
-
92180C92180-1124 SHIM, 32X48X1.4SHIM, 32X48X1.4
-
92180D92180-1125 SHIM, 32X48X1.6SHIM, 32X48X1.6
-
9219092190-1044 TUBE, 4.7X9.5X600TUBE, 4.7X9.5X600
