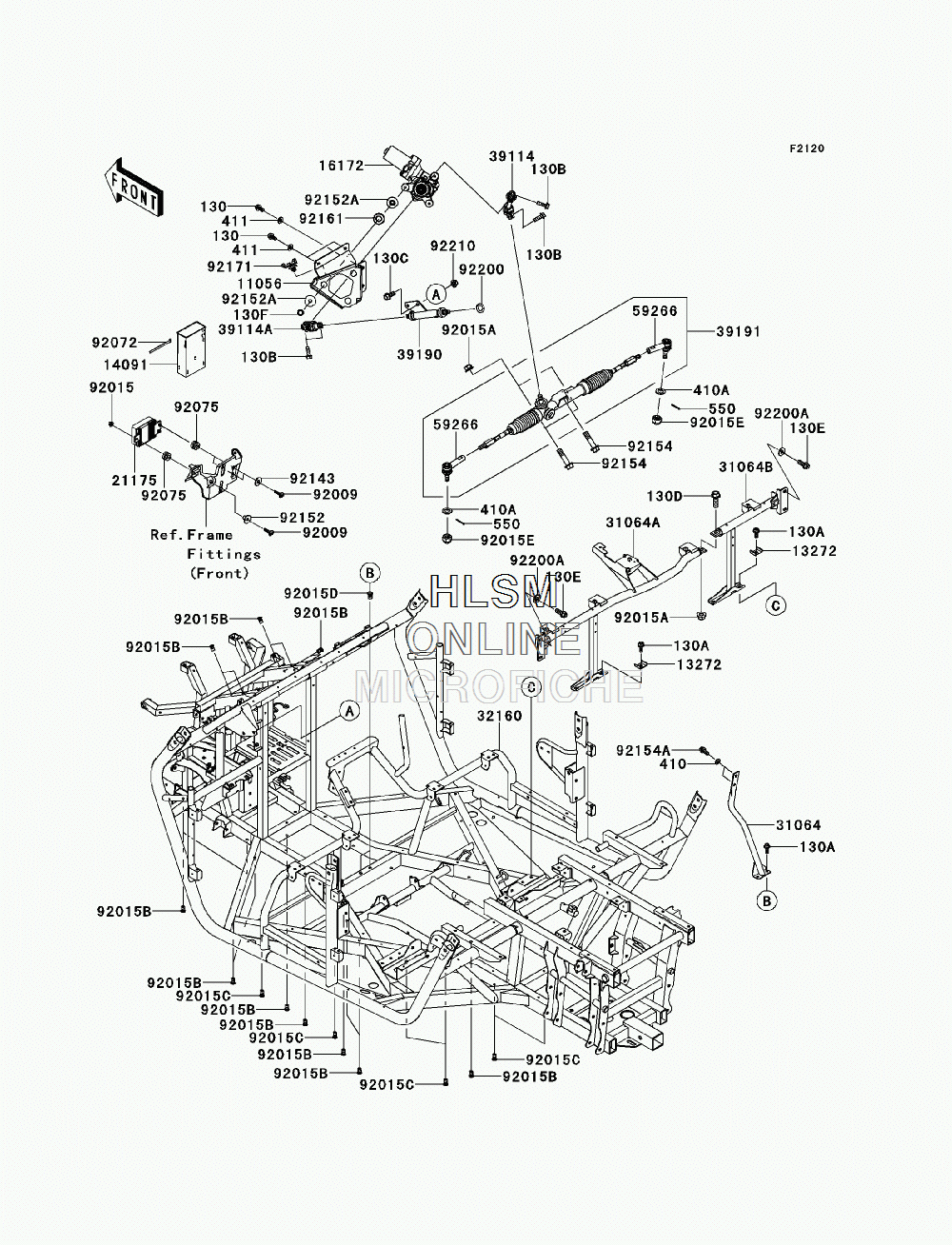

FRAME для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130BA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130C130BA1022 BOLT-FLANGED, 10X22BOLT-FLANGED, 10X22
-
130D130BA1235 BOLT-FLANGED, 12X35BOLT-FLANGED, 12X35
-
130E130BB1025 BOLT-FLANGED, 10X25BOLT-FLANGED, 10X25
-
130F130CA0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
410A410AA1400 WASHER-PLAIN-SMALL, 14MMWASHER-PLAIN-SMALL, 14MM
-
411411AA0800 WASHER-PLAINWASHER-PLAIN
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
1105611056-1416 BRACKET, EPS ACTUATORBRACKET, EPS ACTUATOR
-
1327213272-1336 PLATEPLATE
-
1409114091-7560 COVER, ECUCOVER, ECU
-
1617216172-0557 ACTUATOR, EPSACTUATOR, EPS
-
2117521175-0809 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
3106431064-0594 PIPE-COMPPIPE-COMP
-
31064A31064-0624 PIPE-COMP, SUB FRAME, SEAT, LEFT HANDPIPE-COMP, SUB FRAME, SEAT, LEFT HAND
-
31064B31064-0632 PIPE-COMP, SUB FRAME, SEAT, RIGHT HANDPIPE-COMP, SUB FRAME, SEAT, RIGHT HAND
-
3216032160-0667 FRAME-COMPFRAME-COMP
-
3911439114-0306 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
39114A39114-0308 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3919039190-7501 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0018 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
5926659266-0706 JOINT-BALLJOINT-BALL
-
9200992009-1465 SCREW, 6X25SCREW, 6X25
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
92015B92015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015C92015-1792 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
92015D92015-1793 NUT, POP, 8MM, L=16.5NUT, POP, 8MM, L=16.5
-
92015E92015-1841 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9207292072-030 BAND, L=123BAND, L=123
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1025 COLLAR, L=6.5COLLAR, L=6.5
-
9215292152-0957 COLLAR, 6.5X10X13.3COLLAR, 6.5X10X13.3
-
92152A92152-7513 COLLARCOLLAR
-
9215492154-1008 BOLT, FLANGED, 12X50BOLT, FLANGED, 12X50
-
92154A92154-1130 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
9216192161-7517 DAMPER, ACTUATORDAMPER, ACTUATOR
-
9217192171-0453 CLAMPCLAMP
-
9220092200-0460 WASHER, 15X25X1.6WASHER, 15X25X1.6
-
92200A92200-7506 WASHER, 10.2X23X2.5WASHER, 10.2X23X2.5
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
