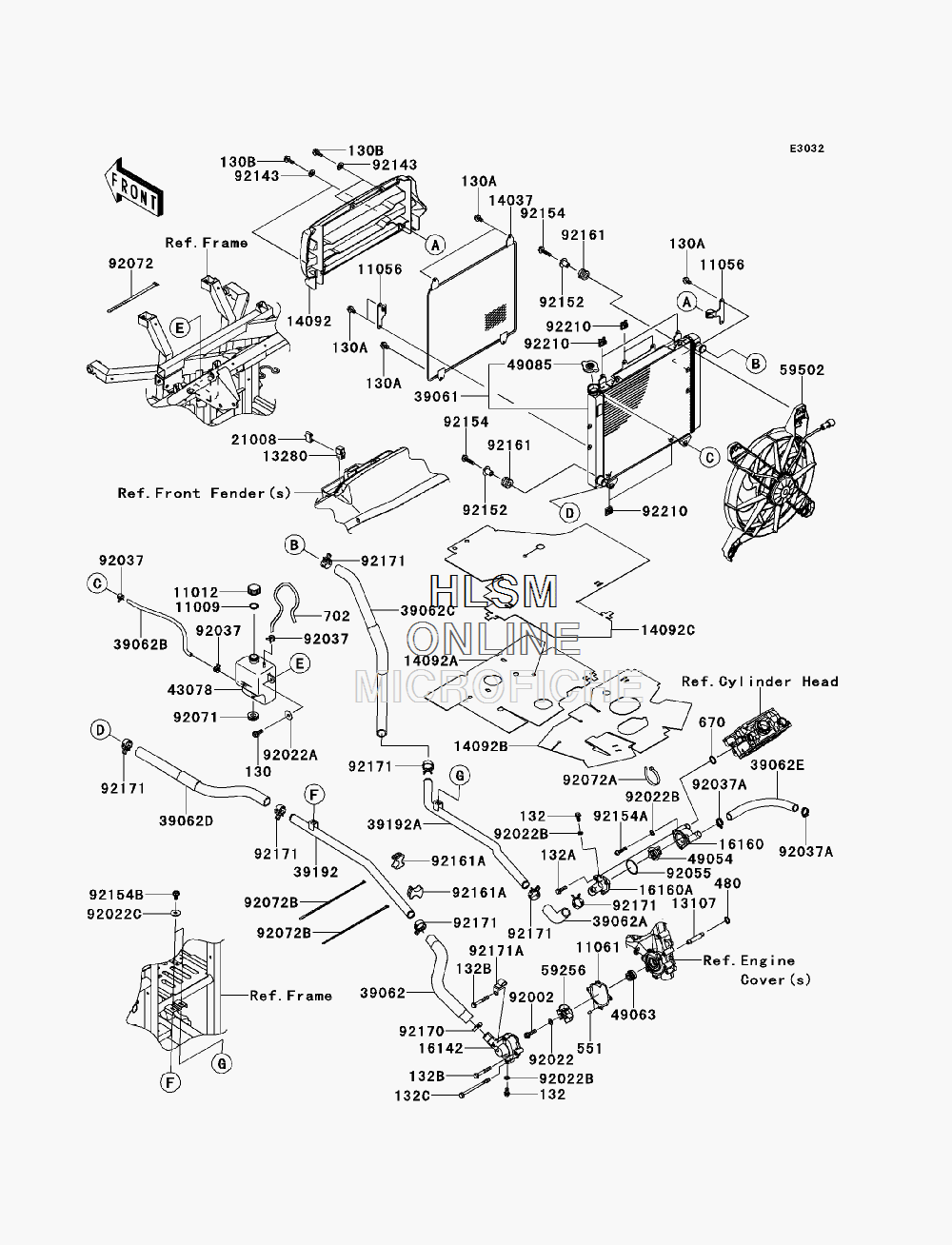

RADIATOR для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130B130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132B132BA0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
132C132BA0680 BOLT-FLANGED-SMALL, 6X80BOLT-FLANGED-SMALL, 6X80
-
480480J1200 CIRCLIP-TYPE-C, 12MMCIRCLIP-TYPE-C, 12MM
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
670670B2020 O RING, 20MMO RING, 20MM
-
702702A05380 TUBE-RUBBER, 5X8X380TUBE-RUBBER, 5X8X380
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105611056-0722 BRACKETBRACKET
-
1106111061-0731 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1310713107-0719 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
1403714037-0739 SCREENSCREEN
-
1409214092-0086-6Z COVER, RADIATOR, (F.BLACK) (FOR 16P)COVER, RADIATOR, (F.BLACK) (FOR 16P)
-
14092A14092-1060 COVER, HEAT GUARD, FRONTCOVER, HEAT GUARD, FRONT
-
14092B14092-1061 COVER, HEAT GUARD, REARCOVER, HEAT GUARD, REAR
-
14092C14092-1142 COVER, CHAMBERCOVER, CHAMBER
-
1614216142-0705 COVER-PUMP, WATERCOVER-PUMP, WATER
-
1616016160-0734 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
16160A16160-0735 BODY, THERMOSTAT, UPPERBODY, THERMOSTAT, UPPER
-
2100821008-0554 BREAKER, RAD. FAN, 20ABREAKER, RAD. FAN, 20A
-
3906139061-0568 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0580 HOSE-COOLING, WATER PUMP INHOSE-COOLING, WATER PUMP IN
-
39062A39062-0581 HOSE-COOLING, THERMO OUTHOSE-COOLING, THERMO OUT
-
39062B39062-0582 HOSE-COOLING, RESERVOIR-RAD.HOSE-COOLING, RESERVOIR-RAD.
-
39062C39062-0619 HOSE-COOLING, RADIATOR INHOSE-COOLING, RADIATOR IN
-
39062D39062-0620 HOSE-COOLING, RADIATOR OUTHOSE-COOLING, RADIATOR OUT
-
39062E39062-0621 HOSE-COOLING, REAR HEAD-THERMO.HOSE-COOLING, REAR HEAD-THERMO.
-
3919239192-0569 PIPE-WATER, LEFT HANDPIPE-WATER, LEFT HAND
-
39192A39192-0571 PIPE-WATER, RIGHT HANDPIPE-WATER, RIGHT HAND
-
4307843078-0070 RESERVOIRRESERVOIR
-
4905449054-1055 THERMOSTATTHERMOSTAT
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
4908549085-0005 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5925659256-0555 IMPELLERIMPELLER
-
5950259502-0566 FAN-ASSYFAN-ASSY
-
9200292002-1154 BOLT, 6X22BOLT, 6X22
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-165 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
92022B92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
92022C92022-3714 WASHER, 6.2X20X2WASHER, 6.2X20X2
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1589 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9205592055-1279 RING-O, 44.7X2.4RING-O, 44.7X2.4
-
9207192071-1115 GROMMETGROMMET
-
9207292072-032 BAND, L=218BAND, L=218
-
92072A92072-1237 BAND, L=250BAND, L=250
-
92072B92072-3872 BAND, L=368.3BAND, L=368.3
-
9214392143-1087 COLLARCOLLAR
-
9215292152-1512 COLLARCOLLAR
-
9215492154-0498 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92154A92154-1142 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154B92154-1195 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9216192161-1349 DAMPERDAMPER
-
92161A92161-1513 DAMPER, PIPE WATERDAMPER, PIPE WATER
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217192171-0060 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92171A92171-0926 CLAMPCLAMP
-
9221092210-0867 NUTNUT
