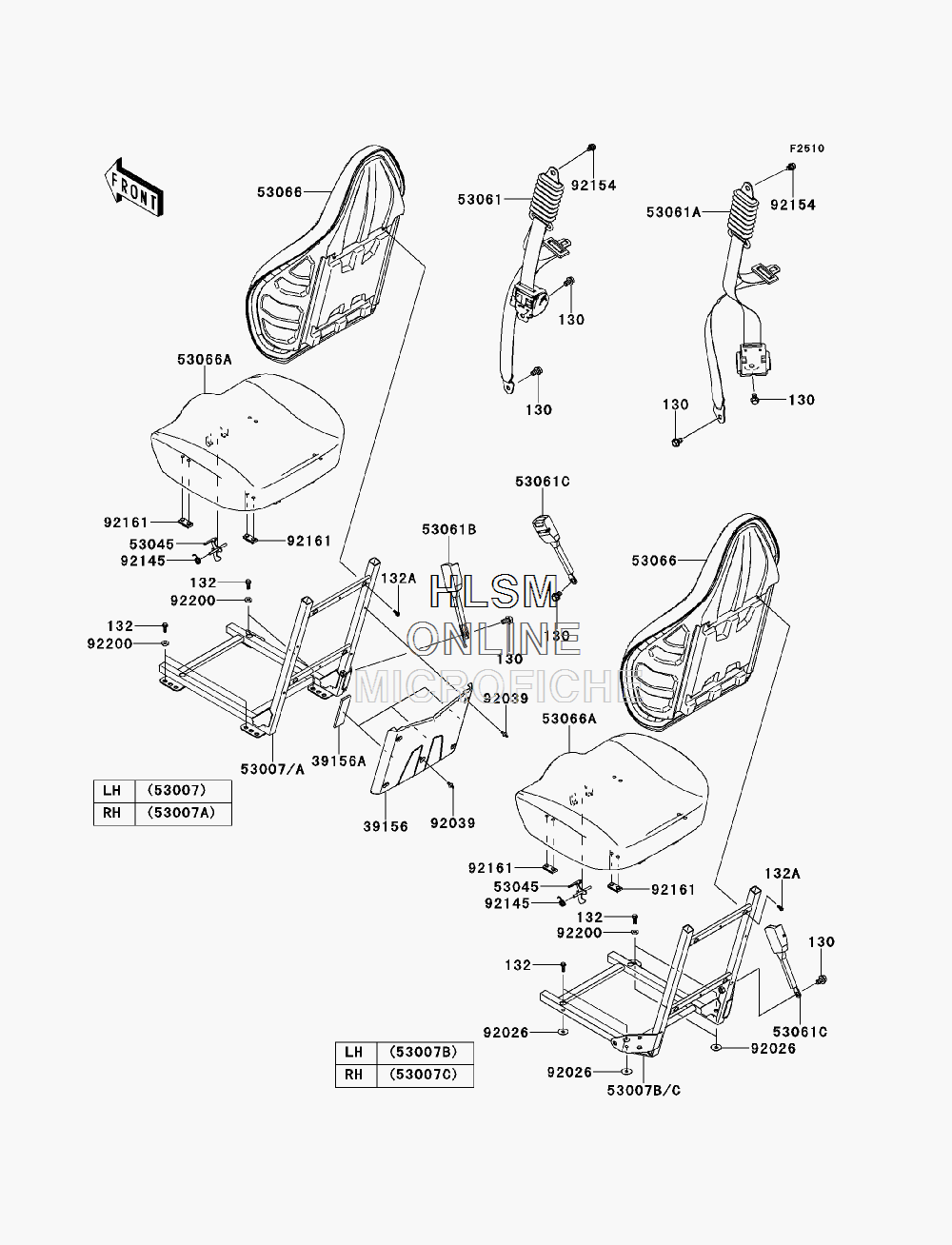

SEAT для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED, 12X20BOLT-FLANGED, 12X20
-
132132BA0822 BOLT-FLANGED-SMALL, 8X22BOLT-FLANGED-SMALL, 8X22
-
132A132BB0614 BOLT-FLANGED-SMALL, 6X14BOLT-FLANGED-SMALL, 6X14
-
3915639156-0805 PAD, SEAT BACKPAD, SEAT BACK
-
39156A39156-0929 PAD, FRONT SEAT BACKPAD, FRONT SEAT BACK
-
5300753007-0347 FRAME-SEAT, FRONT, LEFT HANDFRAME-SEAT, FRONT, LEFT HAND
-
53007A53007-0348 FRAME-SEAT, FRONT, RIGHT HANDFRAME-SEAT, FRONT, RIGHT HAND
-
53007B53007-0349 FRAME-SEAT, REAR, LEFT HANDFRAME-SEAT, REAR, LEFT HAND
-
53007C53007-0350 FRAME-SEAT, REAR, RIGHT HANDFRAME-SEAT, REAR, RIGHT HAND
-
5304553045-0019 HOOK-ASSYHOOK-ASSY
-
5306153061-0016 BELT-SEAT, RETRACTOR, L=2950BELT-SEAT, RETRACTOR, L=2950
-
53061A53061-0017 BELT-SEAT, RETRACTOR, L=3100BELT-SEAT, RETRACTOR, L=3100
-
53061B53061-0018 BELT-SEAT, BUCKLE, SW.BELT-SEAT, BUCKLE, SW.
-
53061C53061-0019 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
5306653066-0323-MA SEAT-ASSY, BACK, (BLACK) (FOR 16P)SEAT-ASSY, BACK, (BLACK) (FOR 16P)
-
53066A53066-0374-MA SEAT-ASSY, BASE, (BLACK) (FOR 16P)SEAT-ASSY, BASE, (BLACK) (FOR 16P)
-
9202692026-0714 SPACER, 8.6X30X4.5SPACER, 8.6X30X4.5
-
9203992039-0713 RIVET, FASTENERRIVET, FASTENER
-
9214592145-0022 SPRING, SEAT LATCHSPRING, SEAT LATCH
-
9215492154-1136 BOLT, 10X16BOLT, 10X16
-
9216192161-1489 DAMPER, SEATDAMPER, SEAT
-
9220092200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
