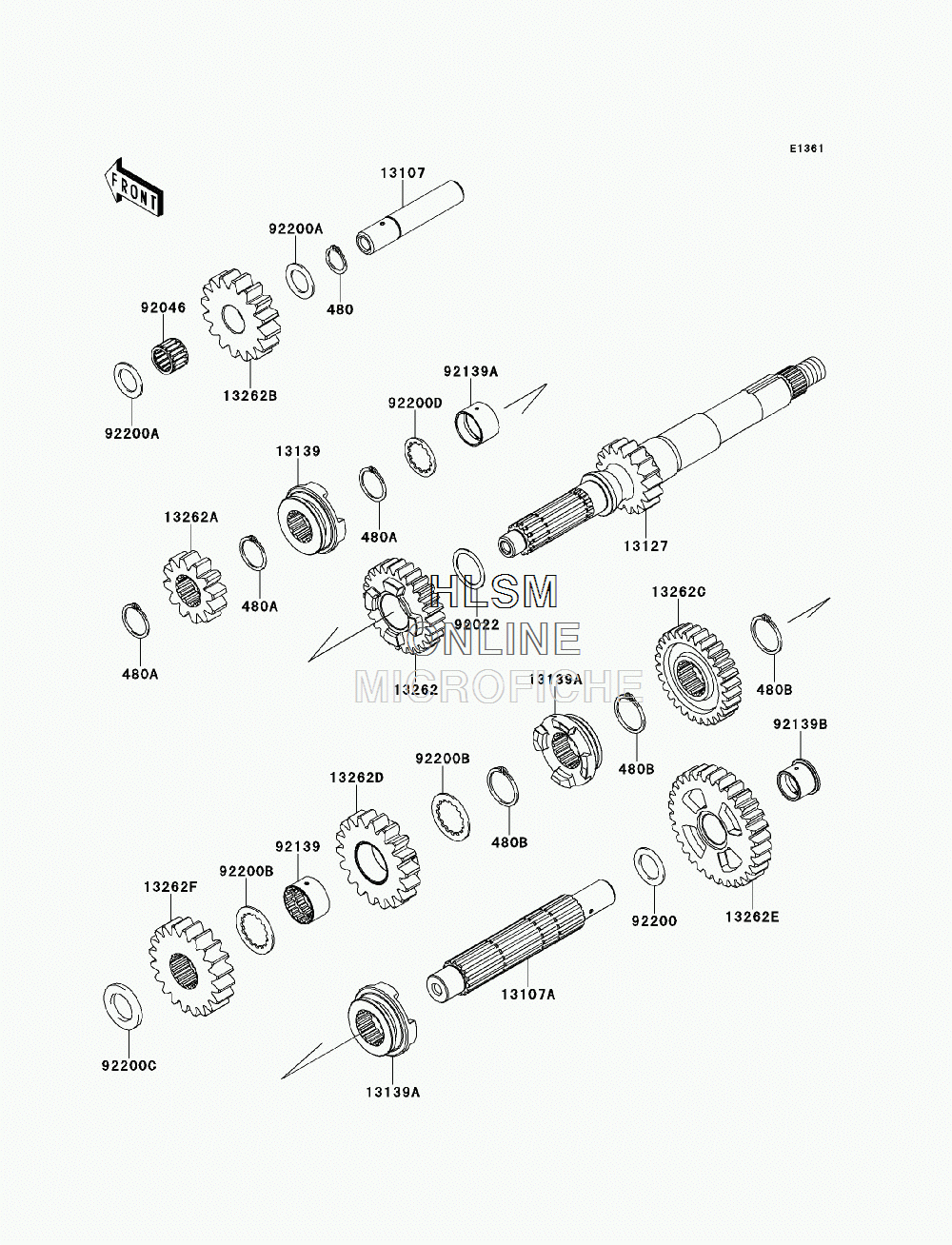

TRANSMISSION для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска
-
№АртикулНазвание
-
480480J1800 CIRCLIP-TYPE-C, 18MMCIRCLIP-TYPE-C, 18MM
-
480A480J2400 CIRCLIP-TYPE-C, 24MMCIRCLIP-TYPE-C, 24MM
-
480B480J2800 CIRCLIP-TYPE-C, 28MMCIRCLIP-TYPE-C, 28MM
-
1310713107-0715 SHAFT, REVERSESHAFT, REVERSE
-
13107A13107-0716 SHAFT, COUNTERSHAFT, COUNTER
-
1312713127-0654 SHAFT-TRANSMISSION INPUT, 17TSHAFT-TRANSMISSION INPUT, 17T
-
1313913139-0624 SHIFTER, INPUT HISHIFTER, INPUT HI
-
13139A13139-0625 SHIFTER, OUTPUTSHIFTER, OUTPUT
-
1326213262-0860 GEAR, INPUT HI, 26TGEAR, INPUT HI, 26T
-
13262A13262-0861 GEAR, INPUT REVERSE, 12TGEAR, INPUT REVERSE, 12T
-
13262B13262-0862 GEAR, REVERSE IDLE, 16TGEAR, REVERSE IDLE, 16T
-
13262C13262-0863 GEAR, OUTPUT HI, 28TGEAR, OUTPUT HI, 28T
-
13262D13262-0865 GEAR, OUTPUT REVERSE, 18TGEAR, OUTPUT REVERSE, 18T
-
13262E13262-0867 GEAR, OUTPUT LOW, 31TGEAR, OUTPUT LOW, 31T
-
13262F13262-1082 GEAR, OUTPUT, 20TGEAR, OUTPUT, 20T
-
9202292022-1800 WASHER, 25.3X32X1WASHER, 25.3X32X1
-
9204692046-0605 BEARING-NEEDLE, 182216E03 C3BEARING-NEEDLE, 182216E03 C3
-
9213992139-0107 BUSHING, 25X28.3X16.7BUSHING, 25X28.3X16.7
-
92139A92139-0280 BUSHING, 25X28X17.8BUSHING, 25X28X17.8
-
92139B92139-0707 BUSHING, 20X24X18.7BUSHING, 20X24X18.7
-
9220092200-0221 WASHER, 20.2X30X1.8WASHER, 20.2X30X1.8
-
92200A92200-0716 WASHER, 18.2X28X1.5WASHER, 18.2X28X1.5
-
92200B92200-0717 WASHER, 28.5X38X1.5WASHER, 28.5X38X1.5
-
92200C92200-0718 WASHER, 22.2X36X3.6WASHER, 22.2X36X3.6
-
92200D92200-1239 WASHER, 25.2X31.0X1.5WASHER, 25.2X31.0X1.5
