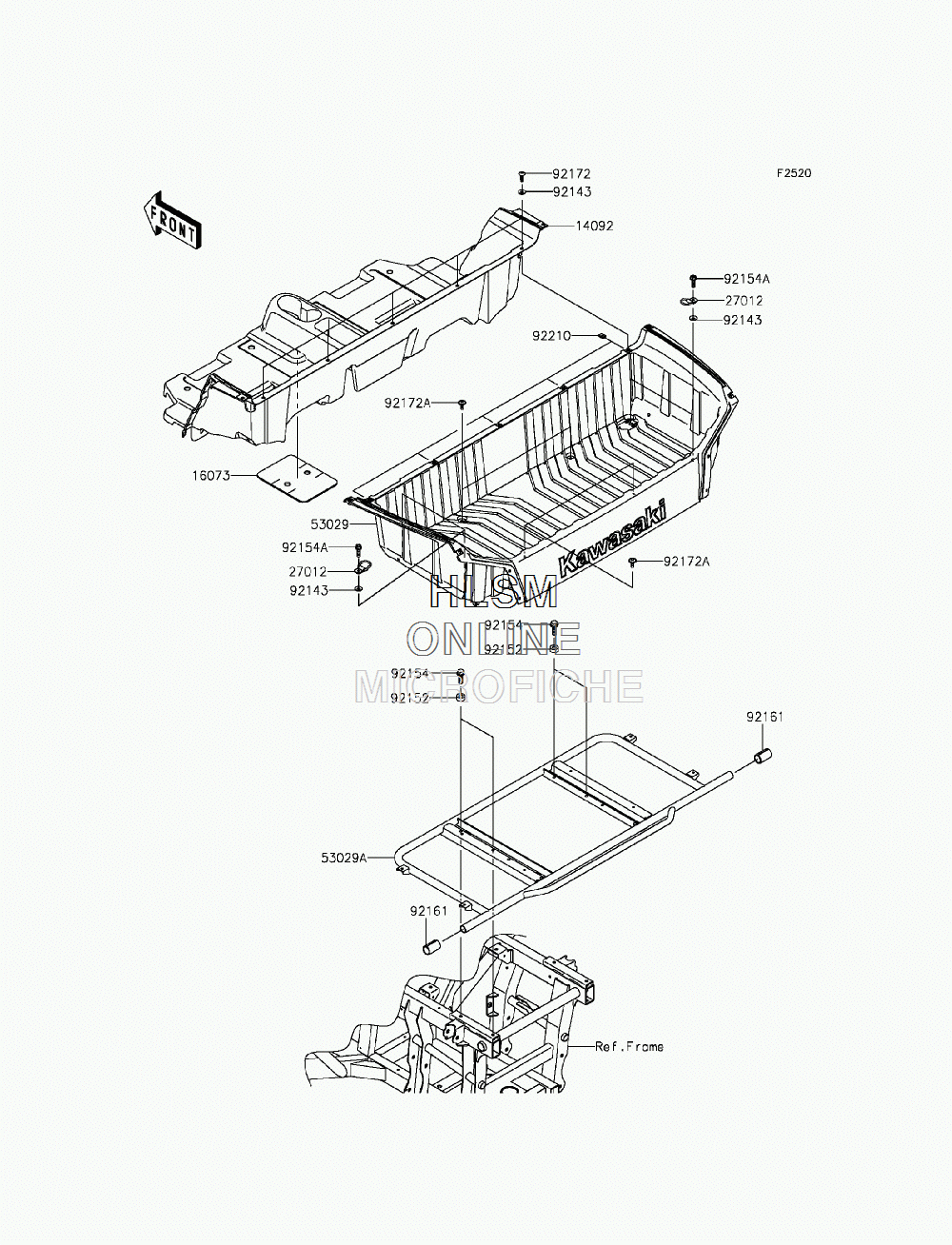

CARRIER(S) для Kawasaki TERYX4 (KRT800BFF) - 2015 года выпуска
-
№АртикулНазвание
-
1409214092-1057 COVER, REAR CONSOLECOVER, REAR CONSOLE
-
1607316073-0803 INSULATOR,CENTER CONSOLEINSULATOR,CENTER CONSOLE
-
2701227012-0783 HOOKHOOK
-
5302953029-0309 CARRIERCARRIER
-
53029A53029-0330 CARRIERCARRIER
-
9214392143-1087 COLLARCOLLAR
-
9215292152-1553 COLLAR,8.2X18X8COLLAR,8.2X18X8
-
9215492154-1302 BOLT,FLANGED,8X25BOLT,FLANGED,8X25
-
92154A92154-1356 BOLT,FLANGED,6X22BOLT,FLANGED,6X22
-
9216192161-1604 DAMPER,50X79X3DAMPER,50X79X3
-
9217292172-0488 SCREW,TAPPING,6X20SCREW,TAPPING,6X20
-
92172A92172-0711 SCREW,6X16SCREW,6X16
-
9221092210-0624 NUT, LEAF SPRING,6MMNUT, LEAF SPRING,6MM
