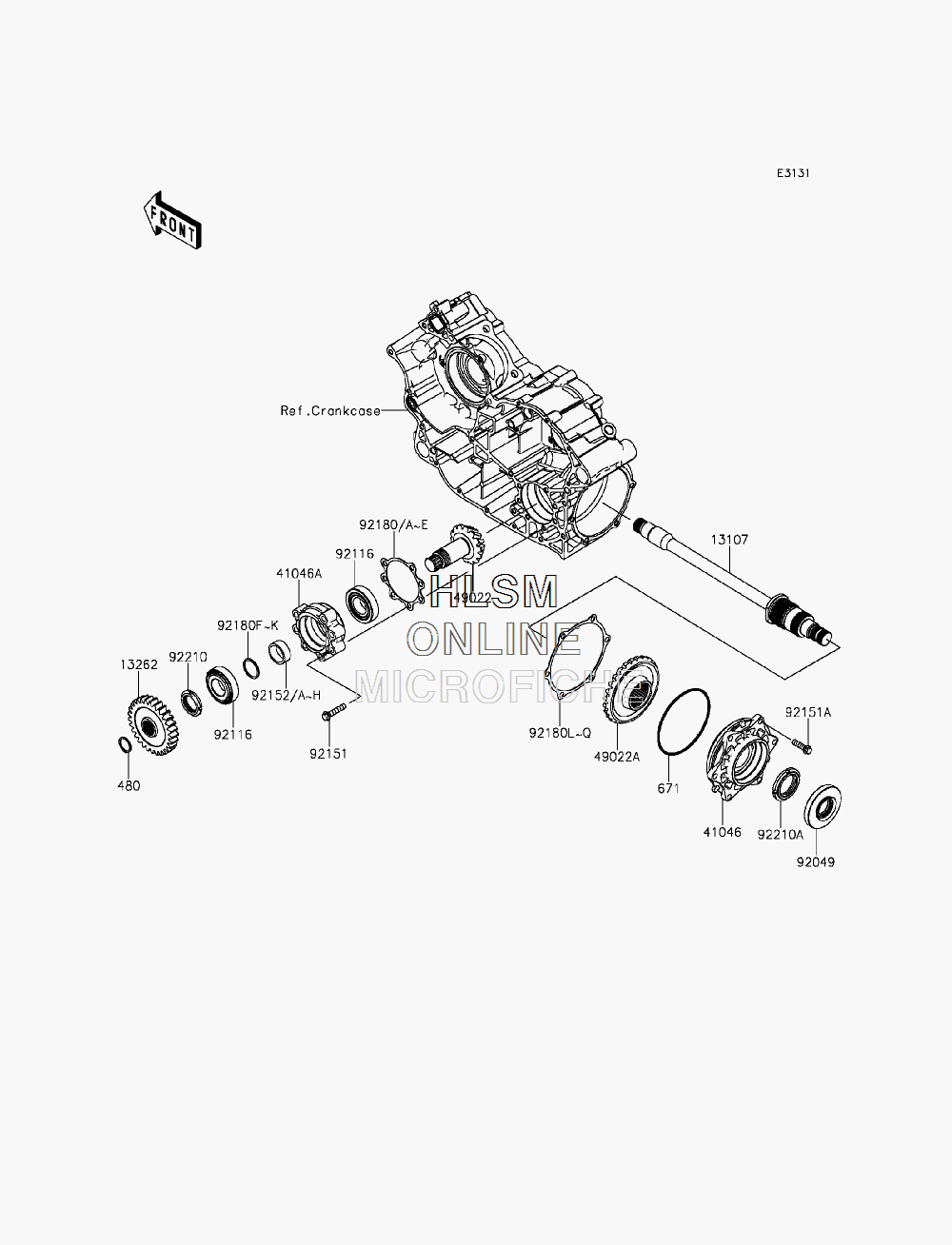

FRONT BEVEL GEAR для Kawasaki TERYX4 (KRT800BFF) - 2015 года выпуска
-
№АртикулНазвание
-
480480J2400 CIRCLIP-TYPE-C,24MMCIRCLIP-TYPE-C,24MM
-
1310713107-0766 SHAFT,OUTPUTSHAFT,OUTPUT
-
1326213262-0962 GEAR,OUTPUT,29TGEAR,OUTPUT,29T
-
4104641046-0026 HOUSING-BEARING,DRIVENHOUSING-BEARING,DRIVEN
-
41046A41046-0572 HOUSING-BEARING,DRIVEHOUSING-BEARING,DRIVE
-
4902249022-0560 GEAR-BEVEL,DRIVE,14TGEAR-BEVEL,DRIVE,14T
-
49022A49022-0561 GEAR-BEVEL,DRIVEN,27TGEAR-BEVEL,DRIVEN,27T
-
9204992049-0712 SEAL-OILSEAL-OIL
-
9211692116-0568 BEARING-ROLLER,HR30206JUQU42BEARING-ROLLER,HR30206JUQU42
-
9215192151-1621 BOLT,8X40BOLT,8X40
-
92151A92151-1688 BOLT-FLANGED-SMALL,8X30BOLT-FLANGED-SMALL,8X30
-
9215292152-0947 COLLAR,30.2X37X13.1COLLAR,30.2X37X13.1
-
92152A92152-0948 COLLAR,30.2X37X13.2COLLAR,30.2X37X13.2
-
92152B92152-0949 COLLAR,30.2X37X13.3COLLAR,30.2X37X13.3
-
92152C92152-0950 COLLAR,30.2X37X13.4COLLAR,30.2X37X13.4
-
92152D92152-0951 COLLAR,30.2X37X13.5COLLAR,30.2X37X13.5
-
92152E92152-0952 COLLAR,30.2X37X13.6COLLAR,30.2X37X13.6
-
92152F92152-0953 COLLAR,30.2X37X13.7COLLAR,30.2X37X13.7
-
92152G92152-0954 COLLAR,30.2X37X13.8COLLAR,30.2X37X13.8
-
92152H92152-0955 COLLAR,30.2X37X13.9COLLAR,30.2X37X13.9
-
9218092180-0702 SHIM,DRIVE,T=0.15SHIM,DRIVE,T=0.15
-
92180A92180-0703 SHIM,DRIVE,T=0.20SHIM,DRIVE,T=0.20
-
92180B92180-0704 SHIM,DRIVE,T=0.50SHIM,DRIVE,T=0.50
-
92180C92180-0705 SHIM,DRIVE,T=0.80SHIM,DRIVE,T=0.80
-
92180D92180-0706 SHIM,DRIVE,T=1.0SHIM,DRIVE,T=1.0
-
92180E92180-0707 SHIM,DRIVE,T=1.2SHIM,DRIVE,T=1.2
-
92180F92180-0708 SHIM,DRIVE,T=1.70SHIM,DRIVE,T=1.70
-
92180G92180-0709 SHIM,DRIVE,T=1.72SHIM,DRIVE,T=1.72
-
92180H92180-0710 SHIM,DRIVE,T=1.74SHIM,DRIVE,T=1.74
-
92180I92180-0711 SHIM,DRIVE,T=1.76SHIM,DRIVE,T=1.76
-
92180J92180-0712 SHIM,DRIVE,T=1.78SHIM,DRIVE,T=1.78
-
92180K92180-0713 SHIM,DRIVE,T=1.80SHIM,DRIVE,T=1.80
-
92180L92180-0714 SHIM,DRIVEN,T=0.15SHIM,DRIVEN,T=0.15
-
92180M92180-0715 SHIM,DRIVEN,T=0.20SHIM,DRIVEN,T=0.20
-
92180N92180-0716 SHIM,DRIVEN,T=0.50SHIM,DRIVEN,T=0.50
-
92180O92180-0717 SHIM,DRIVEN,T=0.80SHIM,DRIVEN,T=0.80
-
92180P92180-0718 SHIM,DRIVEN,T=1.0SHIM,DRIVEN,T=1.0
-
92180Q92180-0719 SHIM,DRIVEN,T=1.2SHIM,DRIVEN,T=1.2
-
9221092210-0762 NUT,30MMNUT,30MM
-
92210A92210-0795 NUT,40MMNUT,40MM
-
671671D25115 O RING,115MMO RING,115MM
