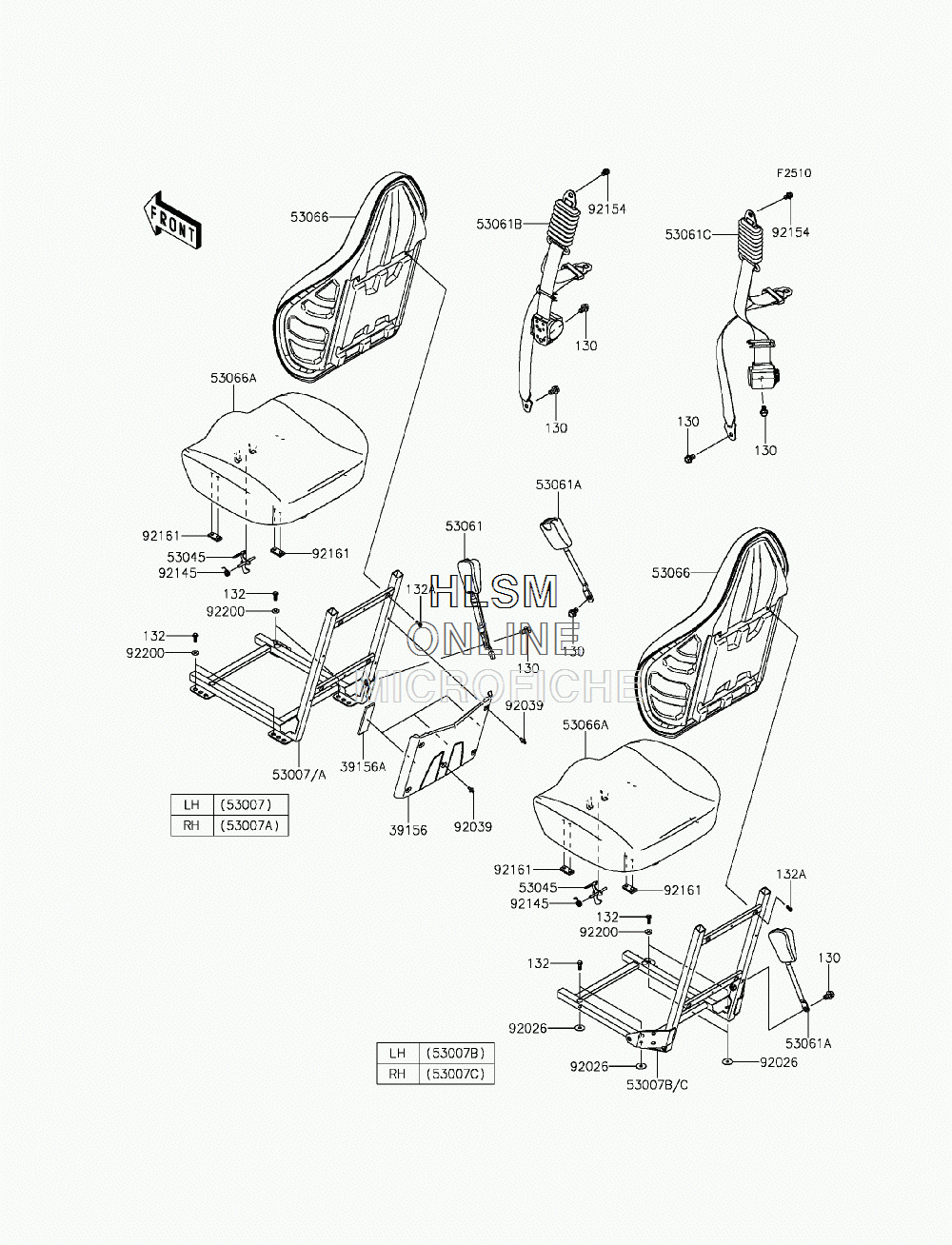

SEAT для Kawasaki TERYX4 (KRT800BFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED,12X20BOLT-FLANGED,12X20
-
132132BA0822 BOLT-FLANGED-SMALL,8X22BOLT-FLANGED-SMALL,8X22
-
132A132BB0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
3915639156-0805 PAD,SEAT BACKPAD,SEAT BACK
-
39156A39156-0929 PAD, FRONT SEAT BACKPAD, FRONT SEAT BACK
-
5300753007-0347 FRAME-SEAT, FRONT, LEFT HANDFRAME-SEAT, FRONT, LEFT HAND
-
53007A53007-0348 FRAME-SEAT, FRONT, RIGHT HANDFRAME-SEAT, FRONT, RIGHT HAND
-
53007B53007-0349 FRAME-SEAT, REAR, LEFT HANDFRAME-SEAT, REAR, LEFT HAND
-
53007C53007-0350 FRAME-SEAT, REAR, RIGHT HANDFRAME-SEAT, REAR, RIGHT HAND
-
5304553045-0019 HOOK-ASSYHOOK-ASSY
-
5306153061-0038 BELT-SEAT,BUCKLE,SW.BELT-SEAT,BUCKLE,SW.
-
53061A53061-0039 BELT-SEAT,BUCKLEBELT-SEAT,BUCKLE
-
53061B53061-0040 BELT-SEAT, RETRACTOR,L=2500BELT-SEAT, RETRACTOR,L=2500
-
53061C53061-0041 BELT-SEAT, RETRACTOR,L=2650BELT-SEAT, RETRACTOR,L=2650
-
5306653066-0394-41H SEAT-ASSY,BACK,BLACK/SILVER (FOR 839)SEAT-ASSY,BACK,BLACK/SILVER (FOR 839)
-
53066A53066-0420-13Z SEAT-ASSY,BOTTOM,SILVER/BLACK (FOR 839)SEAT-ASSY,BOTTOM,SILVER/BLACK (FOR 839)
-
9202692026-0714 SPACER,8.6X30X4.5SPACER,8.6X30X4.5
-
9203992039-0713 RIVET,FASTENERRIVET,FASTENER
-
9214592145-0022 SPRING,SEAT LATCHSPRING,SEAT LATCH
-
9215492154-1136 BOLT,10X16BOLT,10X16
-
9216192161-1489 DAMPER,SEATDAMPER,SEAT
-
9220092200-0205 WASHER,8.2X20.0X2.5WASHER,8.2X20.0X2.5
