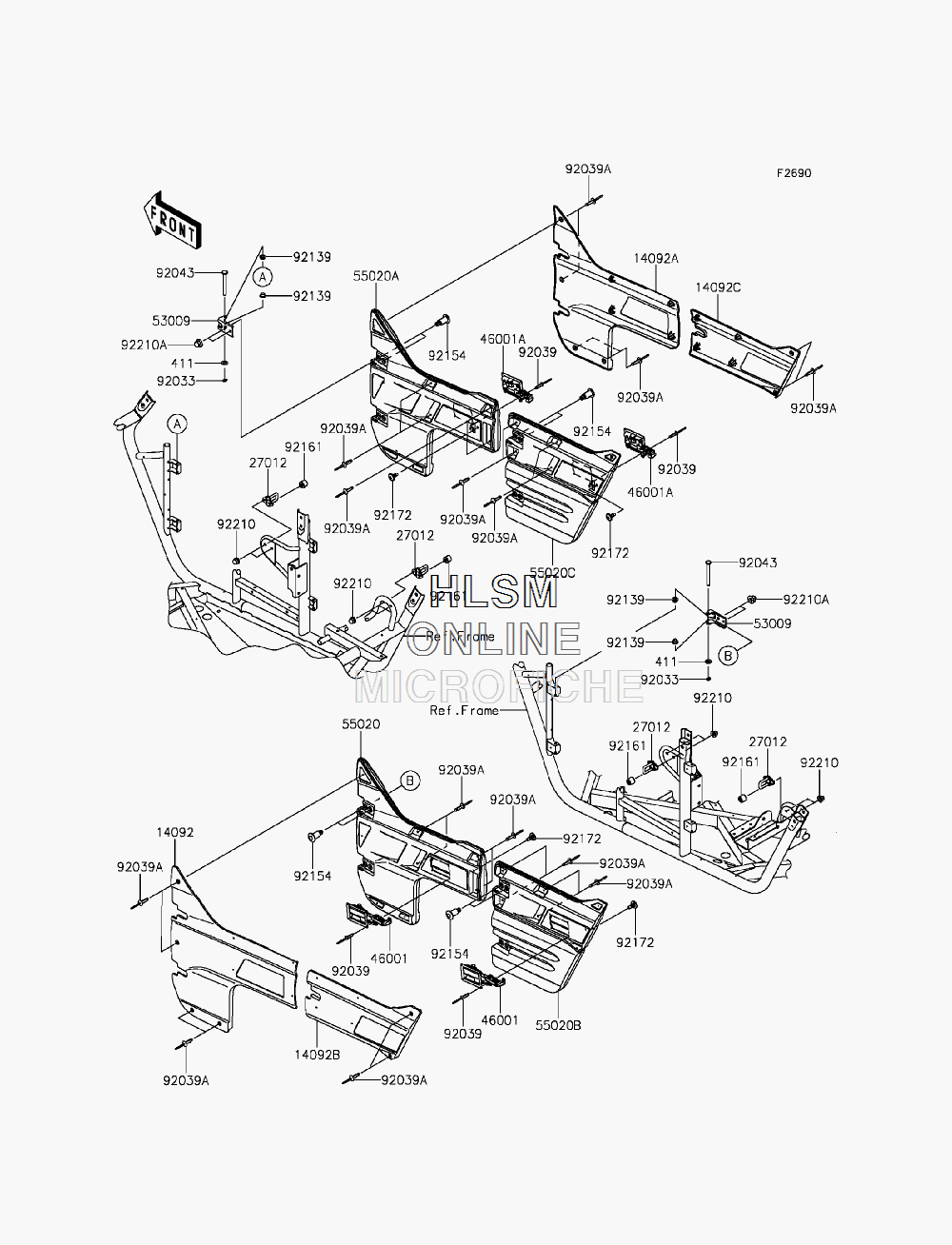

DOOR для Kawasaki TERYX4 (KRT800BFF) - 2015 года выпуска
-
№АртикулНазвание
-
411411AB0600 WASHER-PLAIN,6.5X13X1WASHER-PLAIN,6.5X13X1
-
1409214092-0748-839 COVER,SIDE GUARD, FRONT, LEFT HAND,(S.BLACK) (FOR 839)COVER,SIDE GUARD, FRONT, LEFT HAND,(S.BLACK) (FOR 839)
-
14092A14092-0749-839 COVER,SIDE GUARD, FRONT, RIGHT HAND,(S.BLACK) (FOR 839)COVER,SIDE GUARD, FRONT, RIGHT HAND,(S.BLACK) (FOR 839)
-
14092B14092-0751-839 COVER,SIDE GUARD, REAR, LEFT HAND,(S.BLACK) (FOR 839)COVER,SIDE GUARD, REAR, LEFT HAND,(S.BLACK) (FOR 839)
-
14092C14092-0752-839 COVER,SIDE GUARD, REAR, RIGHT HAND,(S.BLACK) (FOR 839)COVER,SIDE GUARD, REAR, RIGHT HAND,(S.BLACK) (FOR 839)
-
2701227012-0705 HOOKHOOK
-
4600146001-0556 HANDLE-ASSY,SIDE GUARD, LEFT HANDHANDLE-ASSY,SIDE GUARD, LEFT HAND
-
46001A46001-0557 HANDLE-ASSY,SIDE GUARD, RIGHT HANDHANDLE-ASSY,SIDE GUARD, RIGHT HAND
-
5300953009-0303 HINGEHINGE
-
5502055020-0737 GUARD,SIDE, FRONT, LEFT HANDGUARD,SIDE, FRONT, LEFT HAND
-
55020A55020-0738 GUARD,SIDE, FRONT, RIGHT HANDGUARD,SIDE, FRONT, RIGHT HAND
-
55020B55020-0739 GUARD,SIDE, REAR, LEFT HANDGUARD,SIDE, REAR, LEFT HAND
-
55020C55020-0740 GUARD,SIDE, REAR, RIGHT HANDGUARD,SIDE, REAR, RIGHT HAND
-
9203392033-0719 RING-SNAPRING-SNAP
-
9203992039-0703 RIVET,4.0X17.5RIVET,4.0X17.5
-
92039A92039-0704 RIVET,4.9X19.8RIVET,4.9X19.8
-
9204392043-0743 PIN,6X56PIN,6X56
-
9213992139-0709 BUSHING,6X8X6BUSHING,6X8X6
-
9215492154-0712 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
9216192161-1456 DAMPER,9X28X24.3DAMPER,9X28X24.3
-
9217292172-0711 SCREW,6X16SCREW,6X16
-
9221092210-0003 NUT,CAP,6MMNUT,CAP,6MM
-
92210A92210-0488 NUT,CAP,8MMNUT,CAP,8MM
