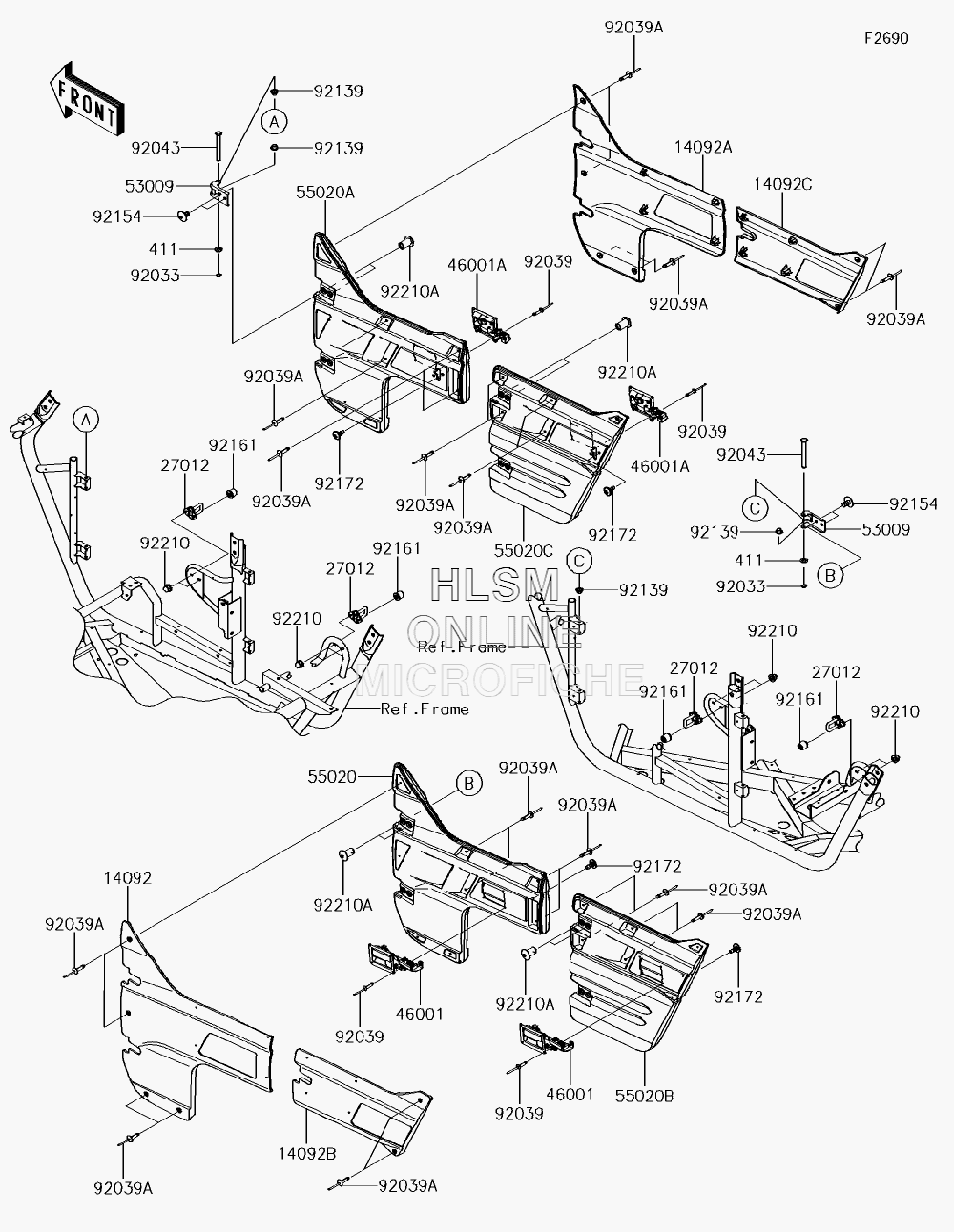

DOOR для Kawasaki TERYX4 LE (KRT800GJF) - 2018 года выпуска
-
№АртикулНазвание
-
1409214092-0748-839 COVER, SIDE GUARD, FRONT, LEFT HAND, (S.BLACK) (FOR ALL COLORS)COVER, SIDE GUARD, FRONT, LEFT HAND, (S.BLACK) (FOR ALL COLORS)
-
14092A14092-0749-839 COVER, SIDE GUARD, FRONT, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)COVER, SIDE GUARD, FRONT, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)
-
14092B14092-0751-839 COVER, SIDE GUARD, REAR, LEFT HAND, (S.BLACK) (FOR ALL COLORS)COVER, SIDE GUARD, REAR, LEFT HAND, (S.BLACK) (FOR ALL COLORS)
-
14092C14092-0752-839 COVER, SIDE GUARD, REAR, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)COVER, SIDE GUARD, REAR, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)
-
2701227012-0705 HOOKHOOK
-
411411AB0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
4600146001-0556 HANDLE-ASSY, SIDE GUARD, LEFT HANDHANDLE-ASSY, SIDE GUARD, LEFT HAND
-
46001A46001-0557 HANDLE-ASSY, SIDE GUARD, RIGHT HANDHANDLE-ASSY, SIDE GUARD, RIGHT HAND
-
5300953009-0303 HINGEHINGE
-
5502055020-0737 GUARD, SIDE, FRONT, LEFT HANDGUARD, SIDE, FRONT, LEFT HAND
-
55020A55020-0738 GUARD, SIDE, FRONT, RIGHT HANDGUARD, SIDE, FRONT, RIGHT HAND
-
55020B55020-0739 GUARD, SIDE, REAR, LEFT HANDGUARD, SIDE, REAR, LEFT HAND
-
55020C55020-0740 GUARD, SIDE, REAR, RIGHT HANDGUARD, SIDE, REAR, RIGHT HAND
-
9203392033-0719 RING-SNAPRING-SNAP
-
9203992039-0703 RIVET, 4.0X17.5RIVET, 4.0X17.5
-
92039A92039-0769 RIVET, 5X23.3RIVET, 5X23.3
-
9204392043-0743 PIN, 6X56PIN, 6X56
-
9213992139-0709 BUSHING, 6X8X6BUSHING, 6X8X6
-
9215492154-1911 BOLT, TORX, 8X13BOLT, TORX, 8X13
-
9216192161-1456 DAMPER, 9X28X24.3DAMPER, 9X28X24.3
-
9217292172-0711 SCREW, 6X16SCREW, 6X16
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-1442 NUT, TORX, 8MMNUT, TORX, 8MM
