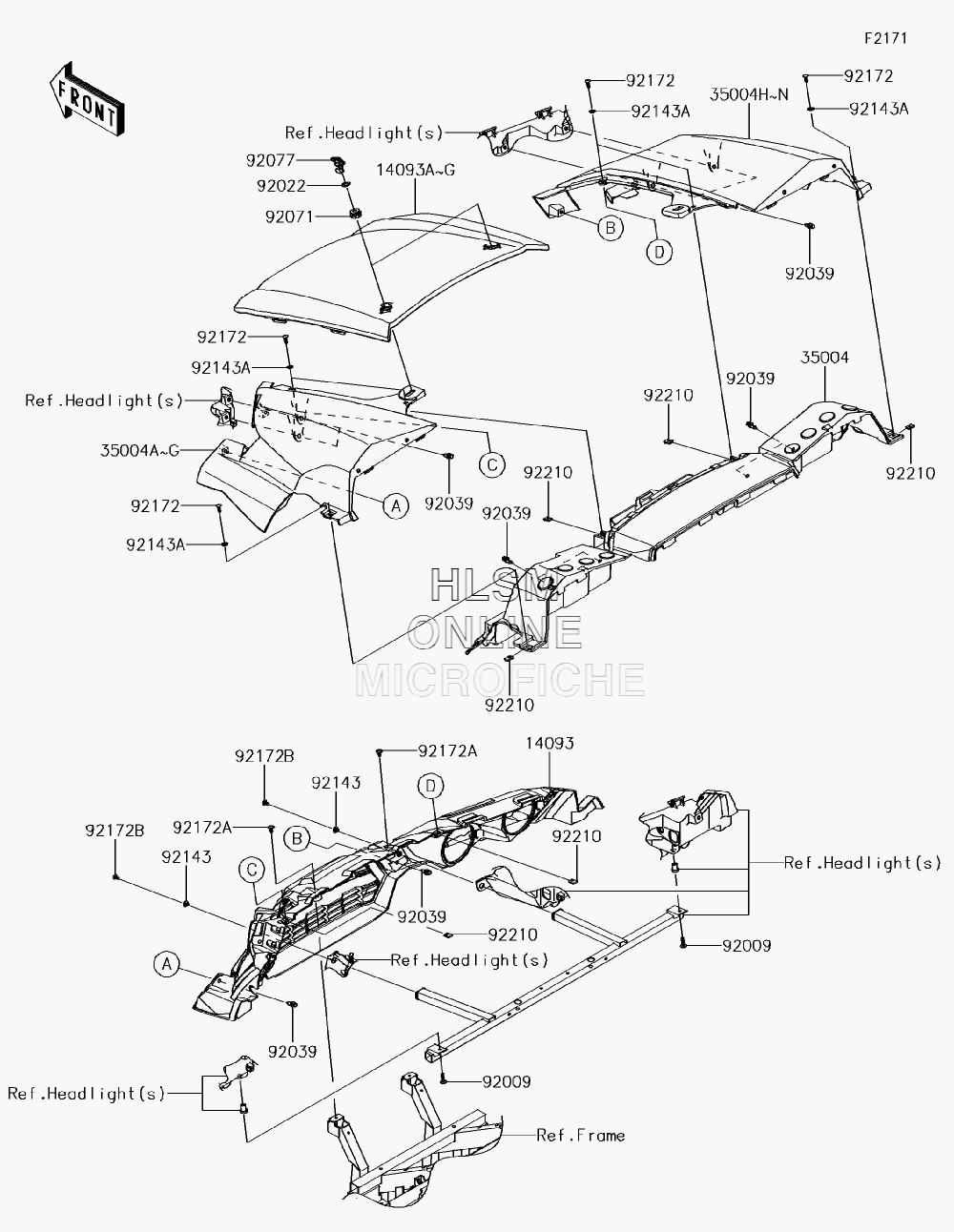

FENDER - FRONT для Kawasaki TERYX4 LE (KRT800GJF) - 2018 года выпуска
-
№АртикулНазвание
-
1409314093-0202 COVER, FRONT GRILLCOVER, FRONT GRILL
-
14093C14093-0211-57A COVER, HOOD, (C.L.GREEN) (FOR 57A)COVER, HOOD, (C.L.GREEN) (FOR 57A)
-
14093F14093-0211-57K COVER, HOOD, (C.P.BLUE) (FOR 57K)COVER, HOOD, (C.P.BLUE) (FOR 57K)
-
3500435004-0345 FENDER-FRONT, REARFENDER-FRONT, REAR
-
35004C35004-0346-57A FENDER-FRONT, LEFT HAND, (C.L.GREEN) (FOR 57A)FENDER-FRONT, LEFT HAND, (C.L.GREEN) (FOR 57A)
-
35004E35004-0346-57K FENDER-FRONT, LEFT HAND, (C.P.BLUE) (FOR 57K)FENDER-FRONT, LEFT HAND, (C.P.BLUE) (FOR 57K)
-
35004J35004-0347-57A FENDER-FRONT, RIGHT HAND, (C.L.GREEN) (FOR 57A)FENDER-FRONT, RIGHT HAND, (C.L.GREEN) (FOR 57A)
-
35004L35004-0347-57K FENDER-FRONT, RIGHT HAND, (C.P.BLUE) (FOR 57K)FENDER-FRONT, RIGHT HAND, (C.P.BLUE) (FOR 57K)
-
9200992009-1465 SCREW, 6X25SCREW, 6X25
-
9202292022-072 WASHER, 12.5X22X1.2WASHER, 12.5X22X1.2
-
9203992039-0776 RIVETRIVET
-
9207192071-0746 GROMMETGROMMET
-
9207792077-0033 KNOBKNOB
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92172A92172-0711 SCREW, 6X16SCREW, 6X16
-
92172B92172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
