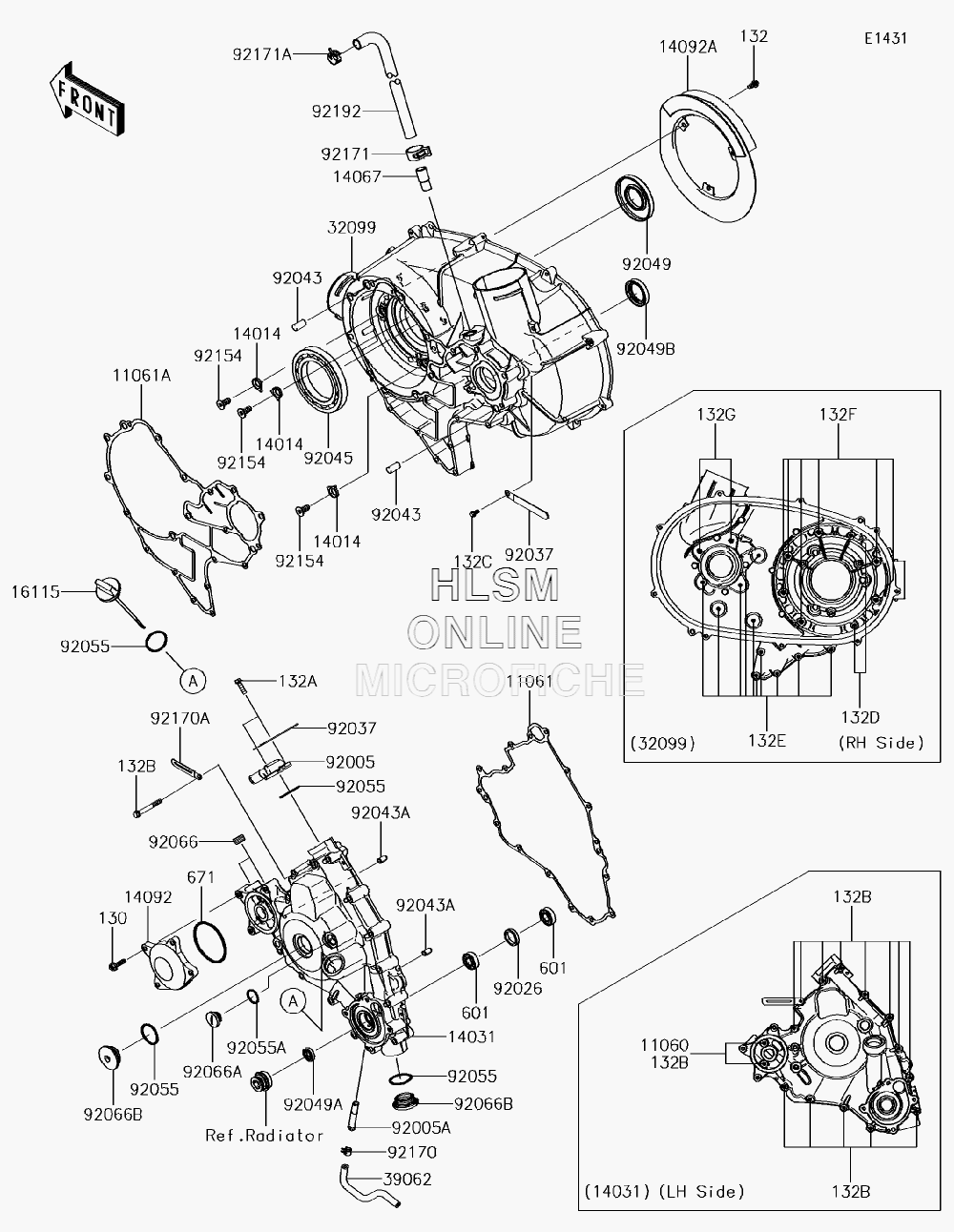

ENGINE COVER(S) для Kawasaki TERYX4 LE (KRT800GJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106011060-1994 GASKET, 6.2X12X0.3GASKET, 6.2X12X0.3
-
1106111061-0728 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061A11061-0729 GASKET, CVT CASEGASKET, CVT CASE
-
130130CA0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132B132BA0650 BOLT-FLANGED-SMALL, 6X50BOLT-FLANGED-SMALL, 6X50
-
132C132BD0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132D132BD0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132E132BD0645 BOLT-FLANGED-SMALL, 6X45BOLT-FLANGED-SMALL, 6X45
-
132F132BD0835 BOLT-FLANGED-SMALL, 8X35BOLT-FLANGED-SMALL, 8X35
-
132G132BD0850 BOLT-FLANGED-SMALL, 8X50BOLT-FLANGED-SMALL, 8X50
-
1401414014-0556 PLATE-POSITIONPLATE-POSITION
-
1403114031-0589 COVER-GENERATORCOVER-GENERATOR
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
1409214092-0877 COVER, OIL COOLERCOVER, OIL COOLER
-
14092A14092-1051 COVERCOVER
-
1611516115-0705 CAP-OIL FILLERCAP-OIL FILLER
-
3209932099-0770 CASE, CVTCASE, CVT
-
3906239062-0598 HOSE-COOLING, DRAINHOSE-COOLING, DRAIN
-
601601A6001 BEARING-BALLBEARING-BALL
-
671671B2565 O RING, 65MMO RING, 65MM
-
9200592005-0712 FITTINGFITTING
-
92005A92005-1264 FITTINGFITTING
-
9202692026-0711 SPACER, 22X28X5SPACER, 22X28X5
-
9203792037-1993 CLAMPCLAMP
-
9204392043-0142 PIN, 10X20PIN, 10X20
-
92043A92043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-0709 BEARING-BALL, 16014CS45BEARING-BALL, 16014CS45
-
9204992049-0713 SEAL-OIL, 35X77X9SEAL-OIL, 35X77X9
-
92049A92049-0783 SEAL-OIL, 12X22X5SEAL-OIL, 12X22X5
-
92049B92049-1575 SEAL-OIL, HTC 30X45X8SEAL-OIL, HTC 30X45X8
-
9205592055-0724 RING-O, 31.2X2.4RING-O, 31.2X2.4
-
92055A92055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-0003 PLUG, PT3/8X10PLUG, PT3/8X10
-
92066A92066-0011 PLUG, COVERPLUG, COVER
-
92066B92066-0712 PLUGPLUG
-
9215492154-0978 BOLT, FLAT, 8X13.6BOLT, FLAT, 8X13.6
-
9217092170-1493 CLAMPCLAMP
-
92170A92170-1514 CLAMPCLAMP
-
9217192171-0329 CLAMPCLAMP
-
92171A92171-1277 CLAMPCLAMP
-
9219292192-0945 TUBE, BREATHERTUBE, BREATHER
