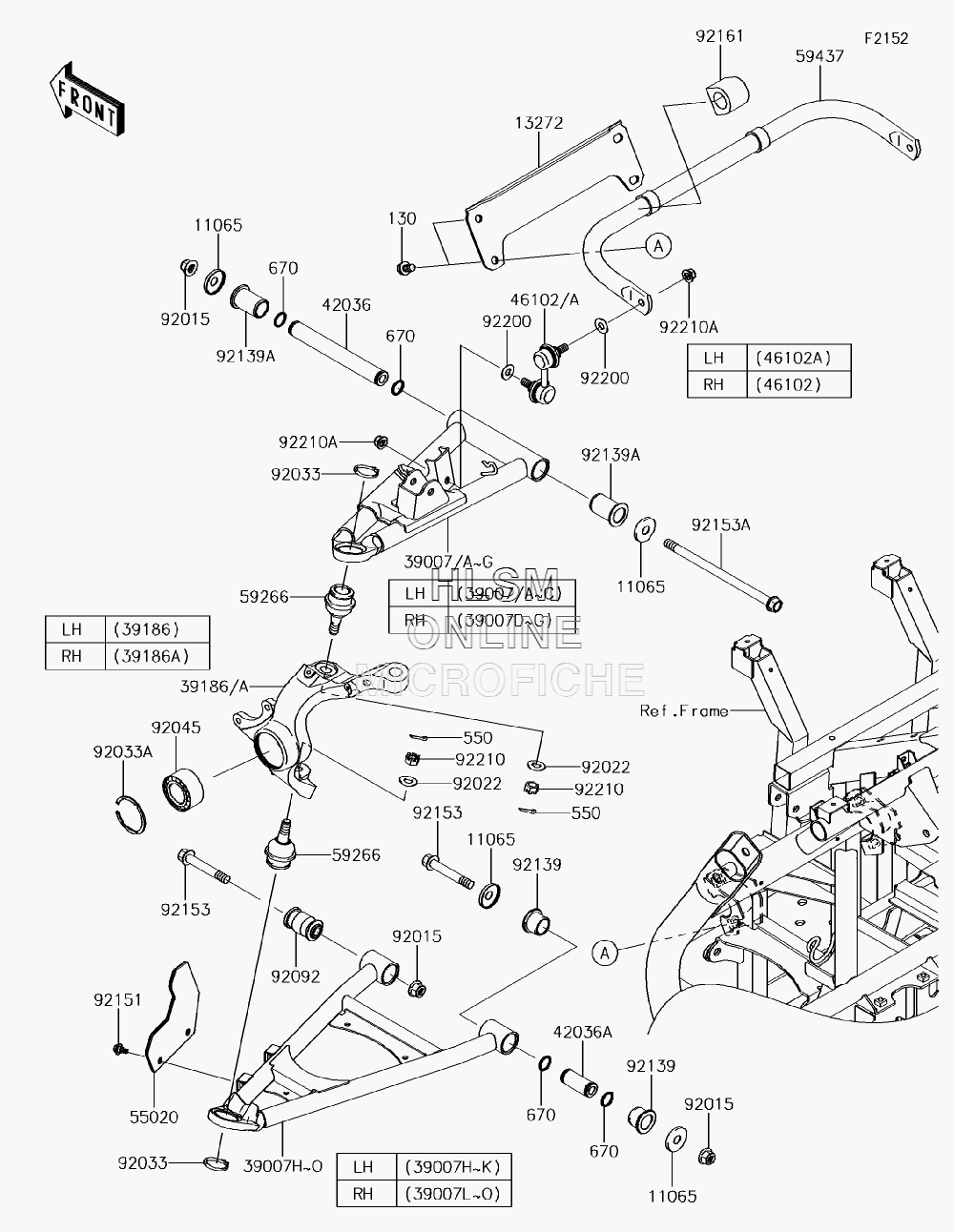

SUSPENSION - FRONT для Kawasaki TERYX4 LE (KRT800GJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106511065-0253 CAPCAP
-
130130CA1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
1327213272-1650 PLATEPLATE
-
3900739007-0367-42Q ARM-SUSP, FRONT, UPPER, LEFT HAND, (C.L.GREEN) (FOR ALL COLORS)ARM-SUSP, FRONT, UPPER, LEFT HAND, (C.L.GREEN) (FOR ALL COLORS)
-
39007C39007-0367-57M ARM-SUSP, FRONT, UPPER, LEFT HAND, (P.C.P.BLUE) (FOR 57K)ARM-SUSP, FRONT, UPPER, LEFT HAND, (P.C.P.BLUE) (FOR 57K)
-
39007D39007-0368-42Q ARM-SUSP, FRONT, UPPER, RIGHT HAND, (C.L.GREEN) (FOR ALL COLORS)ARM-SUSP, FRONT, UPPER, RIGHT HAND, (C.L.GREEN) (FOR ALL COLORS)
-
39007G39007-0368-57M ARM-SUSP, FRONT, UPPER, RIGHT HAND, (P.C.P.BLUE) (FOR 57K)ARM-SUSP, FRONT, UPPER, RIGHT HAND, (P.C.P.BLUE) (FOR 57K)
-
39007H39007-0389-42Q ARM-SUSP, FRONT, LOWER, LEFT HAND, (C.L.GREEN) (FOR ALL COLORS)ARM-SUSP, FRONT, LOWER, LEFT HAND, (C.L.GREEN) (FOR ALL COLORS)
-
39007K39007-0389-57M ARM-SUSP, FRONT, LOWER, LEFT HAND, (P.C.P.BLUE) (FOR 57K)ARM-SUSP, FRONT, LOWER, LEFT HAND, (P.C.P.BLUE) (FOR 57K)
-
39007L39007-0390-42Q ARM-SUSP, FRONT, LOWER, RIGHT HAND, (C.L.GREEN) (FOR ALL COLORS)ARM-SUSP, FRONT, LOWER, RIGHT HAND, (C.L.GREEN) (FOR ALL COLORS)
-
39007O39007-0390-57M ARM-SUSP, FRONT, LOWER, RIGHT HAND, (P.C.P.BLUE) (FOR 57K)ARM-SUSP, FRONT, LOWER, RIGHT HAND, (P.C.P.BLUE) (FOR 57K)
-
3918639186-0311 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0312 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
4203642036-0061 SLEEVESLEEVE
-
42036A42036-0062 SLEEVESLEEVE
-
4610246102-0100 ROD, STABILIZER, RIGHT HANDROD, STABILIZER, RIGHT HAND
-
46102A46102-0101 ROD, STABILIZER, LEFT HANDROD, STABILIZER, LEFT HAND
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
5502055020-0839 GUARD, FRONT ARMGUARD, FRONT ARM
-
5926659266-0711 JOINT-BALLJOINT-BALL
-
5943759437-0010 STABILIZER, FRONTSTABILIZER, FRONT
-
670670B2018 O RING, 18MMO RING, 18MM
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202292022-1831 WASHERWASHER
-
9203392033-1262 RING-SNAP, C-TYPE, 32MMRING-SNAP, C-TYPE, 32MM
-
92033A92033-1274 RING-SNAP, 55MMRING-SNAP, 55MM
-
9204592045-0800 BEARING-BALL, 30X55X32BEARING-BALL, 30X55X32
-
9209292092-0555 BUSHING-RUBBERBUSHING-RUBBER
-
9213992139-0231 BUSHINGBUSHING
-
92139A92139-0806 BUSHING, 22.4X28.2X46BUSHING, 22.4X28.2X46
-
9215192151-1703 BOLT, FLANGED, 6X13BOLT, FLANGED, 6X13
-
9215392153-1733 BOLT, FLANGED, 12X76.5BOLT, FLANGED, 12X76.5
-
92153A92153-1958 BOLT, FLANGED, 12X213BOLT, FLANGED, 12X213
-
9216192161-1508 DAMPERDAMPER
-
9220092200-2009 WASHER, 10.3X23X1.6WASHER, 10.3X23X1.6
-
9221092210-0395 NUT, CASTLE, 12MMNUT, CASTLE, 12MM
-
92210A92210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
