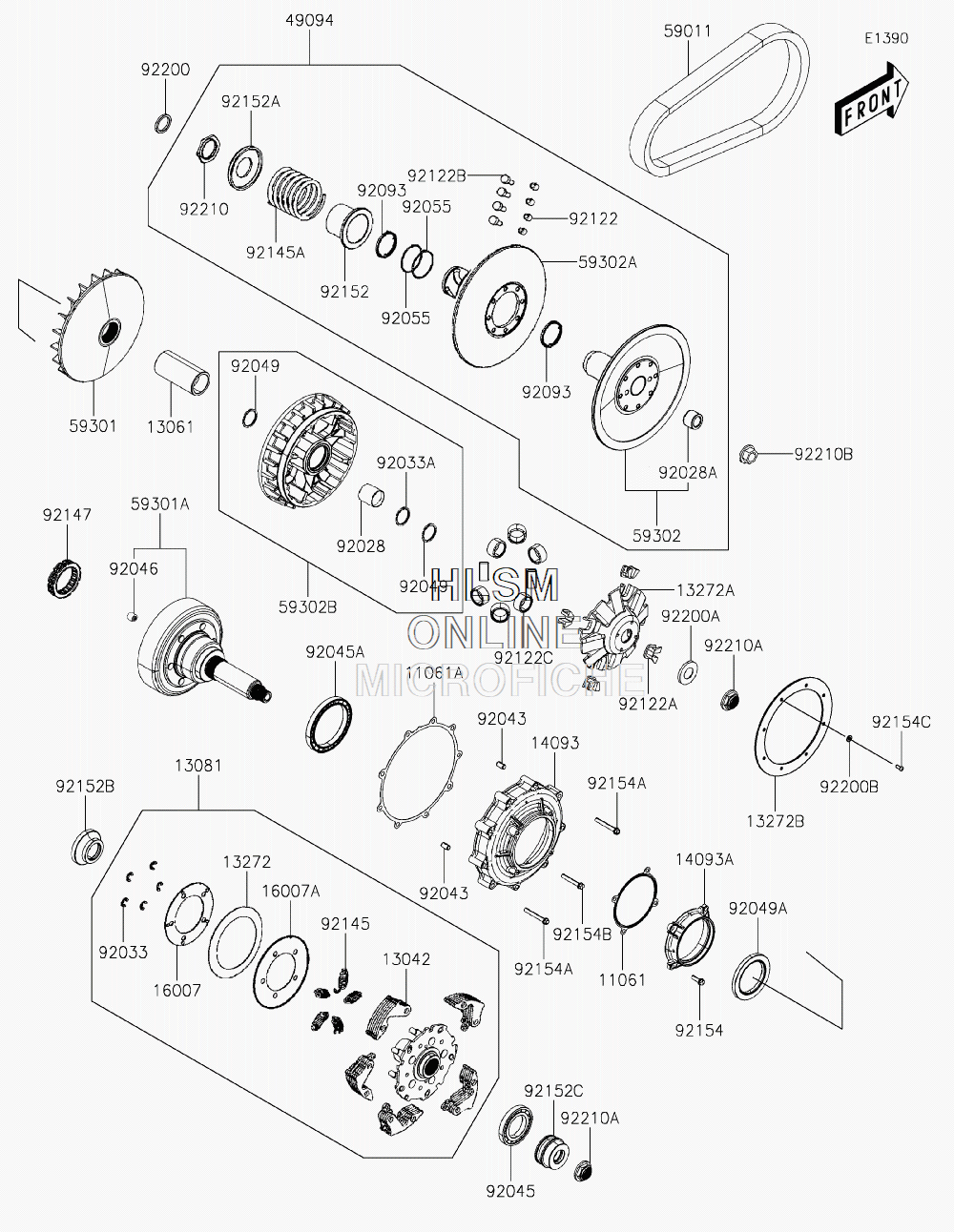

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki MULE PRO-MX EPS (KAF700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-Y059 GASKET, PRIMARY SHAFT COVERGASKET, PRIMARY SHAFT COVER
-
11061A11061-Y060 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1304213042-Y008 WEIGHT, CLUTCHWEIGHT, CLUTCH
-
1306113061-Y004 BOSS, DRIVE FACEBOSS, DRIVE FACE
-
1308113081-Y001 CLUTCH-ASSY, PRIMARYCLUTCH-ASSY, PRIMARY
-
1327213272-Y027 PLATE, ADJUSTER SPRINGPLATE, ADJUSTER SPRING
-
13272A13272-Y028 PLATE, RAMPPLATE, RAMP
-
13272B13272-Y039 PLATEPLATE
-
1409314093-Y004 COVER, CLUTCHCOVER, CLUTCH
-
14093A14093-Y005 COVER, PRIMARY SHAFTCOVER, PRIMARY SHAFT
-
1600716007-Y007 SEAT-SPRINGSEAT-SPRING
-
16007A16007-Y008 SEAT-SPRINGSEAT-SPRING
-
4909449094-Y007 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-Y006 BELT, DRIVEBELT, DRIVE
-
5930159301-Y006 SHEAVE-MOVABLESHEAVE-MOVABLE
-
59301A59301-Y007 SHEAVE-MOVABLE, PRIMARY DRIVESHEAVE-MOVABLE, PRIMARY DRIVE
-
5930259302-Y017 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302A59302-Y018 SHEAVE-COMPSHEAVE-COMP
-
59302B59302-Y019 SHEAVE-COMPSHEAVE-COMP
-
9202892028-Y002 BUSHING, 42X47X45.6BUSHING, 42X47X45.6
-
92028A92028-Y003 BUSHINGBUSHING
-
9203392033-Y042 RING-SNAP, 7MMRING-SNAP, 7MM
-
92033A92033-Y043 RING-SNAP, 46.5MMRING-SNAP, 46.5MM
-
9204392043-Y012 PIN, 8X14PIN, 8X14
-
9204592045-Y046 BEARING-BALL, 16008BEARING-BALL, 16008
-
92045A92045-Y052 BEARING-BALL, 6815BEARING-BALL, 6815
-
9204692046-Y010 BEARING-NEEDLE, 14X22X20BEARING-NEEDLE, 14X22X20
-
9204992049-Y043 SEAL-OIL, 42X51X4SEAL-OIL, 42X51X4
-
92049A92049-Y047 SEAL-OIL, 6.5X80X7SEAL-OIL, 6.5X80X7
-
9205592055-Y065 RING-ORING-O
-
9209392093-Y045 SEAL, DRIVEN FACE, 40.2X47X4SEAL, DRIVEN FACE, 40.2X47X4
-
9212292122-Y008 ROLLER, GUIDEROLLER, GUIDE
-
92122A92122-Y018 ROLLERROLLER
-
92122B92122-Y020 ROLLER, GUIDEROLLER, GUIDE
-
92122C92122-Y022 ROLLER, COMP, WEIGHTROLLER, COMP, WEIGHT
-
9214592145-Y058 SPRING, CLUTCHSPRING, CLUTCH
-
92145A92145-Y059 SPRING, DRIVEN FACESPRING, DRIVEN FACE
-
9214792147-Y001 BEARING, ONE WAYBEARING, ONE WAY
-
9215292152-Y058 COLLAR, SEALCOLLAR, SEAL
-
92152A92152-Y059 COLLAR, SPRINGCOLLAR, SPRING
-
92152B92152-Y069 COLLAR, CLUTCHCOLLAR, CLUTCH
-
92152C92152-Y070 COLLAR, PRIMARY DRIVE SHAFTCOLLAR, PRIMARY DRIVE SHAFT
-
9215492154-Y132 BOLT, FLANGE, 6X18BOLT, FLANGE, 6X18
-
92154A92154-Y135 BOLT, FLANGE, 6X45BOLT, FLANGE, 6X45
-
92154B92154-Y209 BOLT, FLANGE, 6X40BOLT, FLANGE, 6X40
-
92154C92154-Y224 BOLT, 4X12BOLT, 4X12
-
9220092200-Y073 WASHER, 25X33X4WASHER, 25X33X4
-
92200A92200-Y087 WASHER, THRUST, 20MMWASHER, THRUST, 20MM
-
92200B92200-Y103 WASHERWASHER
-
9221092210-Y082 NUT, SPECIAL, 36MMNUT, SPECIAL, 36MM
-
92210A92210-Y083 NUT, FLANGE, 20MMNUT, FLANGE, 20MM
-
92210B92210-Y085 NUTNUT
