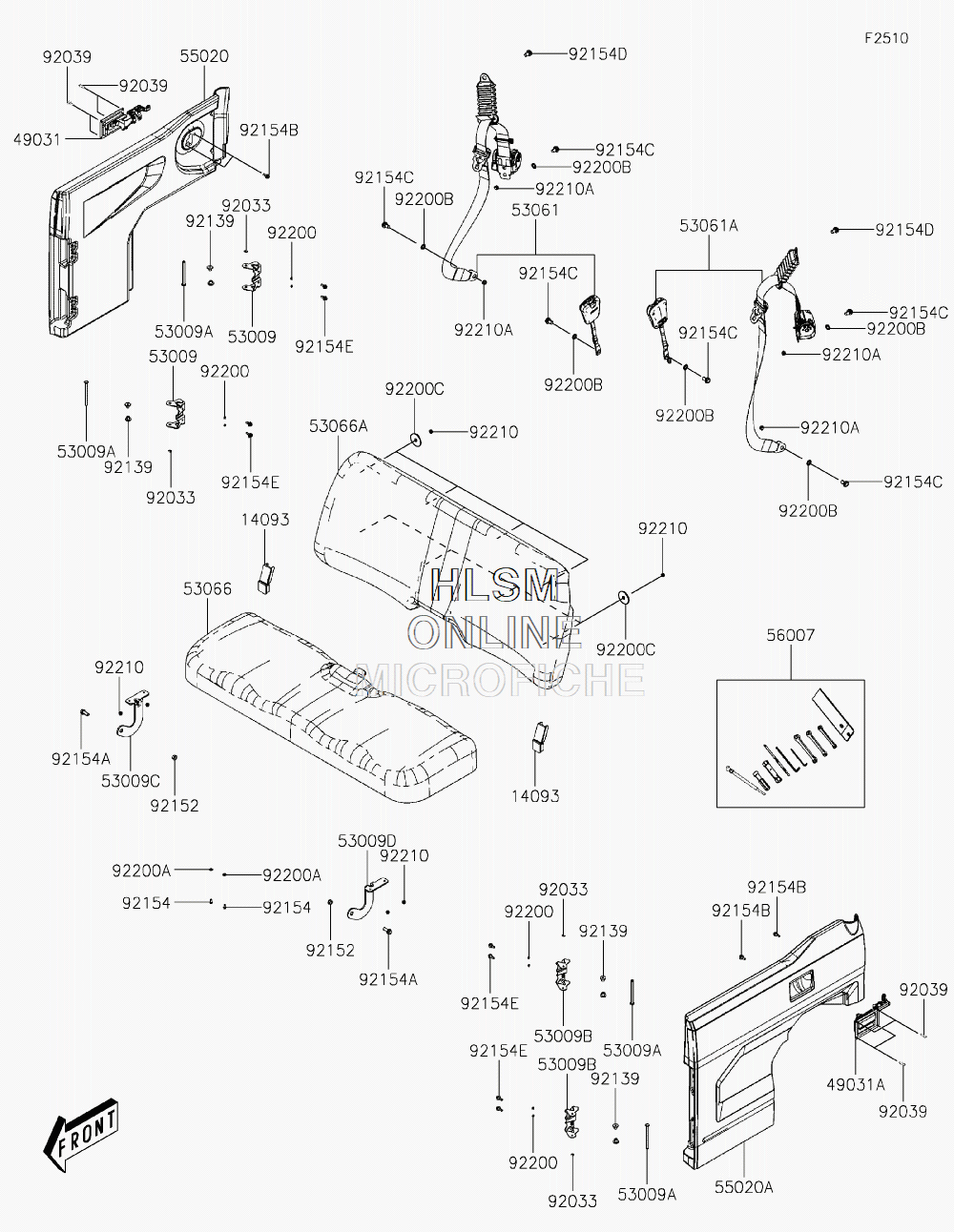

SEAT для Kawasaki MULE PRO-MX EPS (KAF700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1409314093-Y028 COVER, SEATCOVER, SEAT
-
4903149031-Y001 LATCH, RIGHT HANDLATCH, RIGHT HAND
-
49031A49031-Y002 LATCH, LEFT HANDLATCH, LEFT HAND
-
5300953009-Y002 HINGE, RIGHT HANDHINGE, RIGHT HAND
-
53009A53009-Y003 HINGEHINGE
-
53009B53009-Y004 HINGE, LEFT HANDHINGE, LEFT HAND
-
53009C53009-Y005 HINGE, SEAT, RIGHT HANDHINGE, SEAT, RIGHT HAND
-
53009D53009-Y006 HINGE, SEAT, LEFT HANDHINGE, SEAT, LEFT HAND
-
5306153061-Y001 BELT-SEAT, RIGHT HANDBELT-SEAT, RIGHT HAND
-
53061A53061-Y002 BELT-SEAT, LEFT HANDBELT-SEAT, LEFT HAND
-
5306653066-Y006 SEAT-ASSY, BOTTOMSEAT-ASSY, BOTTOM
-
53066A53066-Y007 SEAT-ASSY, BACKSEAT-ASSY, BACK
-
5502055020-Y015-933 GUARD, RIGHT HAND, (S.BLACK)GUARD, RIGHT HAND, (S.BLACK)
-
55020A55020-Y016-933 GUARD, LEFT HAND, (S.BLACK)GUARD, LEFT HAND, (S.BLACK)
-
5600756007-Y005 TOOL-KITTOOL-KIT
-
9203392033-Y040 RING-SNAPRING-SNAP
-
9203992039-Y005 RIVET, 4.8X12.8RIVET, 4.8X12.8
-
9213992139-Y014 BUSHINGBUSHING
-
9215292152-Y066 COLLARCOLLAR
-
9215492154-Y035 BOLT, FLANGE, 6X12BOLT, FLANGE, 6X12
-
92154A92154-Y139 BOLT, FLANGE, 10X25BOLT, FLANGE, 10X25
-
92154B92154-Y153 BOLT, FLANGE, 6X14BOLT, FLANGE, 6X14
-
92154C92154-Y170 BOLTBOLT
-
92154D92154-Y171 BOLTBOLT
-
92154E92154-Y181 BOLT, FLANGE, 6MMBOLT, FLANGE, 6MM
-
9220092200-Y085 WASHERWASHER
-
92200A92200-Y093 WASHER, 7MMWASHER, 7MM
-
92200B92200-Y096 WASHER, 12MMWASHER, 12MM
-
92200C92200-Y101 WASHERWASHER
-
9221092210-Y026 NUT, 6MMNUT, 6MM
-
92210A92210-Y081 NUTNUT
