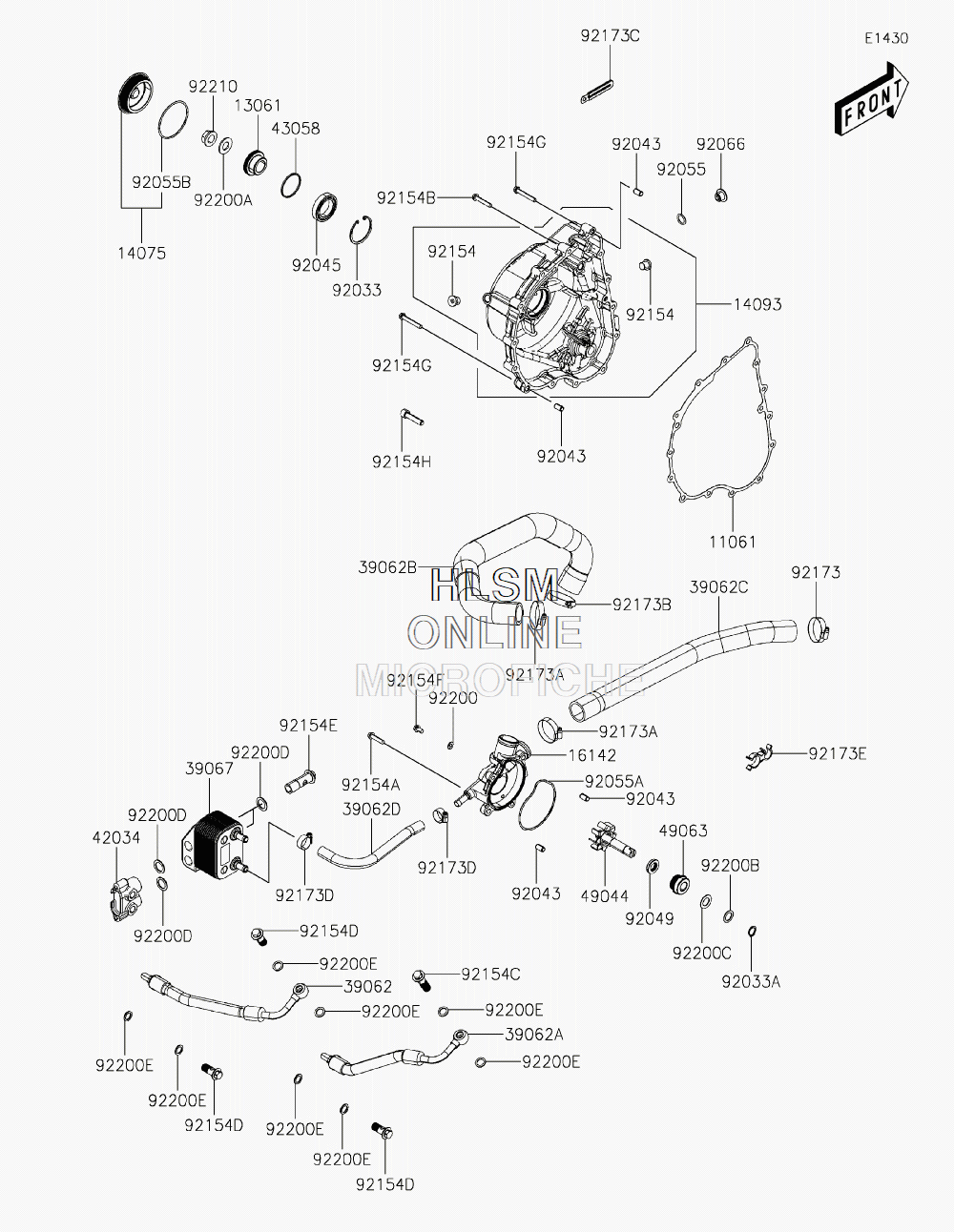

ENGINE COVER(S) для Kawasaki MULE PRO-MX EPS (KAF700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
11061-Y055 GASKET, CRANK CASE COVER, RIGHT HANDGASKET, CRANK CASE COVER, RIGHT HAND
-
1306113061-Y005 BOSS, RACHETBOSS, RACHET
-
1407514075-Y006 CAP-ASSYCAP-ASSY
-
1409314093-Y002 COVER, CRANK CASE, RIGHT HANDCOVER, CRANK CASE, RIGHT HAND
-
1614216142-Y002 COVER-PUMP, WATERCOVER-PUMP, WATER
-
3906239062-Y013 HOSE-COOLINGHOSE-COOLING
-
39062A39062-Y014 HOSE-COOLINGHOSE-COOLING
-
39062B39062-Y015 HOSE-COOLINGHOSE-COOLING
-
39062C39062-Y018 HOSE-COOLINGHOSE-COOLING
-
39062D39062-Y021 HOSE-COOLINGHOSE-COOLING
-
3906739067-Y001 COOLER-OILCOOLER-OIL
-
4203442034-Y002 COUPLING, OIL COOLERCOUPLING, OIL COOLER
-
4305843058-Y001 RING, OIL PATHRING, OIL PATH
-
4904449044-Y002 PUMP-WATERPUMP-WATER
-
4906349063-Y003 SEAL-MECHANICALSEAL-MECHANICAL
-
9203392033-Y027 RING-SNAPRING-SNAP
-
92033A92033-Y028 RING-SNAPRING-SNAP
-
9204392043-Y012 PIN, 8X14PIN, 8X14
-
9204592045-Y044 BEARING-BALL, 6906BEARING-BALL, 6906
-
9204992049-0824 SEAL-OIL, 14X24X5SEAL-OIL, 14X24X5
-
9205592055-Y023 RING-O, 13.8X2.5RING-O, 13.8X2.5
-
92055A92055-Y058 RING-O, WATER PUMPRING-O, WATER PUMP
-
92055B92055-Y064 RING-O, 17.8X2.4RING-O, 17.8X2.4
-
9206692066-Y009 PLUG, COVERPLUG, COVER
-
9215492154-Y009 BOLT, SEALING, 12MMBOLT, SEALING, 12MM
-
92154A92154-Y066 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
92154B92154-Y128 BOLT, FLANGE, 6X32BOLT, FLANGE, 6X32
-
92154C92154-Y172 BOLTBOLT
-
92154D92154-Y173 BOLTBOLT
-
92154E92154-Y175 BOLTBOLT
-
92154F92154-Y208 BOLT, FLANGE, 6X10BOLT, FLANGE, 6X10
-
92154G92154-Y209 BOLT, FLANGE, 6X40BOLT, FLANGE, 6X40
-
92154H92154-Y211 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
9217392173-1205 CLAMP, 28.6MMCLAMP, 28.6MM
-
92173A92173-1892 CLAMPCLAMP
-
92173B92173-1894 CLAMPCLAMP
-
92173C92173-Y002 CLAMPCLAMP
-
92173D92173-Y068 CLAMPCLAMP
-
92173E92173-Y076 CLAMPCLAMP
-
9220092200-Y024 WASHER, 6MMWASHER, 6MM
-
92200A92200-Y026 WASHER, 14X28X2WASHER, 14X28X2
-
92200B92200-Y050 WASHER, 21X13.8X1.5WASHER, 21X13.8X1.5
-
92200C92200-Y051 WASHER, 14MMWASHER, 14MM
-
92200D92200-Y074 WASHERWASHER
-
92200E92200-Y076 WASHERWASHER
-
9221092210-Y038 NUT, FLANGE, 14MMNUT, FLANGE, 14MM
