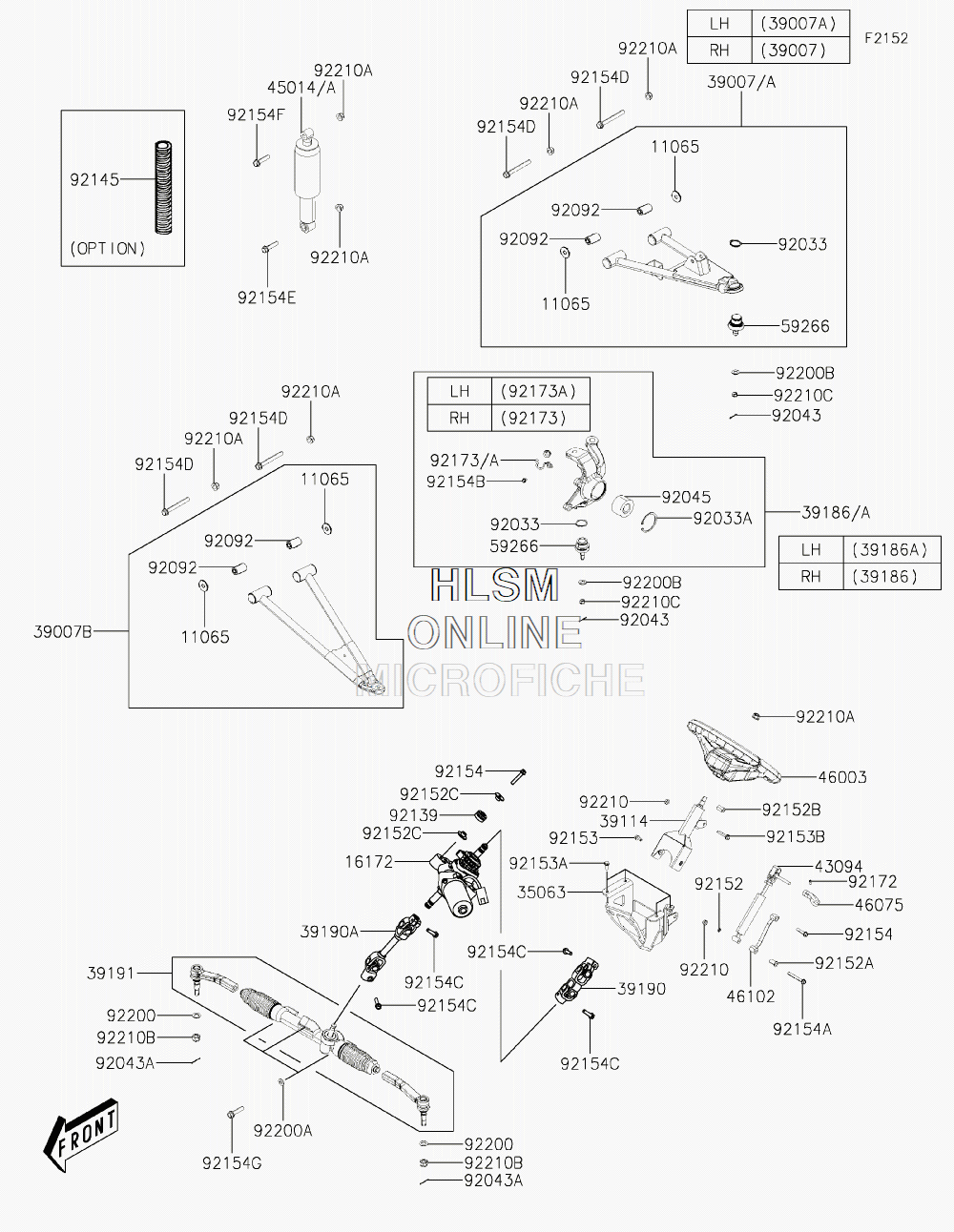

SUSPENSION - FRONT для Kawasaki MULE PRO-MX EPS (KAF700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106511065-Y039 CAP, ARMCAP, ARM
-
1617216172-0557 ACTUATOR, EPSACTUATOR, EPS
-
3506335063-Y043 STAY, EPSSTAY, EPS
-
3900739007-Y011 ARM-SUSP, FRONT, UPPER, RIGHT HANDARM-SUSP, FRONT, UPPER, RIGHT HAND
-
39007A39007-Y012 ARM-SUSP, FRONT, UPPER, LEFT HANDARM-SUSP, FRONT, UPPER, LEFT HAND
-
39007B39007-Y013 ARM-SUSP, FRONT, LOWERARM-SUSP, FRONT, LOWER
-
3911439114-Y003 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3918639186-Y005 KNUCKLE, ASSY, FRONT, RIGHT HANDKNUCKLE, ASSY, FRONT, RIGHT HAND
-
39186A39186-Y007 KNUCKLE, ASSY, FRONT, LEFT HANDKNUCKLE, ASSY, FRONT, LEFT HAND
-
3919039190-Y002 SHAFT-ASSY-STEERING, EPS, UPPERSHAFT-ASSY-STEERING, EPS, UPPER
-
39190A39190-Y003 SHAFT-ASSY-STEERING, EPS, LOWERSHAFT-ASSY-STEERING, EPS, LOWER
-
3919139191-Y001 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
4309443094-Y001 ADJUSTER, HANDLEADJUSTER, HANDLE
-
4501445014-Y008 SHOCKABSORBER, FRONT (EXCEPT CALIF.)SHOCKABSORBER, FRONT (EXCEPT CALIF.)
-
45014A45014-Y010 SHOCKABSORBER, FRONT (CALIF. ONLY)SHOCKABSORBER, FRONT (CALIF. ONLY)
-
4600346003-Y004 HANDLEHANDLE
-
4607546075-Y009 GRIP, ADJUSTERGRIP, ADJUSTER
-
4610246102-Y002 ROD, STEERING BRACKETROD, STEERING BRACKET
-
5926659266-Y005 JOINT-BALLJOINT-BALL
-
9203392033-Y036 RING-SNAP, 32MMRING-SNAP, 32MM
-
92033A92033-Y037 RING-SNAP, 60MMRING-SNAP, 60MM
-
9204392043-Y009 PIN, 3X25PIN, 3X25
-
92043A92043-Y011 PIN, 3X25PIN, 3X25
-
9204592045-0905 BEARING-BALL, 30X60X37BEARING-BALL, 30X60X37
-
9209292092-Y005 BUSHING-RUBBERBUSHING-RUBBER
-
9213992139-Y015 BUSHINGBUSHING
-
9214592145-Y071 SPRING, SHOCK, FRONT (OPTION)SPRING, SHOCK, FRONT (OPTION)
-
9215292152-Y067 COLLARCOLLAR
-
92152A92152-Y068 COLLARCOLLAR
-
92152B92152-Y071 COLLARCOLLAR
-
92152C92152-Y073 COLLARCOLLAR
-
9215392153-Y032 BOLT, FLANGE, 8X16BOLT, FLANGE, 8X16
-
92153A92153-Y033 BOLT, FLANGE, 8X20BOLT, FLANGE, 8X20
-
92153B92153-Y069 BOLT, FLANGE, 8X40BOLT, FLANGE, 8X40
-
9215492154-Y021 BOLT, FLANGE, 8X35BOLT, FLANGE, 8X35
-
92154A92154-Y120 BOLT, FLANGE, 8X65BOLT, FLANGE, 8X65
-
92154B92154-Y193 BOLT, FLANGE, 6X6BOLT, FLANGE, 6X6
-
92154C92154-Y198 BOLT, FLANGE, 8X30BOLT, FLANGE, 8X30
-
92154D92154-Y202 BOLT, FLANGE, 12X100BOLT, FLANGE, 12X100
-
92154E92154-Y203 BOLT, FLANGE, 12X60BOLT, FLANGE, 12X60
-
92154F92154-Y204 BOLT, FLANGE, 12X55BOLT, FLANGE, 12X55
-
92154G92154-Y205 BOLT, FLANGE, 12X50BOLT, FLANGE, 12X50
-
9217292172-Y071 SCREW, 4X10SCREW, 4X10
-
9217392173-Y069 CLAMP, KNUCKLE, FRONT, RIGHT HANDCLAMP, KNUCKLE, FRONT, RIGHT HAND
-
92173A92173-Y071 CLAMP, KNUCKLE, FRONT, LEFT HANDCLAMP, KNUCKLE, FRONT, LEFT HAND
-
9220092200-Y045 WASHER, 14X26X2.3WASHER, 14X26X2.3
-
92200A92200-Y091 WASHER, 12MMWASHER, 12MM
-
92200B92200-Y095 WASHER, SPRINGWASHER, SPRING
-
9221092210-Y076 NUT, 8MMNUT, 8MM
-
92210A92210-Y090 NUT, FLANGE, 12MMNUT, FLANGE, 12MM
-
92210B92210-Y096 NUT, 14MMNUT, 14MM
-
92210C92210-Y097 NUT, 12MMNUT, 12MM
