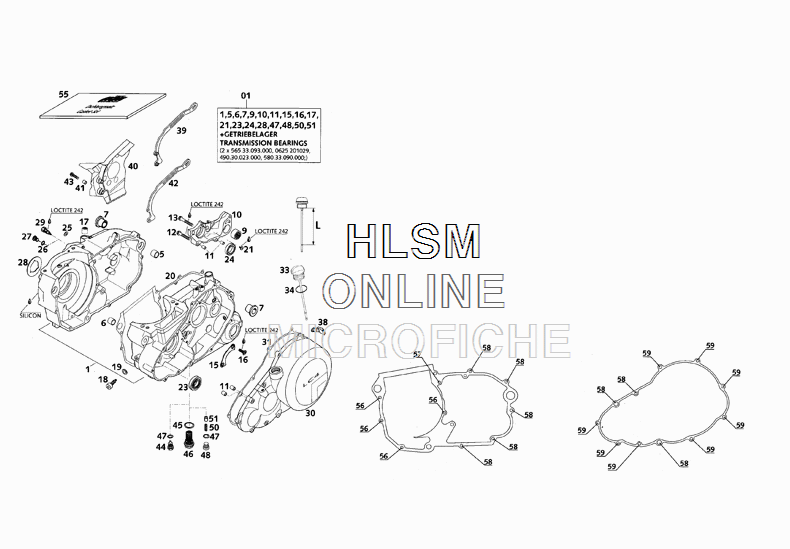

ENGINE CASE для Ktm LC4 640 Dual Sport - 2000 года выпуска
-
№АртикулНазвание
-
15843000014429 ENGINE CASE CPL.W.TRAN.BEAR (GREEN)ENGINE CASE CPL.W.TRAN.BEAR (GREEN)
-
015843000014430 ENGINE CASE CPL.W.TR.BEAR (BLACK)ENGINE CASE CPL.W.TR.BEAR (BLACK)
-
550130027000 DOWEL 19 X15,1X12DOWEL 19 X15,1X12
-
651030026100 DOWEL 17 X14 X12DOWEL 17 X14 X12
-
750130010000 CRANK CASE BUSHCRANK CASE BUSH
-
958033097000 NEEDLE BEARING HK 2216 KSENEEDLE BEARING HK 2216 KSE
-
1058330011000 SHIFT MECHANISM SUPPORTSHIFT MECHANISM SUPPORT
-
1149030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
120015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
130015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
1556530017000 RETAINING BRACKETRETAINING BRACKET
-
160991060163 FLAT HEAD SCR. DIN7991-M 6X16FLAT HEAD SCR. DIN7991-M 6X16
-
1750332095000 NEEDLE BEARING HK 1212NEEDLE BEARING HK 1212
-
1858030080000 LOCATING SCREW M8LOCATING SCREW M8
-
1958030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
2058430039000 ENGINE CASE GASKETENGINE CASE GASKET
-
210985050103 OVAL HEAD SCR. DIN7985-M 5X10OVAL HEAD SCR. DIN7985-M 5X10
-
230625160030 GROOVED BALL BEARING 16003 C3GROOVED BALL BEARING 16003 C3
-
240625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
250603061001 CU-SEAL RING DIN7603- 6X10X1CU-SEAL RING DIN7603- 6X10X1
-
2658038032010 CU-SEAL RING DIN7603-10X14X1CU-SEAL RING DIN7603-10X14X1
-
2749030029000 OIL DRAIN PLUG ISK-M10X10OIL DRAIN PLUG ISK-M10X10
-
2858440091000 STOP DISK 33 X 58 X 1,5STOP DISK 33 X 58 X 1,5
-
2958011081100 CONTACT SCREW M10 STEELCONTACT SCREW M10 STEEL
-
305833010110029 CLUTCH COVER CPL. (GREY) "LC4"CLUTCH COVER CPL. (GREY) "LC4"
-
3058330101100 CLUTCH COVER CPL. (BLACK)CLUTCH COVER CPL. (BLACK)
-
3158330025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
3358330020144 OIL DIPSTICK CPL. L=93MMOIL DIPSTICK CPL. L=93MM
-
340770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
3858333041000 BUMP RUBBERBUMP RUBBER
-
3958730047000 CHAIN DAMPER SHEET 17Z (DUKE ONLLY)CHAIN DAMPER SHEET 17Z (DUKE ONLLY)
-
4058430060000 SPROCKET COVER BLACKSPROCKET COVER BLACK
-
4154613038150 BUSHING 6,5X8X11BUSHING 6,5X8X11
-
4258430047000 CHAIN DAMPERSHEET 17TCHAIN DAMPERSHEET 17T
-
4258430047100 CHAIN DAMPERSHEET 15/16TCHAIN DAMPERSHEET 15/16T
-
430015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
4458030021000 OILDRAIN PLUG W.MAGNET M12X1,5OILDRAIN PLUG W.MAGNET M12X1,5
-
4558038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
4658038019100 OIL DRAIN PLUG M22X1,5OIL DRAIN PLUG M22X1,5
-
4758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
480908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
5058038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
5158038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
5558430099000 GASKET SETGASKET SET
-
560015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
570015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
580015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
590015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
