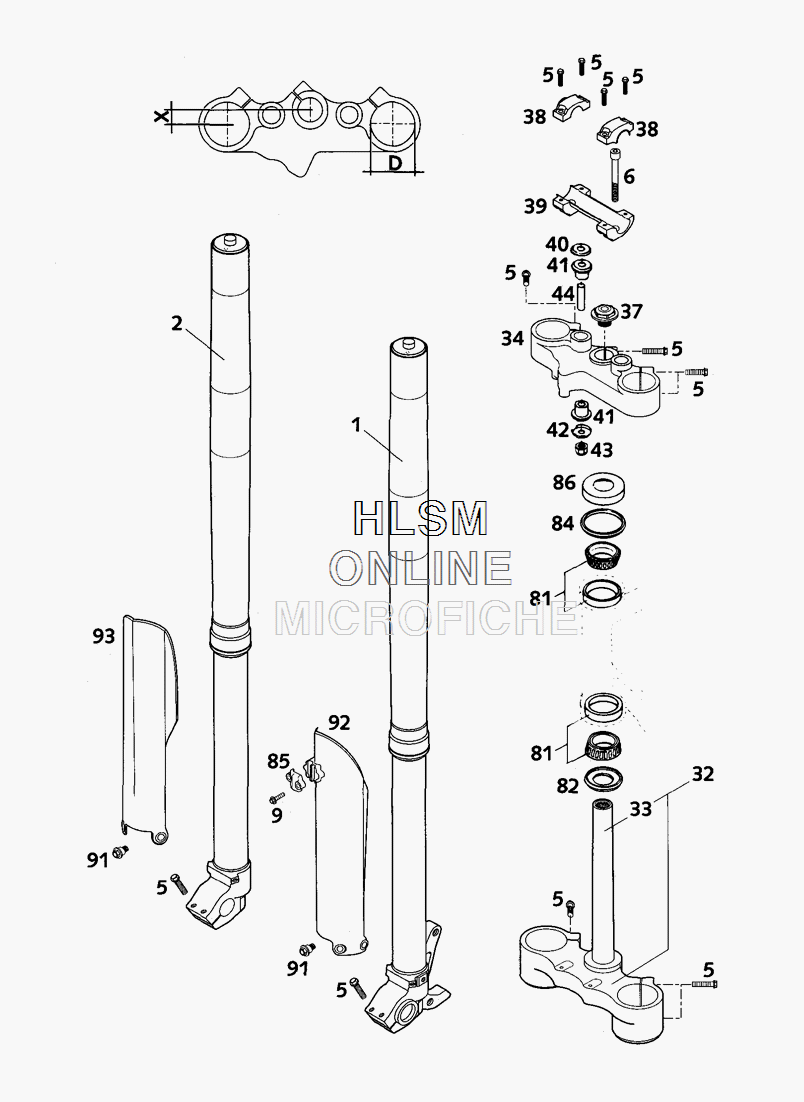

FRONT FORK (W/ PAINT) для Ktm LC4 640 Dual Sport - 2000 года выпуска
-
№АртикулНазвание
-
10518U790LS FORK LEG L/S WP43FORK LEG L/S WP43
-
20518U790RS FORK LEG R/S WP43FORK LEG R/S WP43
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
90017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
3258401032018 BOT TRIPLE CLAMP X=18MM/D=57MMBOT TRIPLE CLAMP X=18MM/D=57MM
-
3350101033100 FORK TUBE L=244 '91FORK TUBE L=244 '91
-
3458401034218 TOP TRIPLE CLAMP X=18MM/D=57MMTOP TRIPLE CLAMP X=18MM/D=57MM
-
3750301036000 STEER.HEAD SCREW M20X1,5 SW=27STEER.HEAD SCREW M20X1,5 SW=27
-
3859001038000 HANDLEBAR CLAMP 22MM 2THANDLEBAR CLAMP 22MM 2T
-
3959001039000 HANDLEBAR SUPPORT 22M 2THANDLEBAR SUPPORT 22M 2T
-
4056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
4156401040000 RUBBER BUSHINGRUBBER BUSHING
-
4256401142000 WASHER 10,5X31WASHER 10,5X31
-
430985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
4456401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
8154201081000 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
8254601084100 O-RING SUPPORT W SEALING LIPO-RING SUPPORT W SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8559001085000 CLAMP F BRAKE HOSE SCCLAMP F BRAKE HOSE SC
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 SW=8SPECIAL SCREW M6X12,5 SW=8
-
9259001092000 FORK PROTEC. L/S SILVER SCFORK PROTEC. L/S SILVER SC
-
9359001093000 FORK PROTEC. R/S SILVER SCFORK PROTEC. R/S SILVER SC
