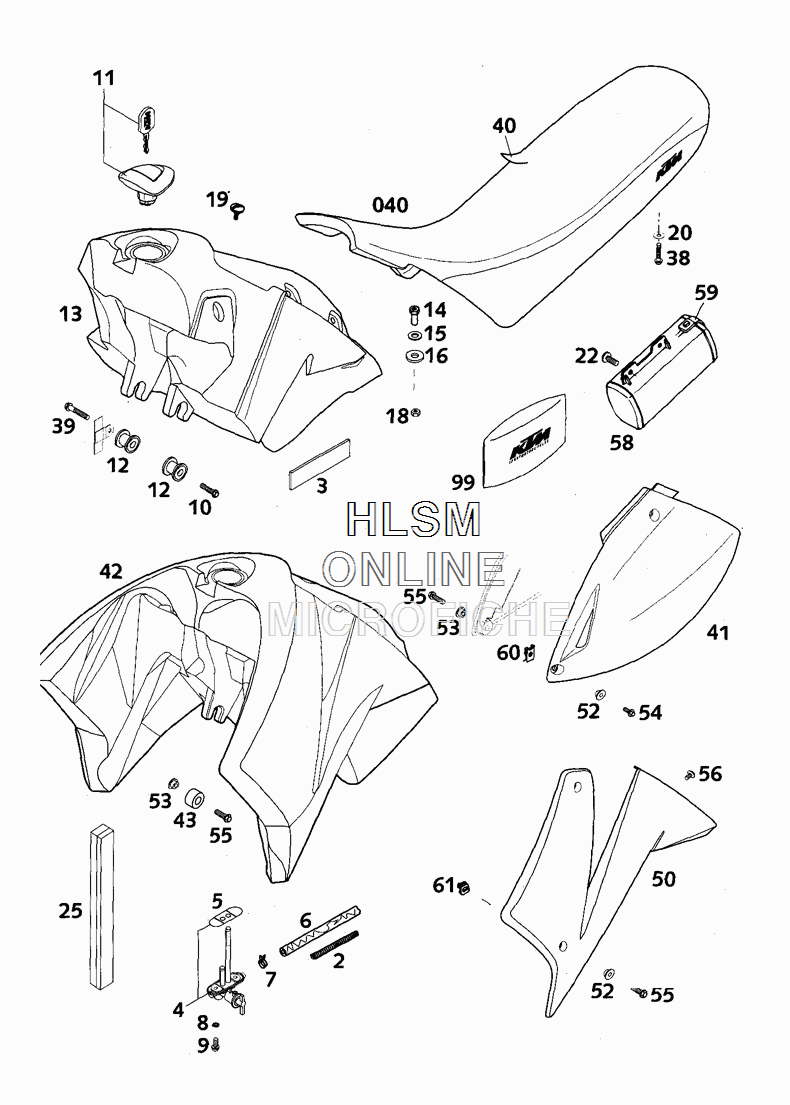

TANK - SEAT - COVER для Ktm LC4 640 Dual Sport - 2000 года выпуска
-
№АртикулНазвание
-
258036006100 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
354601097000 RUBBER STRIP 85X25X3 MMRUBBER STRIP 85X25X3 MM
-
451107004000 FUEL COCK CPL.MIKUNI CK-69FUEL COCK CPL.MIKUNI CK-69
-
558307106100 GASKET FUEL COCK MIKUNIGASKET FUEL COCK MIKUNI
-
654435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
80603061001 CU-SEAL RING DIN7603- 6X10X1CU-SEAL RING DIN7603- 6X10X1
-
90015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
100015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1158407008100 TANK PLUG LC4 USATANK PLUG LC4 USA
-
1258307113250 TANK BUSHING CPL. 12 X 34 X 25TANK BUSHING CPL. 12 X 34 X 25
-
1358407013144 FUEL TANK CPL.12 LI. BLACKFUEL TANK CPL.12 LI. BLACK
-
1458307014000 SPECIAL NUT M8SPECIAL NUT M8
-
1558307019000 WASHER 10,5 X 25 X 1,5WASHER 10,5 X 25 X 1,5
-
1651005067100 INSOLATE WASHER 12X28X3INSOLATE WASHER 12X28X3
-
180934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1958007044000 OVAL HEAD SCREW M6X15 250/4TOVAL HEAD SCREW M6X15 250/4T
-
2050232050000 WASHER 6,2 X 18 X 2WASHER 6,2 X 18 X 2
-
220014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
2558107011000 FOAM RUBBER STRIPFOAM RUBBER STRIP
-
380015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
390015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
04058407140000 SEAT HIGH ORANGE/BLACKSEAT HIGH ORANGE/BLACK
-
04058407140100 SEAT LOW ORANGE/BLACKSEAT LOW ORANGE/BLACK
-
04058407140200 SEAT HIGH SILVER/BLACKSEAT HIGH SILVER/BLACK
-
04058407140300 SEAT LOW SILVER/BLACKSEAT LOW SILVER/BLACK
-
04058407140400 SEAT SILVER/BLACK 18LITERSEAT SILVER/BLACK 18LITER
-
04058407140500 SEAT ORANGE/BLACK 18LITERSEAT ORANGE/BLACK 18LITER
-
4058407140050 SEAT COVER HIGH ORANGESEAT COVER HIGH ORANGE
-
4058407140150 SEAT COVER LOW ORANGESEAT COVER LOW ORANGE
-
4058407140250 SEAT COVER HIGH SILVERSEAT COVER HIGH SILVER
-
4058407140350 SEAT COVER LOW SILVERSEAT COVER LOW SILVER
-
4058407140450 SEAT COVER SILVER 18LITERSEAT COVER SILVER 18LITER
-
4058407140550 SEAT COVER 18LITER ORANGESEAT COVER 18LITER ORANGE
-
415840804100090 SIDE COVER L/S SILVERSIDE COVER L/S SILVER
-
415840804210090 SIDE COVER R/S SILVERSIDE COVER R/S SILVER
-
4258407013200 FUEL TANK 18LI. BLACKFUEL TANK 18LI. BLACK
-
4350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
505840805000004 SPOILER L/S ORANGESPOILER L/S ORANGE
-
505840805000090 SPOILER L/S SILVERSPOILER L/S SILVER
-
505840805100004 SPOILER R/S ORANGESPOILER R/S ORANGE
-
505840805100090 SPOILER R/S SILVERSPOILER R/S SILVER
-
5250308052000 BUSH FOR SPOILER 6X11X16X5BUSH FOR SPOILER 6X11X16X5
-
5350308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
540015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
550015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
560014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
5858012058000 TOOL BOX CPL. '92TOOL BOX CPL. '92
-
5958012058050 RUBBER FOR TOOL BOXRUBBER FOR TOOL BOX
-
6054603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
6150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
9958329099000 TOOL SET 400-640 LC4 97TOOL SET 400-640 LC4 97
