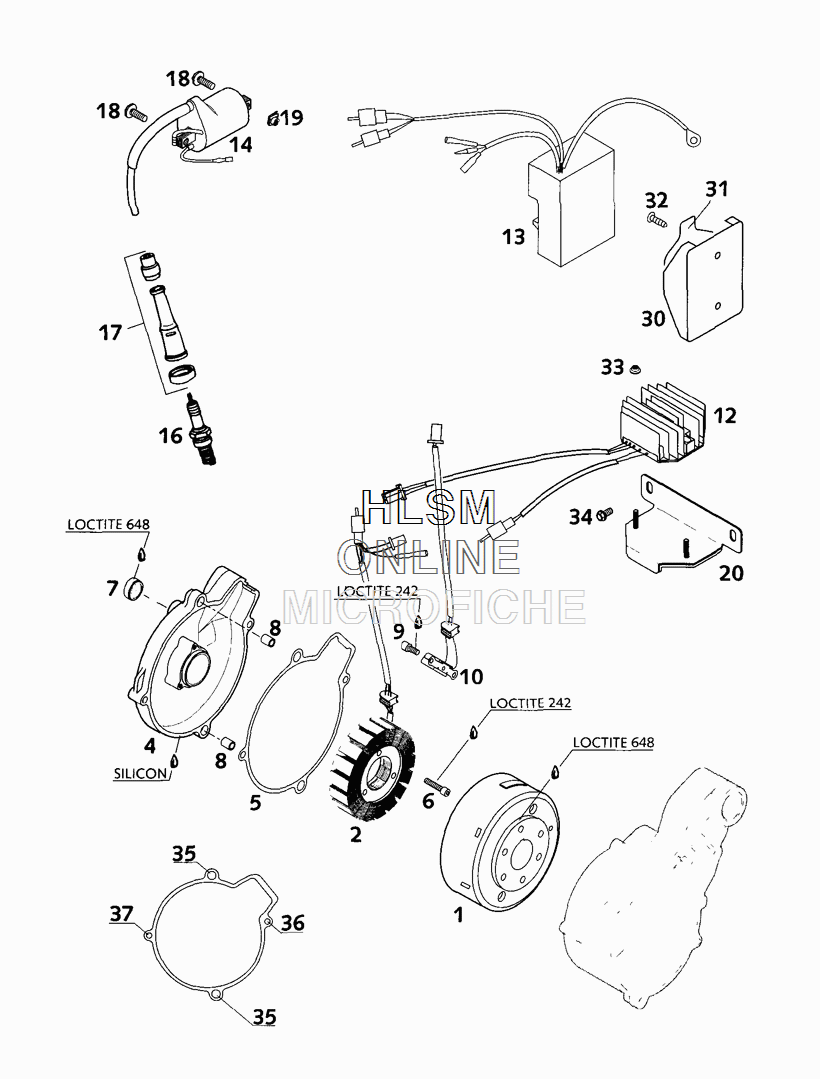

IGNITION SYSTEM (KOKUSAN) для Ktm LC4 640 Dual Sport - 2000 года выпуска
-
№АртикулНазвание
-
158439005100 FLYWHEEL KOKUSANFLYWHEEL KOKUSAN
-
258439004000 STATOR KOKUSAN LOOSESTATOR KOKUSAN LOOSE
-
45843000214429 IGNITION COVER CPL. (GREY)IGNITION COVER CPL. (GREY)
-
458430002144 IGNITION COVER CPL. (BLACK)IGNITION COVER CPL. (BLACK)
-
558430040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
60912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
758430095000 INSPECTION GLASS GW 20-7 NBRINSPECTION GLASS GW 20-7 NBR
-
849030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
90912050083 AH SCREW DIN0912-M 5X 8AH SCREW DIN0912-M 5X 8
-
1058439034000 PULSER COILPULSER COIL
-
1258411034100 VOLT.REGULATOR-RECTIFIER 12VVOLT.REGULATOR-RECTIFIER 12V
-
1358439031200 DIGITALBOX CDI CB7459 95 ROZ'DIGITALBOX CDI CB7459 95 ROZ'
-
1358439031300 DIGITALBOX CDI 80 ROZDIGITALBOX CDI 80 ROZ
-
1458439006000 IGNITIONCOIL IG3826IGNITIONCOIL IG3826
-
1658439093009 SPARK PLUG NGK DPR8EA-9SPARK PLUG NGK DPR8EA-9
-
1758031010000 SPARK PLUG CONNECTION SDSPARK PLUG CONNECTION SD
-
180014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1950235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
2058411055100 BATTERY BRACKETBATTERY BRACKET
-
3058439030100 RUBBER BRACKET FOR CDIRUBBER BRACKET FOR CDI
-
3158439030150 SUPPORT FOR RUBBER BRACKETSUPPORT FOR RUBBER BRACKET
-
320016055163 SPECIAL SCREW Z 5,5X16SPECIAL SCREW Z 5,5X16
-
3356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
340015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
350015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
360015060803 HH COLLAR SCREW M 6X80 WS=8HH COLLAR SCREW M 6X80 WS=8
-
370015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
