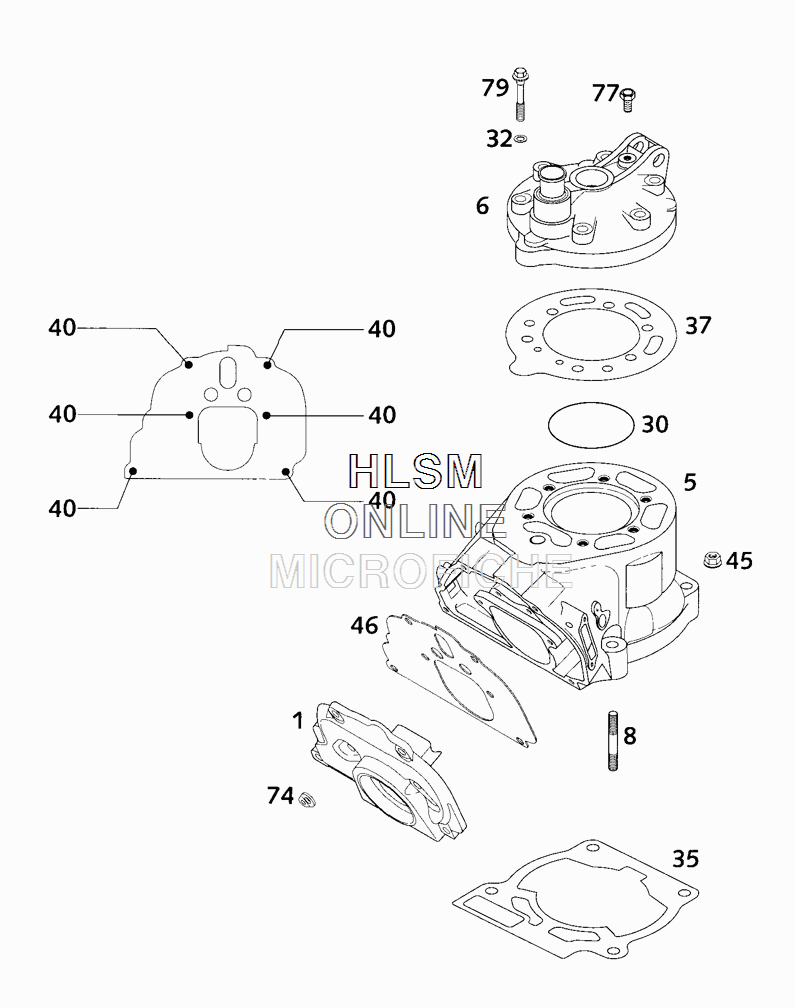

CYLINDER для Ktm 200 MXC - 2001 года выпуска

№

Артикул

Название
1

52337001200 INTERMEDIATE FLANGE

INTERMEDIATE FLANGE

24 100 ₽
5

52330005200 CYLINDER 54MM

CYLINDER 54MM

170 ₽
6

52330006000 CYLINDER HEAD

CYLINDER HEAD

33 720 ₽
8

0835080355 STUD DIN0835-M 8X35 10.9

STUD DIN0835-M 8X35 10.9

620 ₽
30

0770720021 O-RING 72,00X2,00 VITON

O-RING 72,00X2,00 VITON

1 520 ₽
32

50230032010 CU-SEAL RING 7,3 X 12 X 0,5

CU-SEAL RING 7,3 X 12 X 0,5

410 ₽
35

50330035007 CYL.BASE GASKET 0,07MM PAPER

CYL.BASE GASKET 0,07MM PAPER

1 290 ₽
35

50330035015 CYLINDER BASE GASKET 0,15MM

CYLINDER BASE GASKET 0,15MM

1 290 ₽
35

50330035020 CYLINDER BASE GASKET 0,20MM

CYLINDER BASE GASKET 0,20MM

1 290 ₽
35

50330035025 CYLINDER BASE GASKET 0,25MM

CYLINDER BASE GASKET 0,25MM

1 290 ₽
35

50330035040 CYLINDER BASE GASKET 0,40MM

CYLINDER BASE GASKET 0,40MM

1 200 ₽
35

50330035050 CYLINDER BASE GASKET 0,50MM

CYLINDER BASE GASKET 0,50MM

1 200 ₽
35

50330035075 CYLINDER BASE GASKET 0,75MM

CYLINDER BASE GASKET 0,75MM

1 750 ₽
37

52330037000 CYL.HEAD GASKET 1,1MM

CYL.HEAD GASKET 1,1MM

4 940 ₽
40

0015050203 HH COLLAR SCREW M 5X20 WS=8

HH COLLAR SCREW M 5X20 WS=8

350 ₽
45

50330045000 HH COLLAR NUT M8 WS=12

HH COLLAR NUT M8 WS=12

410 ₽
46

52337046100 INTERMED.GASKET 1,1MM

INTERMED.GASKET 1,1MM

2 200 ₽
74

51005074000 RETAINING PLATE

RETAINING PLATE

640 ₽
77

0933060103 HH SCREW DIN0933-M 6X10

HH SCREW DIN0933-M 6X10

80 ₽
79

50030079000 CYL. HEAD BOLT M7X40 WS=10

CYL. HEAD BOLT M7X40 WS=10

2 660 ₽

Все узлы модели:
