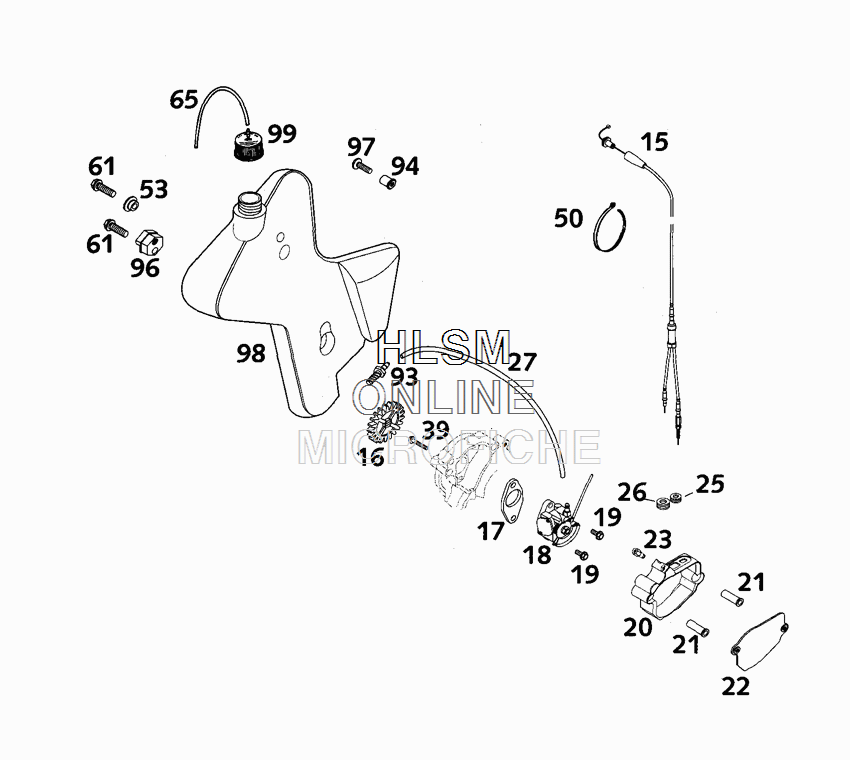

FRESH OIL LUBRICATION для Ktm 200 MXC - 2001 года выпуска
-
№АртикулНазвание
-
1552302091000 THROTCABLE W.DISTRIBUT.SGPTHROTCABLE W.DISTRIBUT.SGP
-
1652338001000 OIL PUMP WHEEL 21-ZOIL PUMP WHEEL 21-Z
-
1752338070010 OIL PUMP GASKETOIL PUMP GASKET
-
1852338070100 OIL PUMP 1M137-43/003OIL PUMP 1M137-43/003
-
190015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
2052338074000 OIL PUMP COVER CPL.OIL PUMP COVER CPL.
-
2152338071000 PASSPORT SOCKET DM12,3X34PASSPORT SOCKET DM12,3X34
-
2252338073000 COVER OIL PUMPCOVER OIL PUMP
-
2352338072000 THREADED BUSH L=12MM WS=8THREADED BUSH L=12MM WS=8
-
2552338075000 RUBBER SLEEVE 5 X 7 X 3RUBBER SLEEVE 5 X 7 X 3
-
2631008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
2758007016001 FUEL HOSE VITONFUEL HOSE VITON
-
390015050303 HH COLLAR SCREW M 5X30 WS=8HH COLLAR SCREW M 5X30 WS=8
-
5044011076100 CABLE TIE 100MMCABLE TIE 100MM
-
5350308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
610015060203 HH COLLAR SCREW M 6X20 WS78HH COLLAR SCREW M 6X20 WS78
-
6550131137000 VENT HOSE 3X5X270VENT HOSE 3X5X270
-
9352338061050 HOSE CONNECTION FOR OILTANKHOSE CONNECTION FOR OILTANK
-
9455003139600 BLIND RIVET NUT M6X15,5 STEELBLIND RIVET NUT M6X15,5 STEEL
-
9650335096000 TANK ADAPTER BUSH 12 LITERTANK ADAPTER BUSH 12 LITER
-
970014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
9852338061000 ADDITIONAL TANK R/SADDITIONAL TANK R/S
-
9949138491044 OIL TANK CAPOIL TANK CAP
