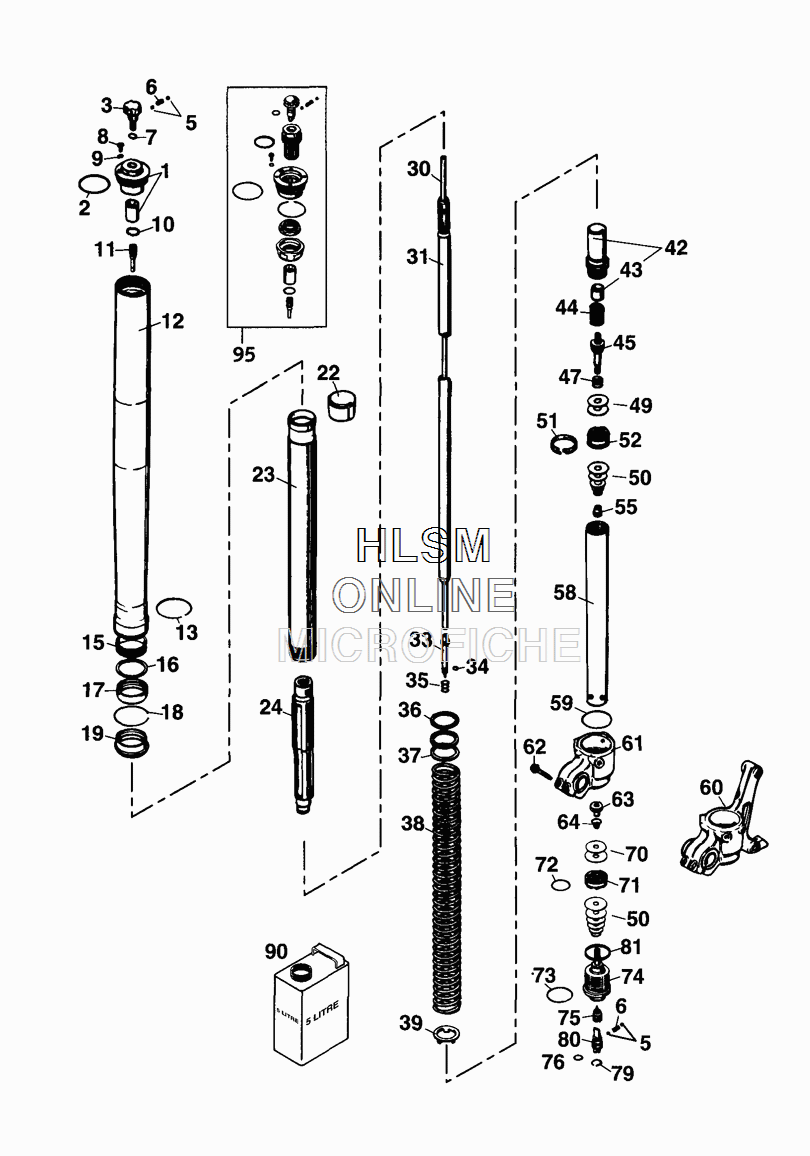

FORK LEGS для Ktm 200 MXC - 2001 года выпуска
-
№АртикулНазвание
-
148600020S SREW CAP+BUSH M51X1,5SREW CAP+BUSH M51X1,5
-
246810016 O-RING NBR 48X2O-RING NBR 48X2
-
348600018 KNOB REBOUNG ADJUSTERKNOB REBOUNG ADJUSTER
-
540540603 STEEL BALL D=3MMSTEEL BALL D=3MM
-
648600028 SPRING D=2,9 L=7,9SPRING D=2,9 L=7,9
-
748600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
848600058 VENT SCREW M4X6VENT SCREW M4X6
-
948600009 O-RING NBR 3,7X1,6O-RING NBR 3,7X1,6
-
1048600043 O-RING NBR 12X1,5O-RING NBR 12X1,5
-
1148600019 HOLDER F. ADJUSTMENT TUBE D=4MMHOLDER F. ADJUSTMENT TUBE D=4MM
-
1243570125 OUTER TUBE L=577MM D=54/57MMOUTER TUBE L=577MM D=54/57MM
-
1343570099 GUIDING RING D=53MMGUIDING RING D=53MM
-
1543570019 DU-BUSH 47 X 43 X 20DU-BUSH 47 X 43 X 20
-
1643570092 SUPPORT RING 45 X 52,5 X 1,5SUPPORT RING 45 X 52,5 X 1,5
-
1743570140 OIL SEAL RING 43X53,15X9,5OIL SEAL RING 43X53,15X9,5
-
1843570008 LOCK WASHER SB53LOCK WASHER SB53
-
1943570094 DUST STRIPPER D=43MMDUST STRIPPER D=43MM
-
2243570020 DU-BUSH 43,8 X 43 X 20DU-BUSH 43,8 X 43 X 20
-
2343570145 INNER TUBE D=43MM L=585MMINNER TUBE D=43MM L=585MM
-
2443570142S HYDR.STOP L=200MM D=27,5 CPL.HYDR.STOP L=200MM D=27,5 CPL.
-
3048600014 ADJUSTMENT TUBE L=512MMADJUSTMENT TUBE L=512MM
-
3148600023 PISTONROD D=14MM L=546MM M11X1PISTONROD D=14MM L=546MM M11X1
-
3348600003 REBOUND NEEDLEREBOUND NEEDLE
-
3448600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
3548600033 SPRING REBOUND NEEDLE C=4N/MMSPRING REBOUND NEEDLE C=4N/MM
-
3648600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
3648600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
3648600038 SPACER 42X26,5X10SPACER 42X26,5X10
-
3748600039 RING 26,5X42X1,5RING 26,5X42X1,5
-
3895010010S SPRING 3,6 N/MM SET D=4,6MMSPRING 3,6 N/MM SET D=4,6MM
-
3895010001S SPRING 3,8 N/MM SET D=4,75SPRING 3,8 N/MM SET D=4,75
-
3895010002S SPRING 4,0 N/MM SET D=4,75MMSPRING 4,0 N/MM SET D=4,75MM
-
3895010003S SPRING 4,2 N/MM SET D=4,9MMSPRING 4,2 N/MM SET D=4,9MM
-
3895010004S SPRING 4,4 N/MM SET D=4,9MMSPRING 4,4 N/MM SET D=4,9MM
-
3943570131 INTERM. RING 26,2X38,5X3INTERM. RING 26,2X38,5X3
-
4243570132S SCREW SLEEVE M29,3X1+BUSHSCREW SLEEVE M29,3X1+BUSH
-
4346810651 DU-BUSH 14X16X12DU-BUSH 14X16X12
-
4448600015 REBOUND SPRING D=14,6MM L=22MMREBOUND SPRING D=14,6MM L=22MM
-
4548600025 TAP REBOUNDTAP REBOUND
-
4748600059 SPRING CHECK VALVE D=0,25SPRING CHECK VALVE D=0,25
-
4948600062 CHECK VALVE 8X24X0,1CHECK VALVE 8X24X0,1
-
4940541408 SHIM 6X8,0X0,30SHIM 6X8,0X0,30
-
4940541414 SHIM 6X8,0X0,10SHIM 6X8,0X0,10
-
5040540400 SHIM 6X12X0,1SHIM 6X12X0,1
-
5040540401 SHIM 6X14X0,1SHIM 6X14X0,1
-
5040540402 SHIM 6X16X0,1SHIM 6X16X0,1
-
5040540403 SHIM 6X18X0,1SHIM 6X18X0,1
-
5040540404 SHIM 6X12X0,15SHIM 6X12X0,15
-
5040540405 SHIM 6X14X0,15SHIM 6X14X0,15
-
5040540406 SHIM 6X16X0,15SHIM 6X16X0,15
-
5040540407 SHIM 6X18X0,15SHIM 6X18X0,15
-
5040540411 SHIM 6X18X0,2SHIM 6X18X0,2
-
5040540414 SHIM 6X16X0,25SHIM 6X16X0,25
-
5040540447 SHIM 6X10X0,3SHIM 6X10X0,3
-
5040541383 SHIM 6X11X0,1SHIM 6X11X0,1
-
5040541391 SHIM 6X11X0,3SHIM 6X11X0,3
-
5048600063 SHIM 6X24X0,1SHIM 6X24X0,1
-
5048600064 SHIM 6X22X0,1SHIM 6X22X0,1
-
5048600065 SHIM 6X20X0,1SHIM 6X20X0,1
-
5048600116 SHIM 6X24X0,1 DELTASHIM 6X24X0,1 DELTA
-
5048600139 SHIM 6X22X0,1 DELTASHIM 6X22X0,1 DELTA
-
5148600060 PISTON RING 5X1X84PISTON RING 5X1X84
-
5248600042 PISTON REBOUNDPISTON REBOUND
-
5540540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
5848600081 TUBE 29,3X1X390 D=8,5MMTUBE 29,3X1X390 D=8,5MM
-
5943570023 O-RING NBR 41X2O-RING NBR 41X2
-
6043570124 AXLE CLAMP L/S 260MM M8AXLE CLAMP L/S 260MM M8
-
6143570123 AXLE CLAMP RIGHT M8AXLE CLAMP RIGHT M8
-
6250600061 HH COLLAR SCREW M 8X30HH COLLAR SCREW M 8X30
-
6340541241 CHECK VALVE NUT M6X0,5CHECK VALVE NUT M6X0,5
-
6440541278 SPRING CHECK VALVE D=0,5MMSPRING CHECK VALVE D=0,5MM
-
7048600061 CHECK VALVE 8X24X0,4CHECK VALVE 8X24X0,4
-
7040541408 SHIM 6X8,0X0,30SHIM 6X8,0X0,30
-
7148600047 PISTON COMPRESSIONPISTON COMPRESSION
-
7246811499 O-RING NBR 21X2O-RING NBR 21X2
-
7335480320 O-RING NBR 24X2O-RING NBR 24X2
-
7448600027S TAP COMPRESSIONTAP COMPRESSION
-
7548600035 NEEDLE COMPRESSION M10X1NEEDLE COMPRESSION M10X1
-
7648600049 O-RING NBR 8X2O-RING NBR 8X2
-
7948600051 LOCK WASHER RB12LOCK WASHER RB12
-
8048600034 COMPRESSION ADJ. SCREWCOMPRESSION ADJ. SCREW
-
8148600004 COPPER WASHER 29,5X33,5X1COPPER WASHER 29,5X33,5X1
-
9040540882 FORKOIL REZ 71 SAE 5FORKOIL REZ 71 SAE 5
-
9548600075S PRE-LOAD ADJUSTER CPL.PRE-LOAD ADJUSTER CPL.
