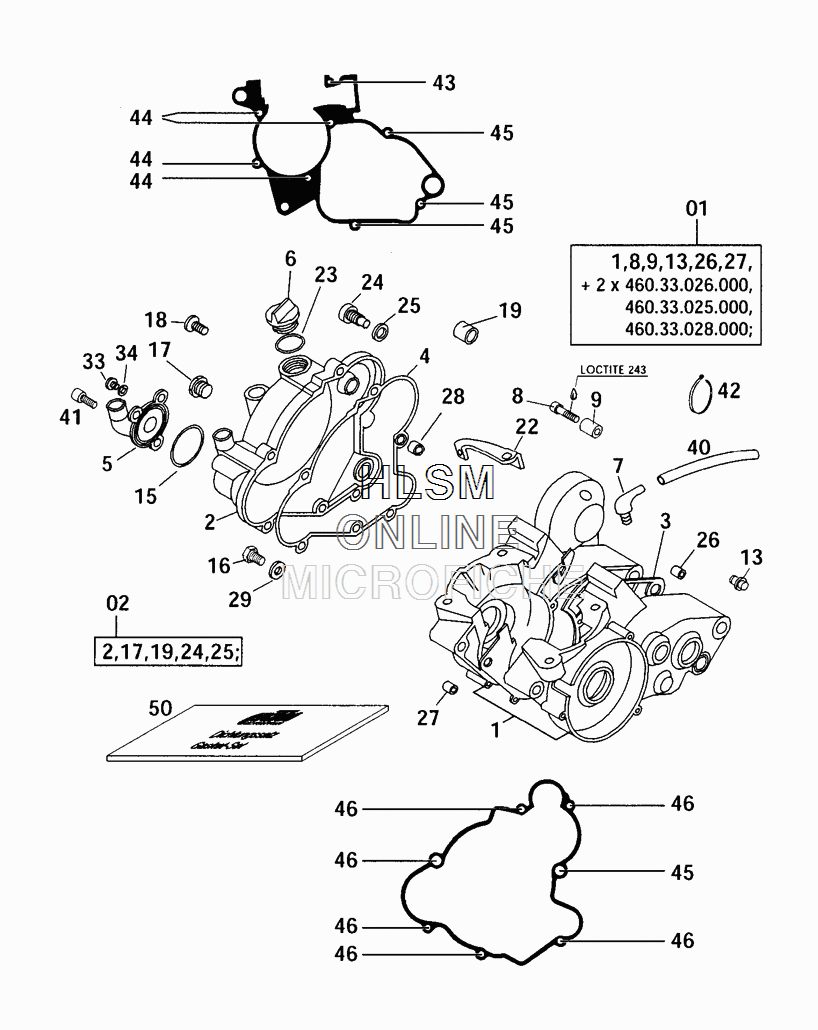

ENGINE CASE для Ktm 65 SX - 2001 года выпуска

№

Артикул

Название
01

46030000044 ENGINE CASE CPL.W.TRAN.BEAR

ENGINE CASE CPL.W.TRAN.BEAR

150 500 ₽
02

46030001100 CLUTCH COVER CPL.

CLUTCH COVER CPL.

48 290 ₽
3

46030039000 ENGINE CASE GASKET

ENGINE CASE GASKET

1 670 ₽
4

46030025000 CLUTCH COVER GASKET INSIDE

CLUTCH COVER GASKET INSIDE

3 390 ₽
5

46035052000 WATER PUMP COVER

WATER PUMP COVER

31 740 ₽
6

58030020000 PLUG M24 X 3

PLUG M24 X 3

1 080 ₽
7

51030022000 ANGLE PIECE 90 DEGREE M10X1

ANGLE PIECE 90 DEGREE M10X1

1 110 ₽
15

46035053000 O-RING

O-RING

0 ₽
16

46030021000 OIL DRAIN PLUG M10 WS=14

OIL DRAIN PLUG M10 WS=14

0 ₽
17

49030095000 LENS TYPE GN 540

LENS TYPE GN 540

3 210 ₽
18

0991060203 FLAT HEAD SCREW DIN7991-M 6X20

FLAT HEAD SCREW DIN7991-M 6X20

290 ₽
22

46032059000 SUPPORT FOR CLUTCH CABLE

SUPPORT FOR CLUTCH CABLE

0 ₽
23

0770160030 O-RING 16,00X3,00 NBR 70

O-RING 16,00X3,00 NBR 70

470 ₽
26

46030023100 DOWEL 17X15

DOWEL 17X15

2 660 ₽
27

46030023000 DOWEL 12X14,5

DOWEL 12X14,5

2 330 ₽
28

46030024000 DOWEL 9X15

DOWEL 9X15

4 790 ₽
29

42013226000 CU-SEAL RING DIN7603-10X16X1

CU-SEAL RING DIN7603-10X16X1

440 ₽
33

46035061000 PLUG M6X7

PLUG M6X7

1 320 ₽
34

0603061001 CU-SEAL RING DIN7603- 6X10X1

CU-SEAL RING DIN7603- 6X10X1

320 ₽
40

31007007001 PVC-HOSE 5 X 8 MM

PVC-HOSE 5 X 8 MM

1 340 ₽
41

0912060163 AH SCREW DIN0912-M 6X16

AH SCREW DIN0912-M 6X16

240 ₽
42

44011076100 CABLE TIE 100MM

CABLE TIE 100MM

100 ₽
43

0912060404 AH SCREW DIN0912-M 6X40

AH SCREW DIN0912-M 6X40

380 ₽
44

0912060453 AH SCREW DIN0912-M 6X45

AH SCREW DIN0912-M 6X45

440 ₽
45

0912060303 AH SCREW DIN0912-M 6X30

AH SCREW DIN0912-M 6X30

410 ₽
46

0912060253 AH SCREW DIN0912-M 6X25

AH SCREW DIN0912-M 6X25

440 ₽
50

46030099000 GASKET SET CPL.

GASKET SET CPL.

40 680 ₽
