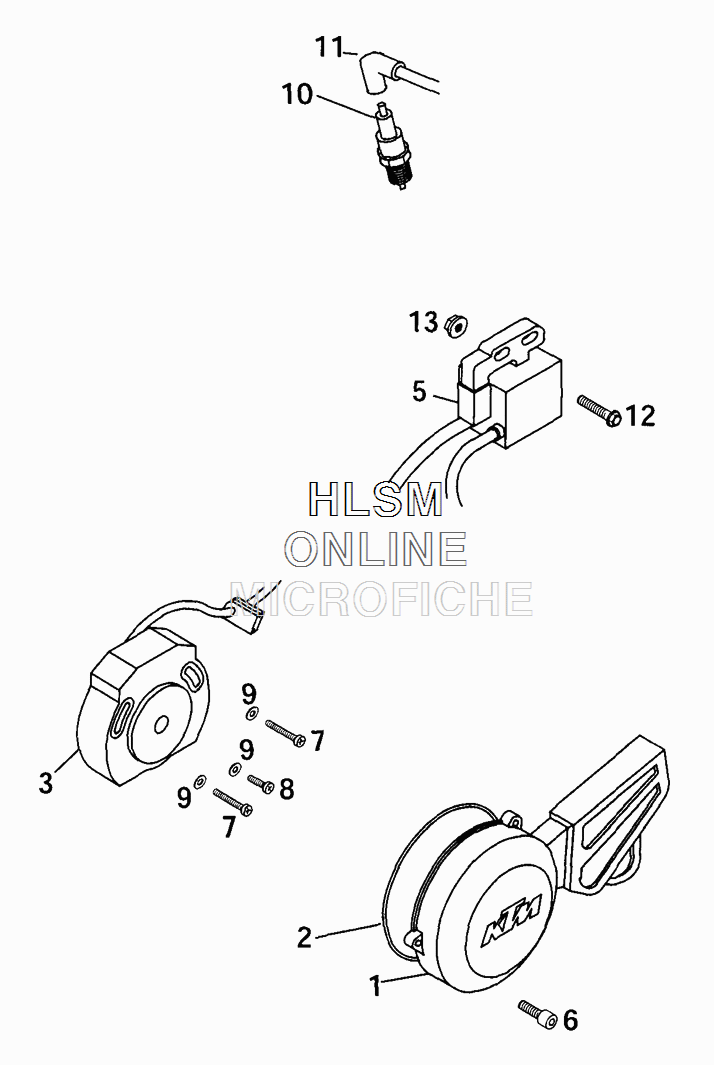

IGNITION SYSTEM для Ktm 65 SX - 2001 года выпуска
-
№АртикулНазвание
-
146030002000 IGNITION COVER SILVER 60/65CCMIGNITION COVER SILVER 60/65CCM
-
20770020480 O-RING 120,37X1,78 NBR70O-RING 120,37X1,78 NBR70
-
346039002000 IGNITION SYSTEM 60/65 CCMIGNITION SYSTEM 60/65 CCM
-
546039006000 IGNITION COIL CPL. 60/65 CCMIGNITION COIL CPL. 60/65 CCM
-
60912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
70985040353 FLAT HEAD SCREW DIN7985-M 4X35FLAT HEAD SCREW DIN7985-M 4X35
-
80985040203 FLAT HEAD SCREW DIN7985-M 4X20FLAT HEAD SCREW DIN7985-M 4X20
-
90125040003 WASHER DIN0125-A 4,0WASHER DIN0125-A 4,0
-
1046039093000 SPARKING PLUG NGK BR10EG 2001SPARKING PLUG NGK BR10EG 2001
-
1146039090000 SPARK PLUG CAP NGK LB05EMHSPARK PLUG CAP NGK LB05EMH
-
120015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
