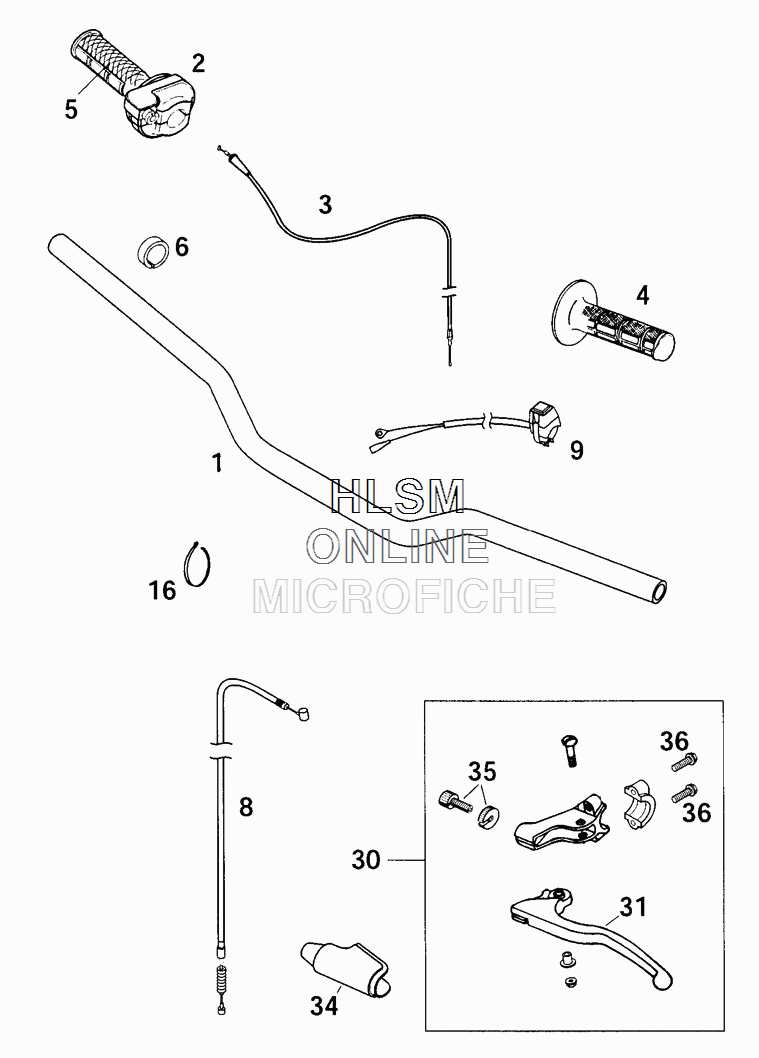

HANDELBAR W/ CONTROLS для Ktm 65 SX - 2001 года выпуска
-
№АртикулНазвание
-
146002001200 HANDLEBAR ALUHANDLEBAR ALU
-
246002010000 THROTTLE TWIST GRIP CPL.THROTTLE TWIST GRIP CPL.
-
346002091000 THROTTLE CABLETHROTTLE CABLE
-
450202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
550202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
646002012000 SPACER BUSHING 21,5X28X7,5SPACER BUSHING 21,5X28X7,5
-
846002090100 CLUTCH CABLECLUTCH CABLE
-
950311089000 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1644011076100 CABLE TIE 100MMCABLE TIE 100MM
-
1644011076200 CABLE TIE 200MMCABLE TIE 200MM
-
1644011076305 CABLE TIE 290MMCABLE TIE 290MM
-
3046002040100 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3146002042100 CLUTCH LEVER LOOSECLUTCH LEVER LOOSE
-
3446002048000 PLASTIC CAP FOR CLUTCH LEVERPLASTIC CAP FOR CLUTCH LEVER
-
3546002043100 ADJUST SCREW CLUTCH LEVERADJUST SCREW CLUTCH LEVER
-
360015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR MIKUNI VM24
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME - SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- • HANDELBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM (MOTOR NR.ENGINE NO. 100 0001 &UP)
- SHIFTING MECHANISM (MOTOR NR/ENGINE NO B65002273 - B65 004044)
- SPECIAL TOOL
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAINSHAFT
