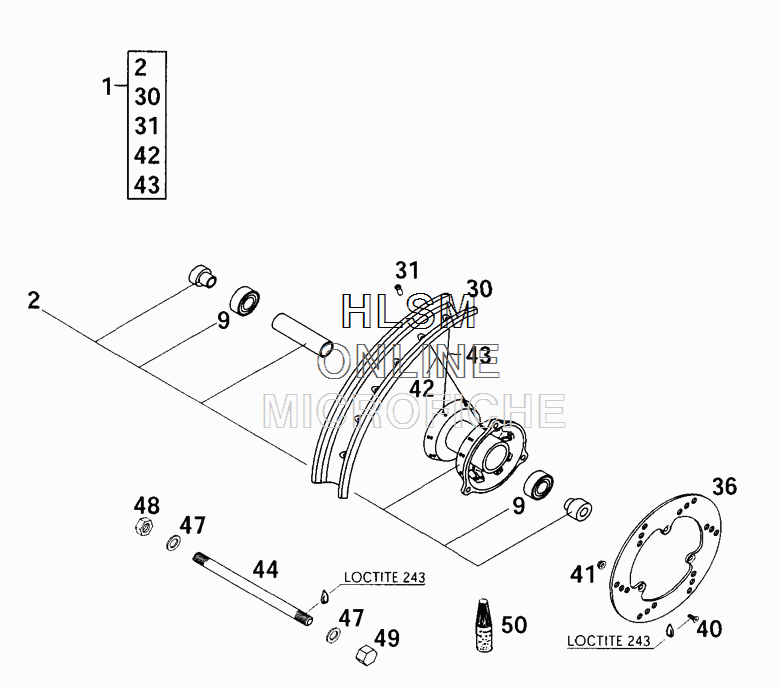

FRONT WHEEL для Ktm 65 SX - 2001 года выпуска
-
№АртикулНазвание
-
146009001144 FR.WHEEL CPL, 1,6X14FR.WHEEL CPL, 1,6X14
-
246009010000 FRONT WHEEL HUB CPL. SILVERFRONT WHEEL HUB CPL. SILVER
-
90625060037 GROOVED BALL BEAR.6003 2RSR.C3GROOVED BALL BEAR.6003 2RSR.C3
-
3046009070000 RIM FRONT 1,6X14 ALURIM FRONT 1,6X14 ALU
-
3146009072000 SPOKE NIPPLE M3,5SPOKE NIPPLE M3,5
-
3646009060000 BRAKE DISK FRONT 198MMBRAKE DISK FRONT 198MM
-
400991060163 FLAT HEAD SCR. DIN7991-M 6X16FLAT HEAD SCR. DIN7991-M 6X16
-
4156509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
4246009071000 SPOKE M3,5X147-15G 14 L/SSPOKE M3,5X147-15G 14 L/S
-
4346009171000 SPOKE M3,5X151-15G 14 R/SSPOKE M3,5X151-15G 14 R/S
-
4446009081000 AXLE FRONT 194MM M12X1AXLE FRONT 194MM M12X1
-
470125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
480934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
490917120103 NUT DIN917-M12X1NUT DIN917-M12X1
-
506899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
