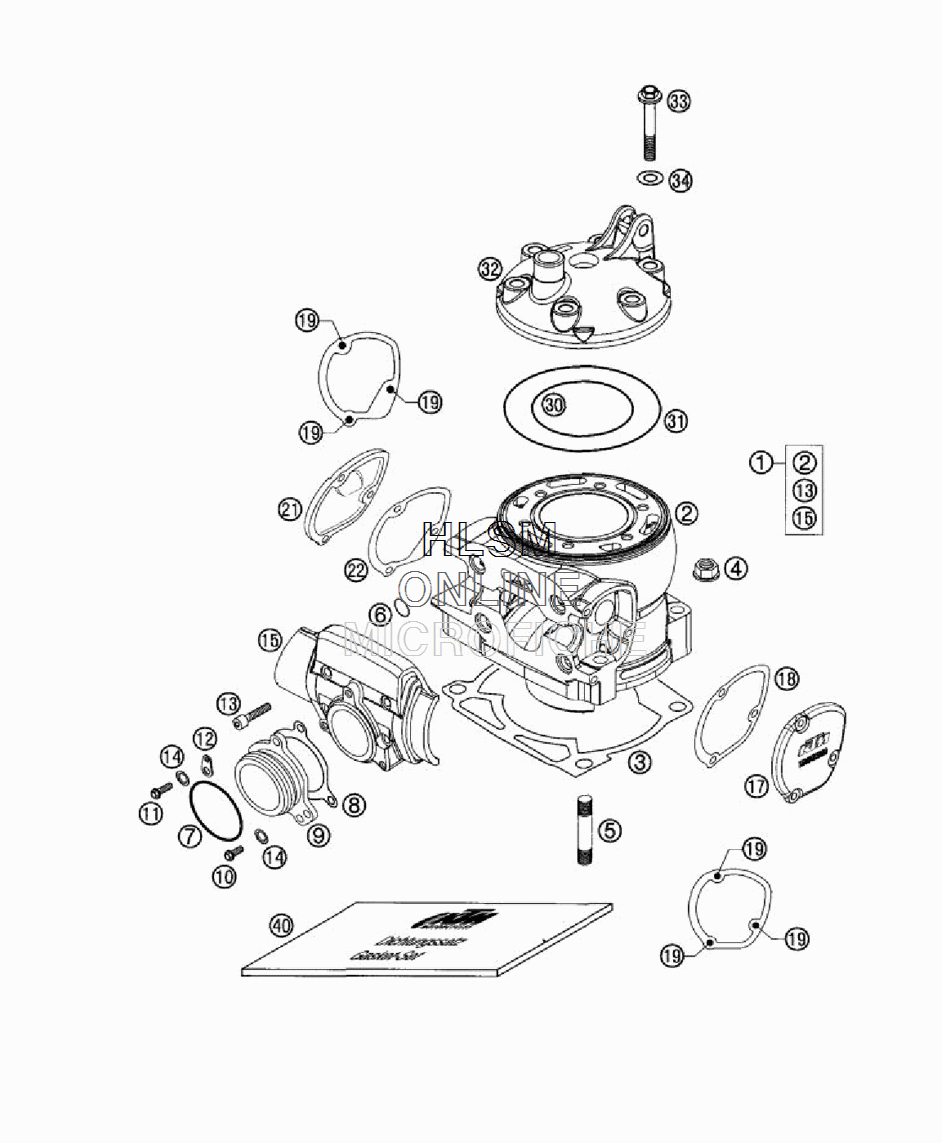

CYLINDER для Ktm 300 MXC - 2002 года выпуска
-
№АртикулНазвание
-
154630205344 CYLINDER 250 CPL.W.FLANGECYLINDER 250 CPL.W.FLANGE
-
154630405244 CYLINDER CPL.W.FLANGECYLINDER CPL.W.FLANGE
-
354630030102 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
354630030104 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
354630030105 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
354630030107 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
454630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
50835100403 STUD DIN0835-M10X40STUD DIN0835-M10X40
-
60770116241 O-RING 11,3 X2,4 SILICONO-RING 11,3 X2,4 SILICON
-
70770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
854630046000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
954605073000 EXHAUST FLANGEEXHAUST FLANGE
-
100015060163 HH COLLAR SCREW M6X16 WS=8HH COLLAR SCREW M6X16 WS=8
-
110015060203 HH COLLAR SCREW M6X20 WS=8HH COLLAR SCREW M6X20 WS=8
-
1251005074000 RETAINING PLATERETAINING PLATE
-
130912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
140137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
175473700500098 CONTROL COVER L/SCONTROL COVER L/S
-
1854737006000 GASKET FOR CONTROL COVER L/SGASKET FOR CONTROL COVER L/S
-
190015050123 HH COLLAR SCREW M5X12 WS=8HH COLLAR SCREW M5X12 WS=8
-
215473700700098 CONTROL COVER R/SCONTROL COVER R/S
-
2254737008000 GASKET FOR CONTROL COVER R/SGASKET FOR CONTROL COVER R/S
-
300770740021 O-RING 74,00X2,00 SILICONO-RING 74,00X2,00 SILICON
-
300770780021 O-RING 78,00X2,00 SILICONO-RING 78,00X2,00 SILICON
-
310770114020 O-RING 114,00X2,00 SILICONO-RING 114,00X2,00 SILICON
-
3254630306700 CYLINDER HEAD "3002"CYLINDER HEAD "3002"
-
3356530079000 SPECIAL SCREW M8X42-10.9SPECIAL SCREW M8X42-10.9
-
3456530080000 CU-SEAL RING 8 X 16 X 1CU-SEAL RING 8 X 16 X 1
-
4054630097000 GASKET SET CYLINDERGASKET SET CYLINDER
