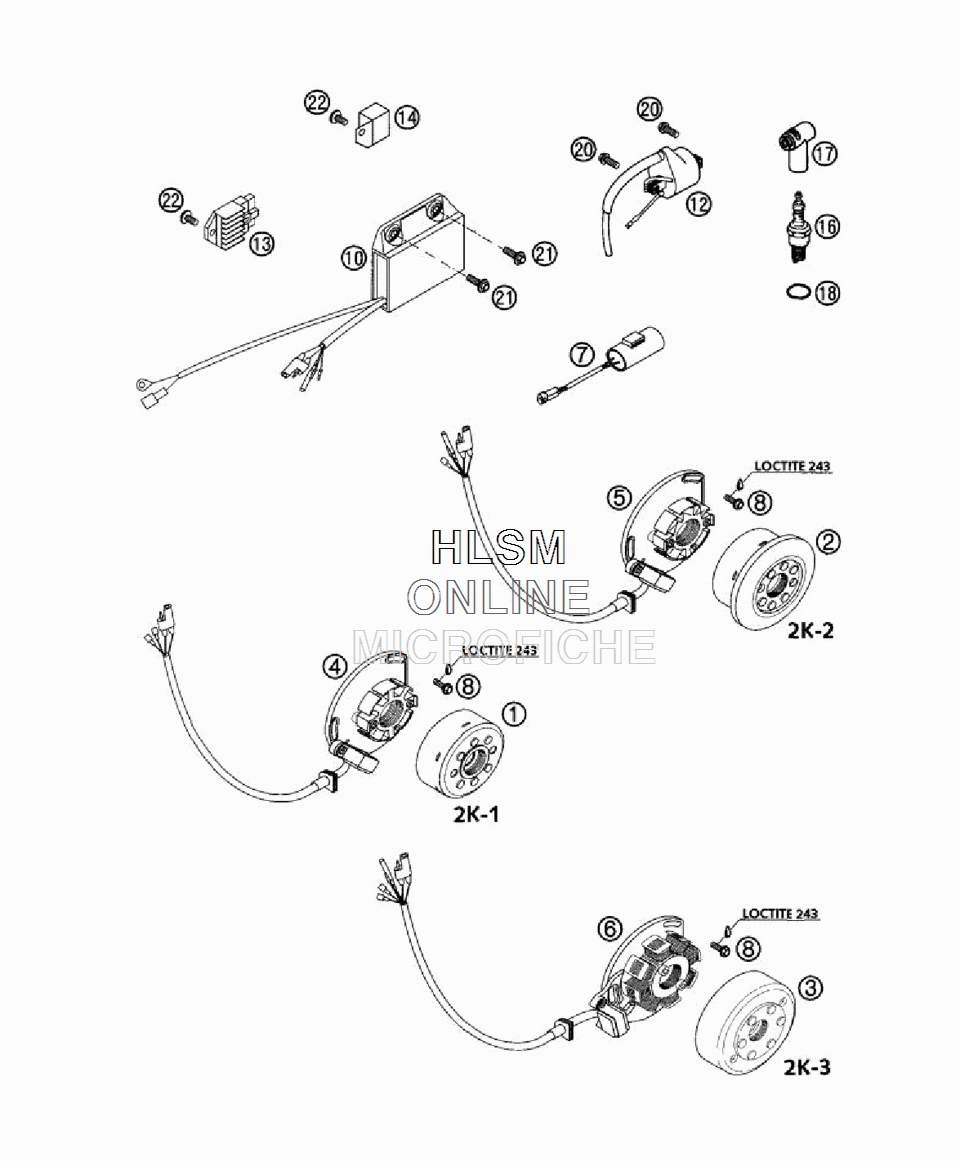

IGNITION SYSTEM KOKUSAN для Ktm 300 MXC - 2002 года выпуска
-
№АртикулНазвание
-
254739005144 FLYWHEEL KOKUSAN 2K-2 CPL.FLYWHEEL KOKUSAN 2K-2 CPL.
-
550339004100 STATOR KOKUSAN 2K-2STATOR KOKUSAN 2K-2
-
750311035000 CONDENSATOR 2200MF ADP-48CONDENSATOR 2200MF ADP-48
-
80015050163 HH COLLAR SCREW M5X16 WS=8HH COLLAR SCREW M5X16 WS=8
-
1054739031200 CDI BOX CU7423CDI BOX CU7423
-
1250339006000 IGNITION COIL KOKU.IGNITION COIL KOKU.
-
1350311034000 VOLTAGE REGULA. 12VVOLTAGE REGULA. 12V
-
1654331093410 SPARK PLUG NGK BR8ECMSPARK PLUG NGK BR8ECM
-
1754531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
180770150040 O-RING 15,00X4,00 NBR 70O-RING 15,00X4,00 NBR 70
-
200015060163 HH COLLAR SCREW M6X16 WS=8HH COLLAR SCREW M6X16 WS=8
-
210014060203 HH COLLAR SCREW M6X20 WS=8HH COLLAR SCREW M6X20 WS=8
-
220015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
