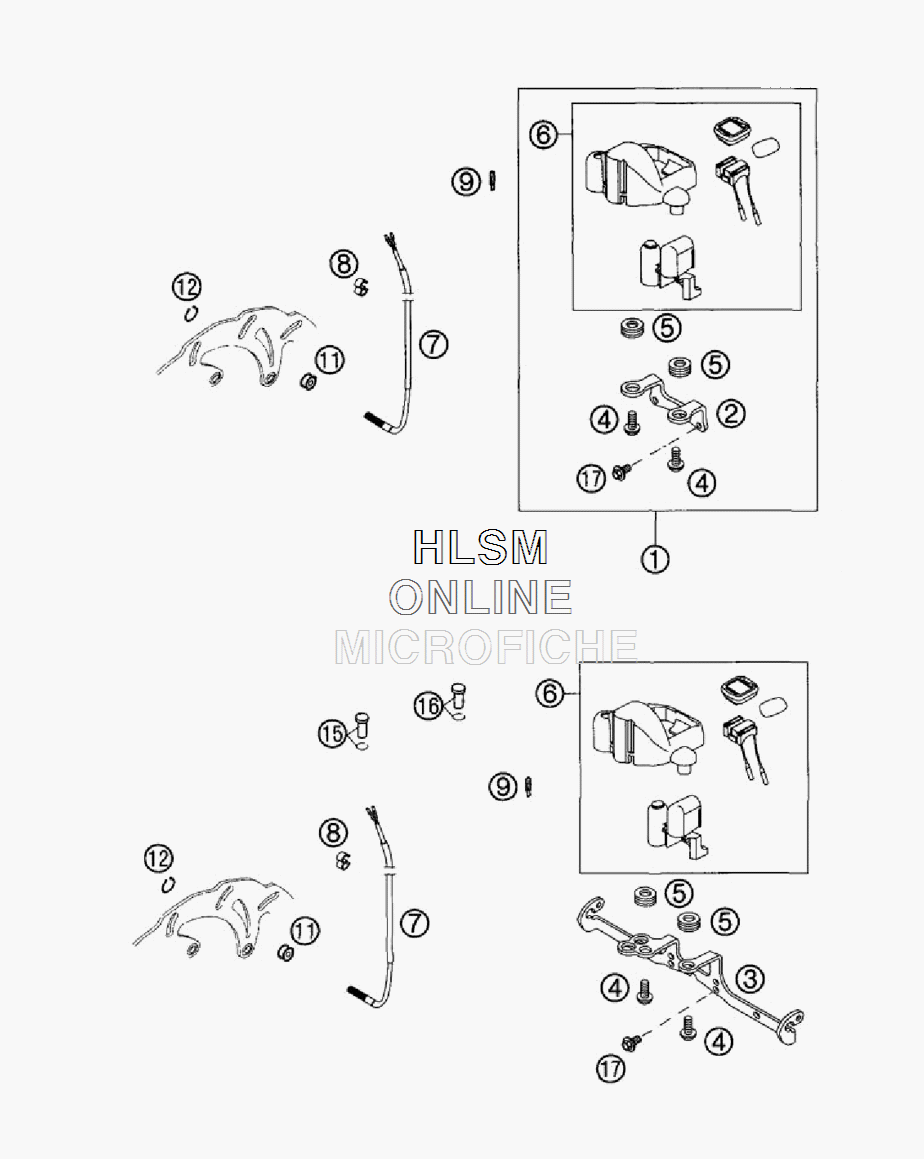

SPEEDOMETER SIGMA SPORT для Ktm 300 MXC - 2002 года выпуска
-
№АртикулНазвание
-
150314065244 SPEEDOMETER CASE CPL.SPEEDOMETER CASE CPL.
-
250314060000 SPEEDOMET.BRACKETSPEEDOMET.BRACKET
-
350314061100 SPEEDOMET..BRACKETSPEEDOMET..BRACKET
-
40016050121 PLASTIC SCREW KA5OX12 PT1411PLASTIC SCREW KA5OX12 PT1411
-
531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
650314069044 SPEEDOM.SIGMASPORT 500 CPL.SPEEDOM.SIGMASPORT 500 CPL.
-
758314069151 CABLE FOR SIGMA 500CABLE FOR SIGMA 500
-
855011022100 CLAMP 6/8MM BLACKCLAMP 6/8MM BLACK
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1150314069050 MAGNET FOR DIGITALSPEEDOM.MAGNET FOR DIGITALSPEEDOM.
-
120471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
1558011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
1658011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
170014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
