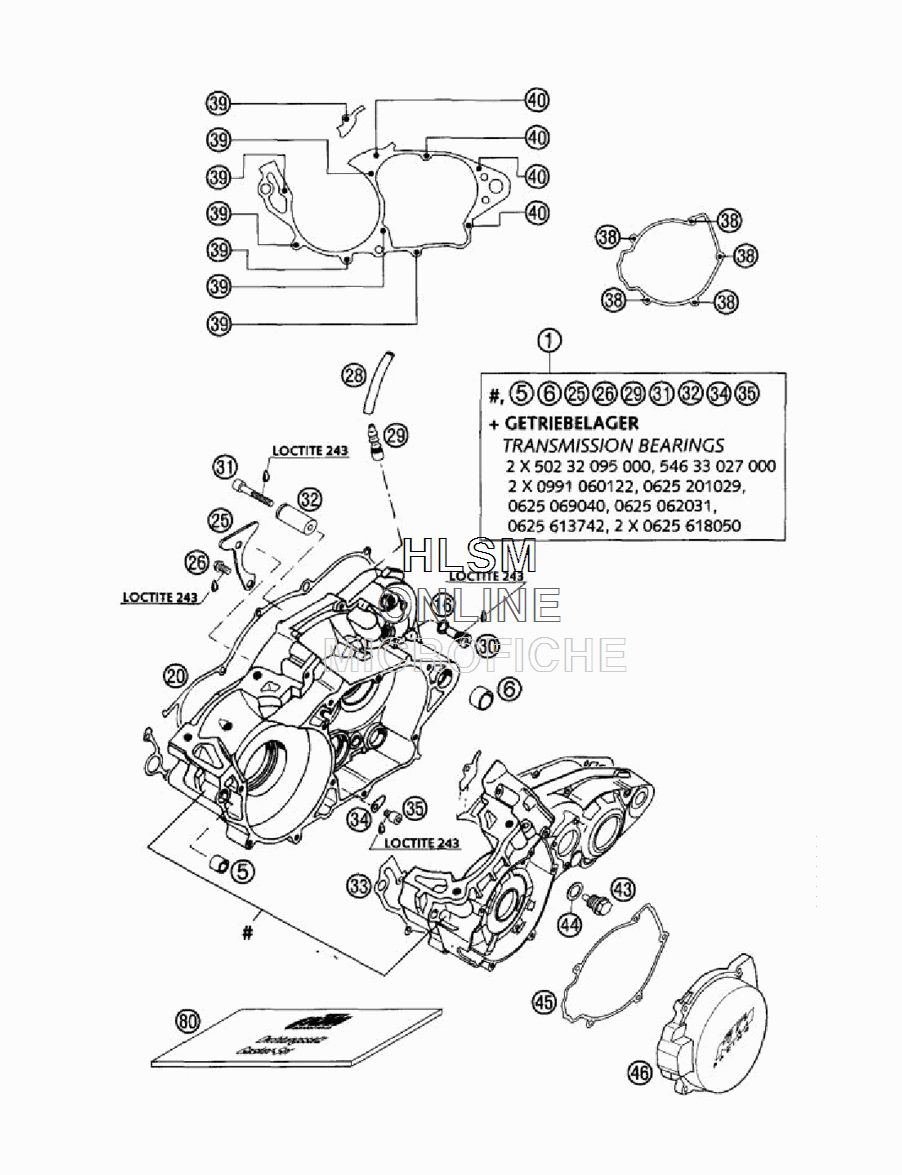

ENGINE CASE для Ktm 300 MXC - 2002 года выпуска

№

Артикул

Название
1

54730000144 ENGINE CASE CPL. W.TRAN.BEAR

ENGINE CASE CPL. W.TRAN.BEAR

148 090 ₽
5

54630027000 DOWEL BUSHING 13,8X11X12

DOWEL BUSHING 13,8X11X12

1 580 ₽
6

50130027000 DOWEL 19 X15,1X12

DOWEL 19 X15,1X12

1 730 ₽
16

58038032110 CU-SEAL RING 9 X 13 X1

CU-SEAL RING 9 X 13 X1

440 ₽
20

54630025100 CLUTCH COVER GASKET 0,5MM

CLUTCH COVER GASKET 0,5MM

4 610 ₽
25

54630017000 RETAINING PLATE

RETAINING PLATE

3 190 ₽
26

0015060123 HH COLLAR SCREW M6X12 WS=8

HH COLLAR SCREW M6X12 WS=8

500 ₽
28

55007016001 PVC-HOSE 7X10 PER METRE

PVC-HOSE 7X10 PER METRE

1 640 ₽
29

54630022000 BLEEDER FLANGE

BLEEDER FLANGE

1 220 ₽
30

54530001150 FLAT HEAD SCREW WITH PIN

FLAT HEAD SCREW WITH PIN

1 730 ₽
31

0912060404 AH SCREW DIN0912-M6X40

AH SCREW DIN0912-M6X40

380 ₽
32

59033018000 BEARING PIN 6X17X44

BEARING PIN 6X17X44

3 210 ₽
33

54630039200 CASE GASKET 0,5MM

CASE GASKET 0,5MM

5 430 ₽
34

54634049000 RETAINING PLATE

RETAINING PLATE

1 000 ₽
35

0912060083 AH SCREW DIN0912-M 6X 8

AH SCREW DIN0912-M 6X 8

270 ₽
38

0015050163 HH COLLAR SCREW M5X16 WS=8

HH COLLAR SCREW M5X16 WS=8

410 ₽
39

0015060453 HH COLLAR SCREW M6X45 WS=8

HH COLLAR SCREW M6X45 WS=8

470 ₽
40

0015060603 HH COLLAR SCREW M6X60 WS=8

HH COLLAR SCREW M6X60 WS=8

560 ₽
43

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
44

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
45

54730040100 IGNIT.COVER GASKET 0,5MM

IGNIT.COVER GASKET 0,5MM

2 570 ₽
46

5473000210098 IGNITION COVER

IGNITION COVER

10 250 ₽
80

54630099000 GASKET SET

GASKET SET

54 850 ₽
