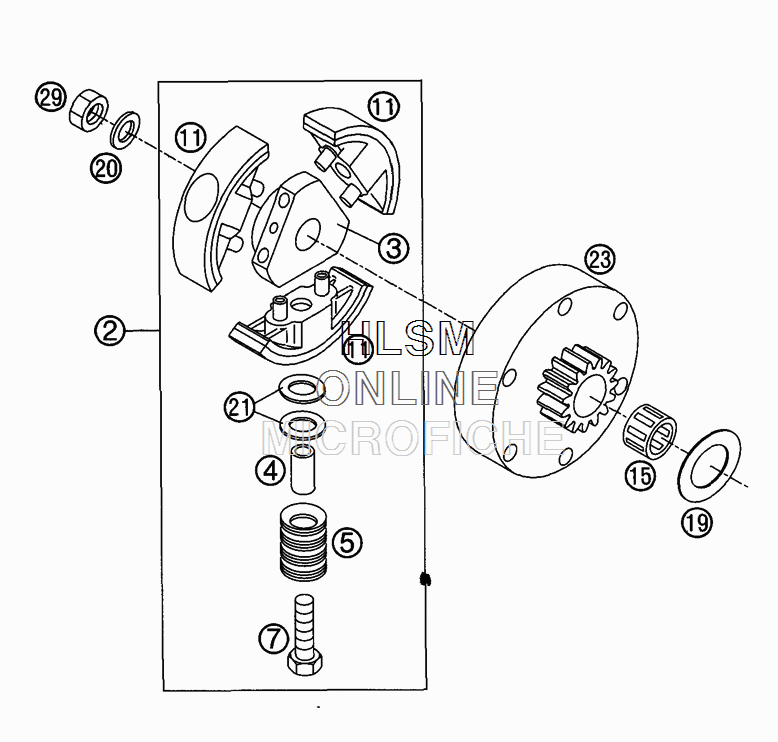

CLUTCH для Ktm 50 SX Sr Adventure - 2002 года выпуска
-
№АртикулНазвание
-
245132502044 CLUTCH CPL.CLUTCH CPL.
-
345132002000 CLUTCH HUBCLUTCH HUB
-
445132504000 SPACER 6X8,1X13,5SPACER 6X8,1X13,5
-
545132005000 CLUTCH SPRING 2001CLUTCH SPRING 2001
-
70933060205 HH SCREW DIN933 M6X20HH SCREW DIN933 M6X20
-
1145132011100 CLUTCH BLOCK 50 LC 2002CLUTCH BLOCK 50 LC 2002
-
1545132015000 NEEDLE BEARING 15X18X17NEEDLE BEARING 15X18X17
-
1945132020030 SPACER WASHER 15X25X0,3SPACER WASHER 15X25X0,3
-
1945132020040 SPACER WASHER 15X25X0,4SPACER WASHER 15X25X0,4
-
1945132020060 SPACER WASHER 15X25X0,6SPACER WASHER 15X25X0,6
-
1945132020080 SPACER WASHER 15X25X0,8SPACER WASHER 15X25X0,8
-
2045132020000 WASHER 10,4X16,8X0,4WASHER 10,4X16,8X0,4
-
2145132120000 WASHER 8X15,3X0,5WASHER 8X15,3X0,5
-
2145132120100 WASHER 8X15,3X1WASHER 8X15,3X1
-
2345132023016 CLUTCH DRUM 16-TCLUTCH DRUM 16-T
-
2945130029000 SPECIAL NUT 10X1,25X8SPECIAL NUT 10X1,25X8
Все узлы модели:
- ACCESSORIES
- CARBURETOR DELLORTO 1`4
- • CLUTCH
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRONT AND REAR WHEEL
- FRONT FORK
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- KICKSTARTER - BACKWARDS OPERATION
- MASK W/ FENDERS
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
