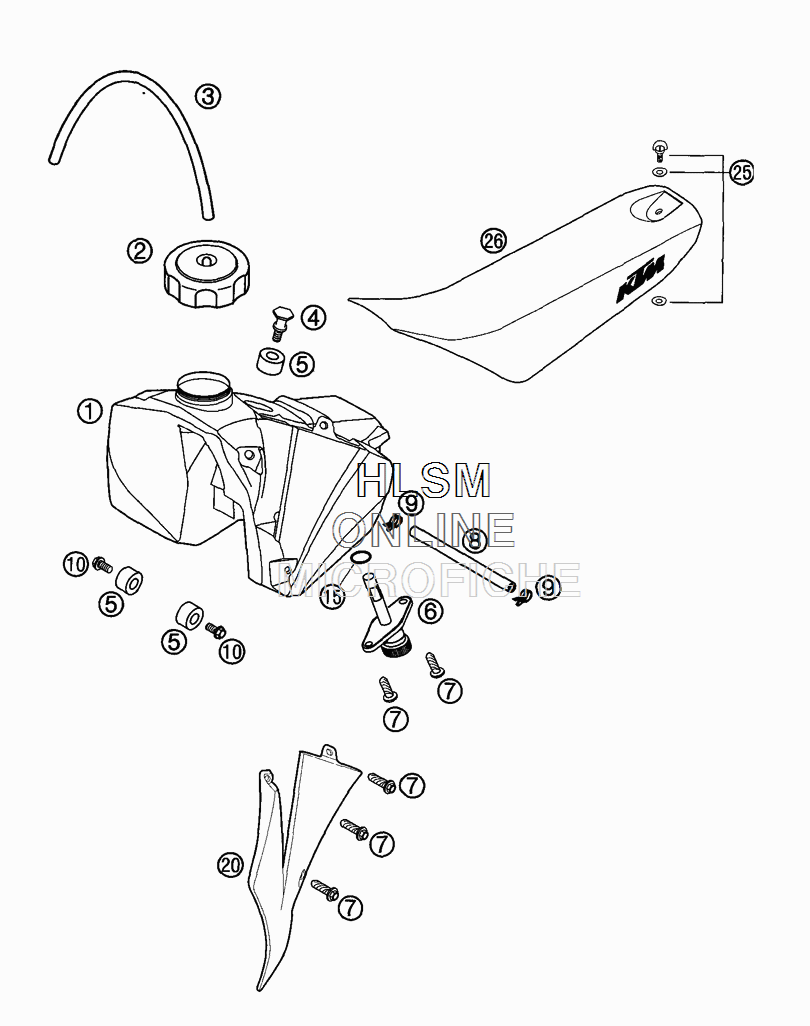

TANK - SEAT - COVER для Ktm 50 SX Sr Adventure - 2002 года выпуска
-
№АртикулНазвание
-
145107113000 FUEL TANKFUEL TANK
-
249007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
331007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
445107011000 TANK SCREWTANK SCREW
-
550307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
658507003000 FUEL COCK CPL. SMALL RALLYEFUEL COCK CPL. SMALL RALLYE
-
70017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
858307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
958007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
100015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
1555007006200 O-RING 11X1,8 NBR 70O-RING 11X1,8 NBR 70
-
204510805000004 SPOILER LEFTSPOILER LEFT
-
204510805100004 SPOILER RIGHTSPOILER RIGHT
-
2545007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
2645107040100 SEAT ADV. JUN/SEN "AC"SEAT ADV. JUN/SEN "AC"
Все узлы модели:
- ACCESSORIES
- CARBURETOR DELLORTO 1`4
- CLUTCH
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRONT AND REAR WHEEL
- FRONT FORK
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- KICKSTARTER - BACKWARDS OPERATION
- MASK W/ FENDERS
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- • TANK - SEAT - COVER
- TRANSMISSION
