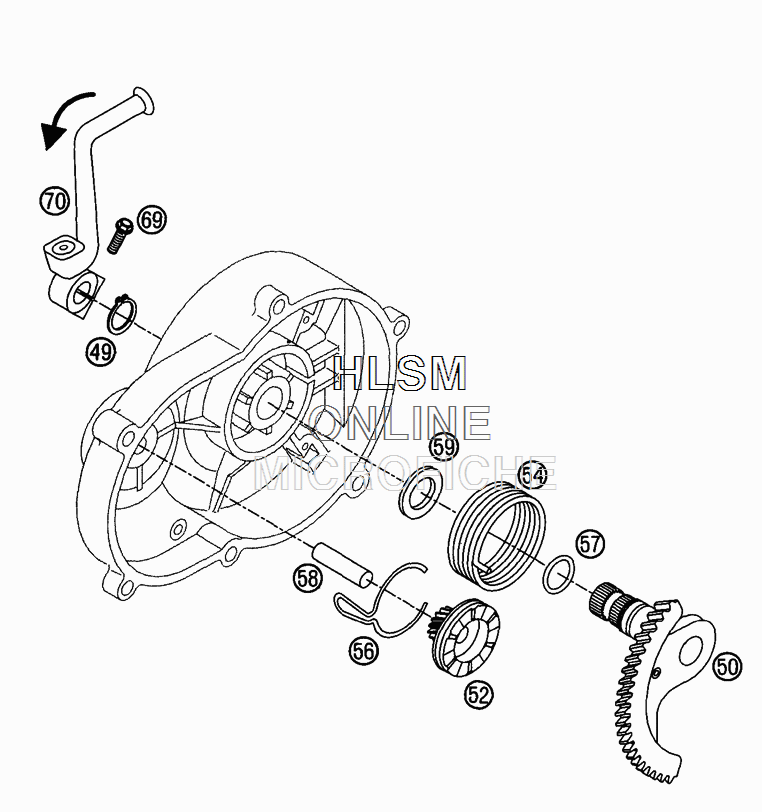

KICKSTARTER для Ktm 50 SX Sr Adventure - 2002 года выпуска
-
№АртикулНазвание
-
490471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
5045133050000 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
5245133052000 KICKSTARTER SLEEVEKICKSTARTER SLEEVE
-
5445133054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
5645133056000 KICKSTARTER SLEEVE SPRINGKICKSTARTER SLEEVE SPRING
-
5745133057000 O-RING 12,5X1,5O-RING 12,5X1,5
-
5845133058000 PIN FOR KICKSTARTER SLEE.PIN FOR KICKSTARTER SLEE.
-
5945133059000 WASHER 16X25X1WASHER 16X25X1
-
690015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
7045133070000 KICKSTARTER 50CCMKICKSTARTER 50CCM
