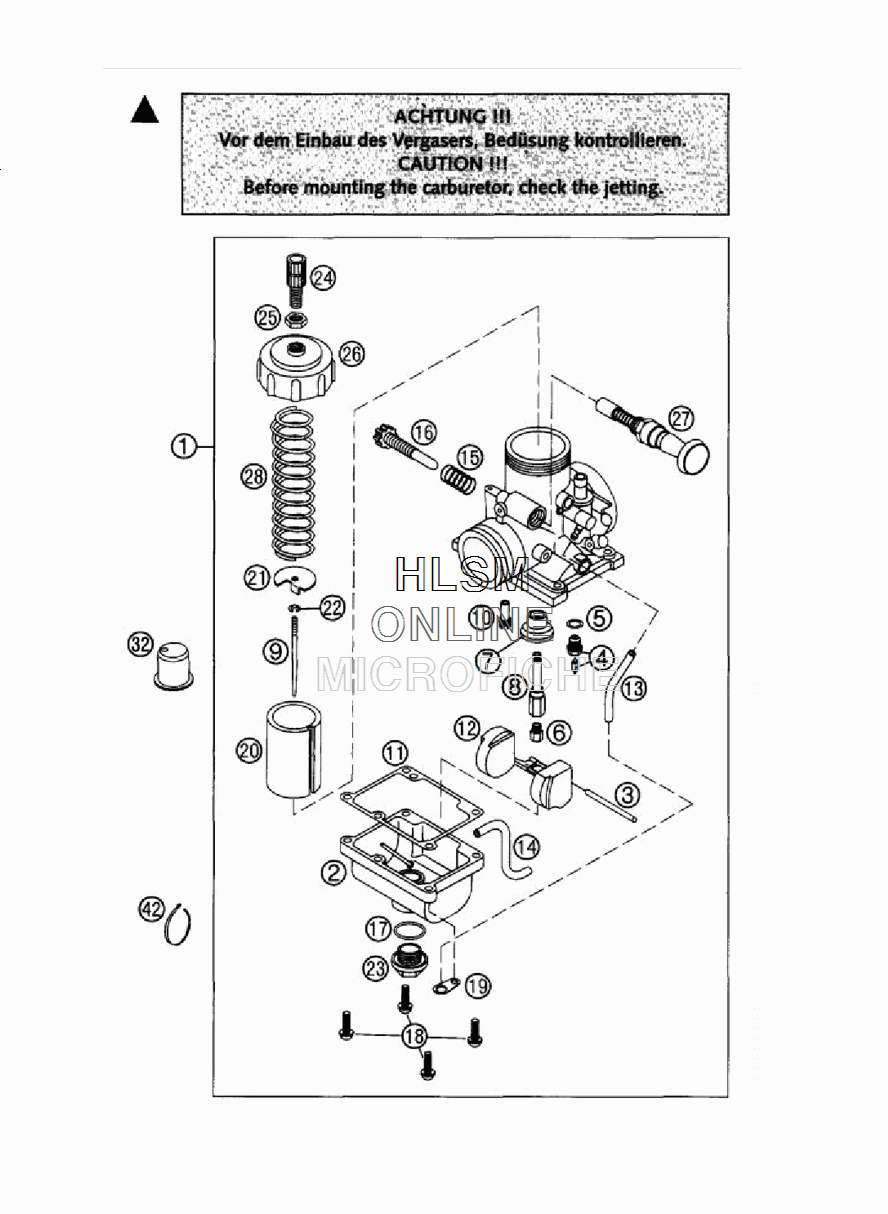

CARBURETOR MIKUNI VM24 для Ktm 65 SX - 2002 года выпуска
-
№АртикулНазвание
-
146031001044 CARBURETOR MIK. VM24-489CARBURETOR MIK. VM24-489
-
246031011000 FLOAT BODY 5-1 VM24FLOAT BODY 5-1 VM24
-
345031008000 PIN 2,5X27PIN 2,5X27
-
446031020000 NEEDLE VALVE CPL. VM24NEEDLE VALVE CPL. VM24
-
546031018000 GASKET NEEDLE VALVE 9,1X12X0,5GASKET NEEDLE VALVE 9,1X12X0,5
-
645031023195 MAIN JET 195MAIN JET 195
-
645031023200 MAIN JET 200MAIN JET 200
-
645031023205 MAIN JET 205MAIN JET 205
-
746031074000 BUFFLEBUFFLE
-
846031021000 NEEDLE JET N-8NEEDLE JET N-8
-
945031034200 JET NEEDLE MIKUNI 5114JET NEEDLE MIKUNI 5114
-
1045031007030 IDLING JET 30 MIKUNIIDLING JET 30 MIKUNI
-
1145031010100 GASKET FLOAT BOWLGASKET FLOAT BOWL
-
1246031009000 FLOAT VM24FLOAT VM24
-
1352031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
1452031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
1545031015100 SPRING MIKUNISPRING MIKUNI
-
1646031019000 THROTTLE VALVE SCREW M6X30THROTTLE VALVE SCREW M6X30
-
1746031043000 O-RING 17,5X1,4O-RING 17,5X1,4
-
1845031014000 LENTIL HEAD SCREW M4X14 (SET)LENTIL HEAD SCREW M4X14 (SET)
-
1954531612000 BRACKET D7BRACKET D7
-
2046031035000 THROTTLE VALVE 2.0THROTTLE VALVE 2.0
-
2146031032000 HOLDING WASHERHOLDING WASHER
-
2245031045000 SPRINGSPRING
-
2346031014000 PLUG SCREW M16 WS=17PLUG SCREW M16 WS=17
-
2457031525000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
2552031126000 HEXAGON NUT M 6X0,75 DIN0439HEXAGON NUT M 6X0,75 DIN0439
-
2646031027000 CARBURETOR COVER VM24CARBURETOR COVER VM24
-
2746031048044 COLD STARTER KNOB CPL. VM24COLD STARTER KNOB CPL. VM24
-
2846031030000 THROTTLE VALVE SPRING VM24THROTTLE VALVE SPRING VM24
-
3246131090000 WEIGHT F. THROTT.VALVEWEIGHT F. THROTT.VALVE
-
4244011076100 CABLE TIE 100MMCABLE TIE 100MM
